Rexroth R150234084 Flanged Single NUT
Neu
Auf Lager2 EinheitenVersandbereit
Flanschmutter Einzeln FEM-E-B mit Rechtsgewinde, Nennmaß 32mm, hohe Tragfähigkeit und präzisem Design für Linearbewegungsanwendungen.
BallComponentFEM-E-BflangedHighIndustrialleadLinearload-bearingMotionnutPrecisionR150234084RexrothRight-HandscrewSingle
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

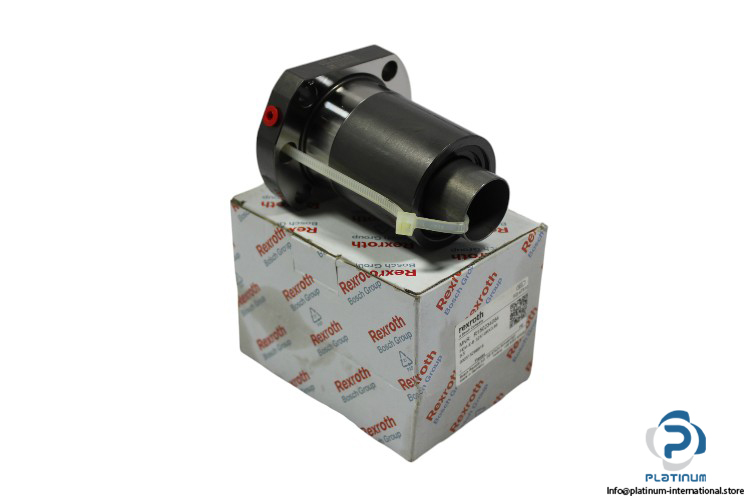

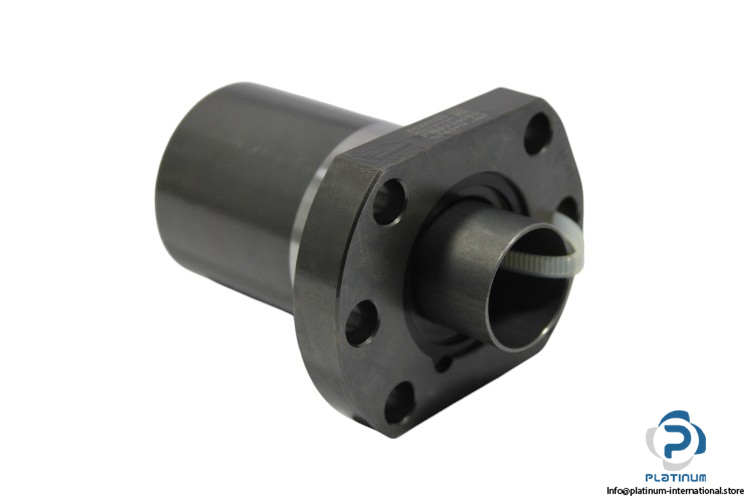

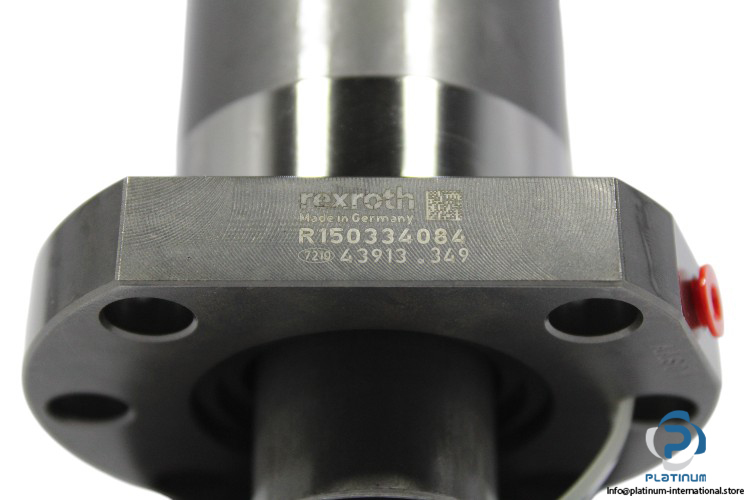

Rexroth R150234084 FLANGED SINGLE NUT FEM-E-B
The Rexroth R150234084 FLANGED SINGLE NUT FEM-E-B is a high-precision ball screw nut designed for demanding linear motion applications. Featuring a robust flange design, high load capacity, and smooth right-hand lead operation, this component ensures durability and efficiency in industrial automation systems.
Manufacturer: Rexroth
Type: FLANGED SINGLE NUT FEM-E-B
MNR: R150234084

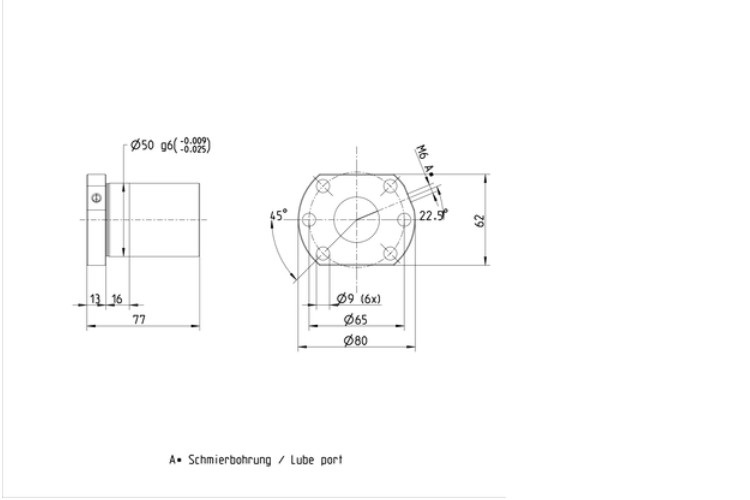

Dimensions
Load Ratings & Performance
| Size | 32 X 10 R X 3.969 - 5 |
| Nominal Diameter (dâ‚€) | 32 mm |
| Ball Diameter (DW) | 3.969 mm |
| Number of Ball Track Turns (i) | 5 |
| Lead (P) | 10R |
| Direction of Lead | Right |
| Flange Diameter | 80 mm |
| Nut Outer Diameter | 50 mm |
| Nut Length | 77 mm |
| Flange Thickness | 13 mm |
| Cutting Flange Width | 62 mm |
| Dynamic Load Rating (C) | 38,000 N |
| Static Load Rating (Câ‚€) | 58,300 N |
| Maximum Permissible Linear Speed (vmax) | 47 m/min |
| Operating Temperature | -10 °C to +80 °C |
