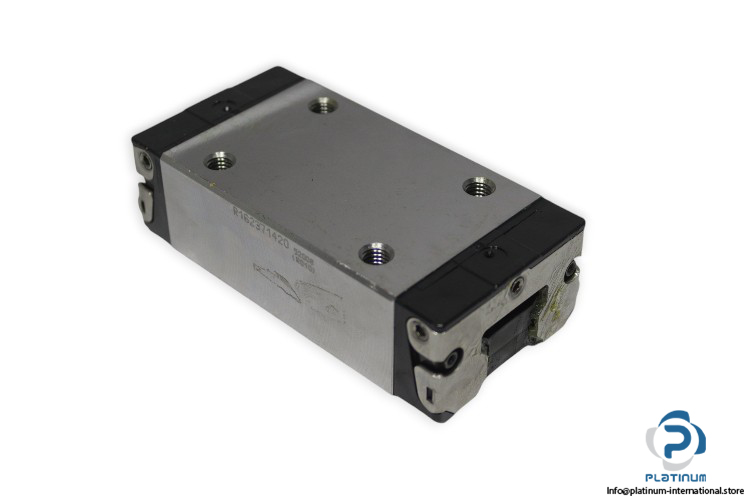

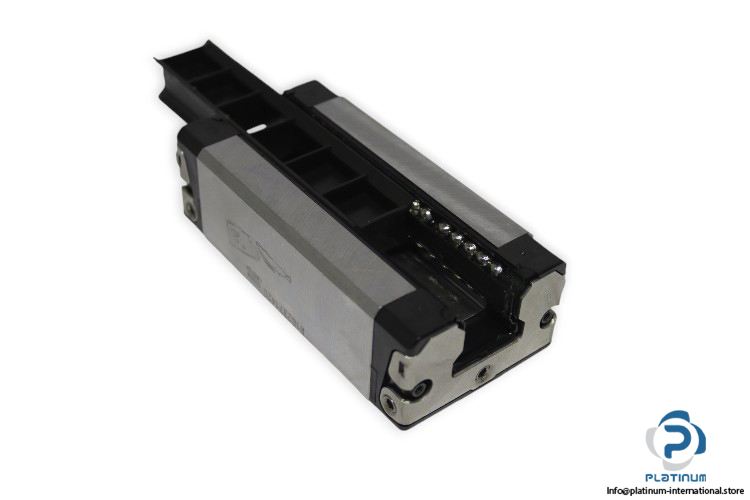

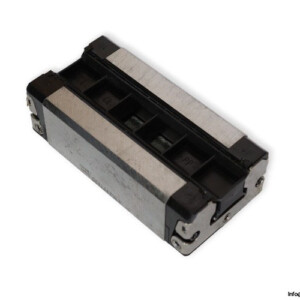

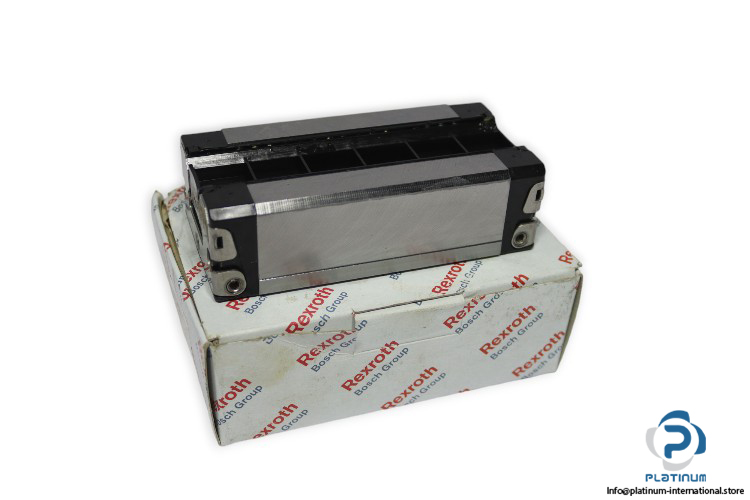

Rexroth R162371420 Ball Runner Block

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK SLS

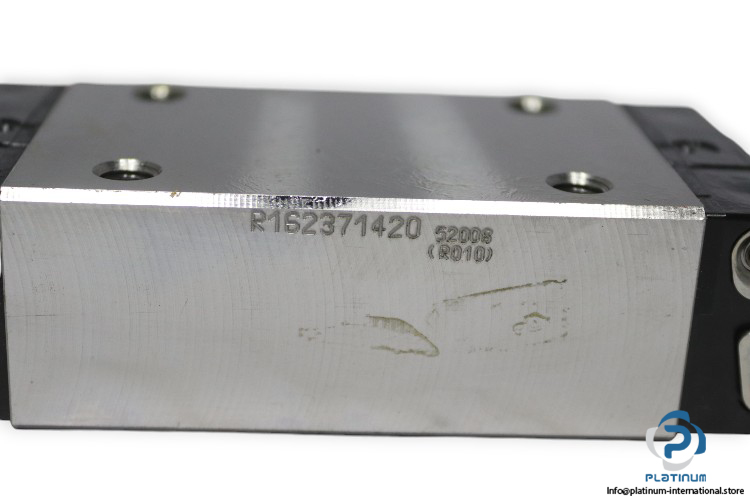

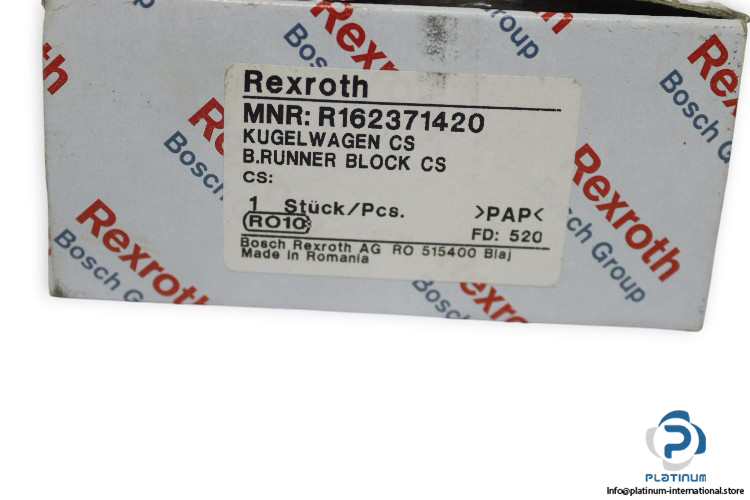

MNR: R162371420

Size: 30 mm

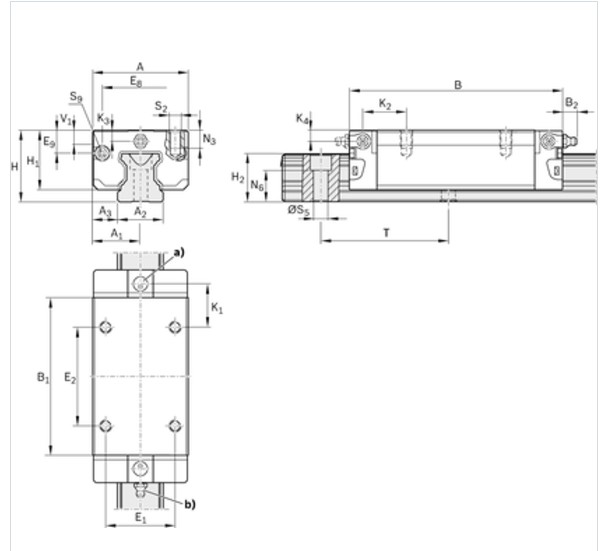

Dimensions
Width (A): 60 mm
Length (B): 119.7 mm
Height of runner block: 35.35 mm
Height runner block with guide rail: 42 mm
E1: 40 mm
E2: 60 mm
Format: SLS – slimline, long, standard height
Material (profiled rail systems): Carbon steel
Dynamic Load Capacity C: 46000 N
Static Load Capacity C₀ : 66900 N
Max. acceleration a max: 500 m/s²
Maximum permissible linear speed v max: 5 m/s
Dynamic Torsional Moment Load Capacity M_t: 800 Nm
Static torsional moment load capacity Mt0: 1160 Nm
Dynamic longitudinal moment load capacity ML: 740 Nm
Static longitudinal moment load capacity ML0: 1080 Nm
Accuracy Class: N – Normal
Preload Class: C1 – Low preload
Seal: SS – Standard seal
