Rexroth R165119320 Ball Runner Block

Manufacturer: Rexroth
Type: BALL RUNNER BLOCK FNS
MNR: R165119320

Size: 15 mm

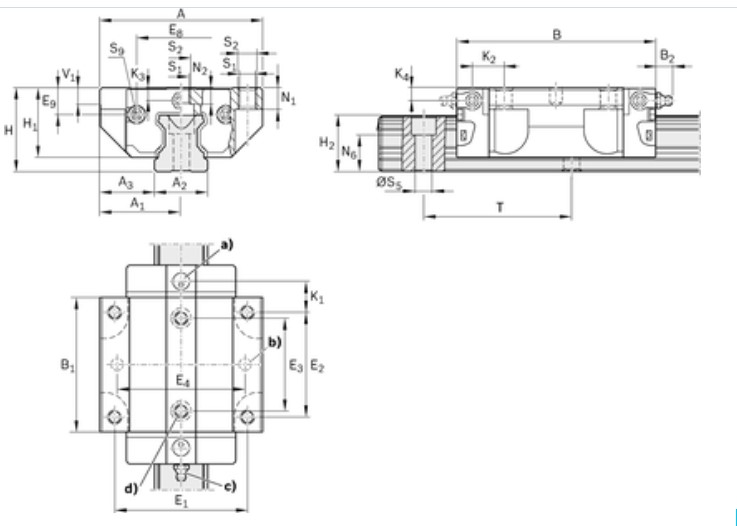

Dimensions
Width (A): 47 mm
Length (B): 58.2 mm
Height of system(H): 24 mm
Height of block (H₁): 19.9 mm
E1: 38 mm
E2: 30 mm
Format: FNS – Flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 9860 N
Static Load Capacity C₀ : 12700 N
Dynamic Torsional Moment Load Capacity M_t: 95 Nm
Mt0:  120 Nm
Dynamic longitudinal moment load capacity ML: 68 Nm
Static longitudinal moment load capacity ML0: 87 Nm
Accuracy Class: H – Highly accurate
Preload Class: C0 – Without preload (clearance)
Admissible Operating Temperature: -10 °C … +80 °C
