Bearings Linear Motion

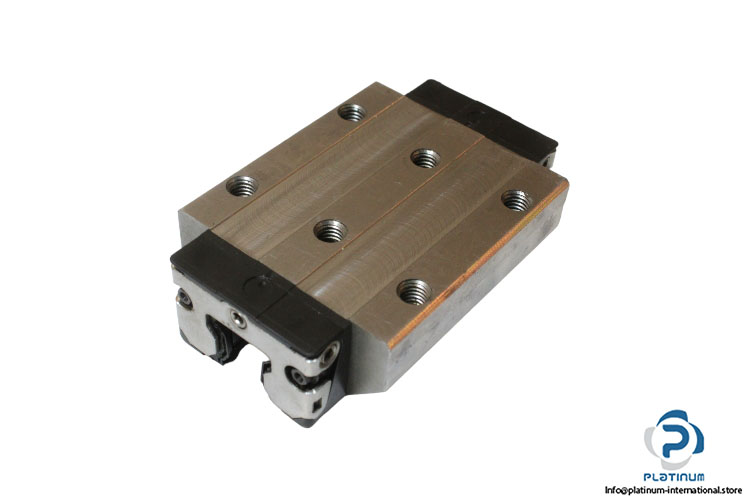

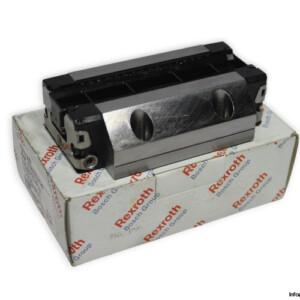

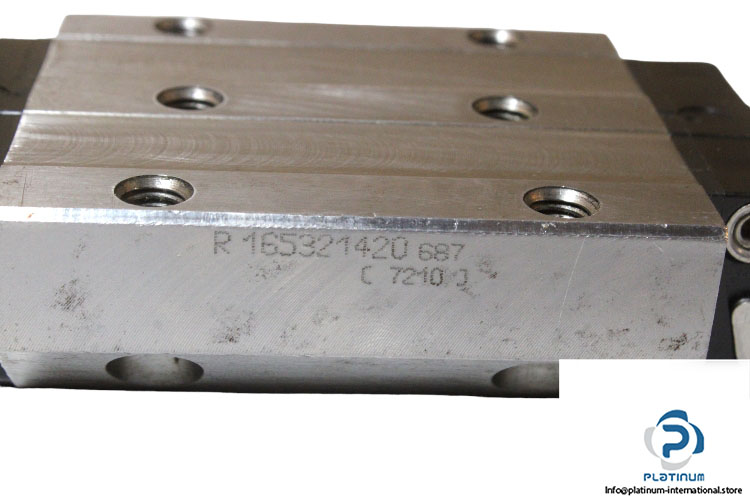

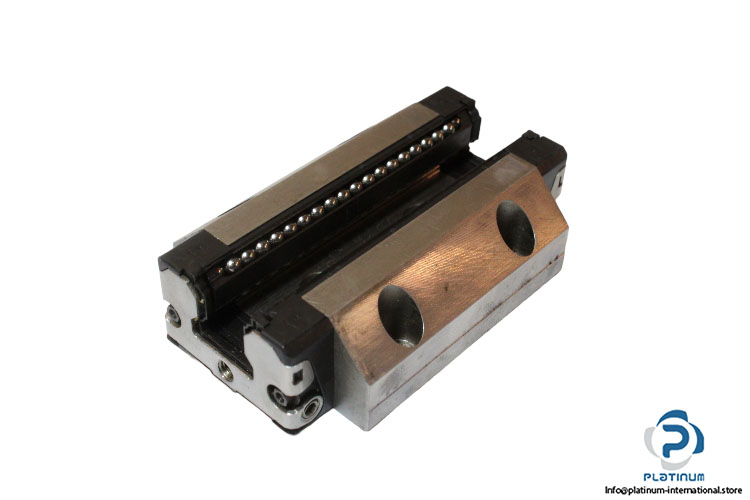

Rexroth R165321420 Ball Runner Block FLS

Name: REXROTH R165321420 BALL RUNNER BLOCK FLS
SKU: 1002117
Price: 98.99 USD
Availability: InStock

rexroth-R165321420-ball-runner-block-FLS-used

rexroth-r165321420-ball-runner-block-fls-used-1

rexroth-r165321420-ball-runner-block-fls-used-2

rexroth-r165321420-ball-runner-block-fls-used-3

Gebraucht

Auf Lager8 EinheitenVersandbereit

98,99$

Kugellaufblock Präzision Bosch Rexroth FLS Kugellaufblock (Größe 25 mm) für Linearsysteme mit hoher Tragfähigkeit, sanfter Bewegung und langlebiger Kohlenstoffstahlkonstruktion.

Hersteller

REXROTH

SKU

1002117

Kategorie

Linear Motion

Zustand

Gebraucht

25 Ball bearing Block Bosch FLS Guide Industrial KWD Linear Motion Precision Rexroth Runner Size

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Bosch Rexroth 1653-214-20 Ball Runner Block FLS

The Bosch Rexroth 1653-214-20 Ball Runner Block is a precision linear motion bearing block designed for high-performance linear guide systems. Built with durable carbon steel construction and a flanged long design, it provides excellent rigidity, high load capacity, and smooth motion accuracy for demanding industrial automation and machine applications.

Manufacturer: Bosch Rexroth

Type: Ball Runner Block FLS

MNR: 1653-214-20

Bearing No.: 7210

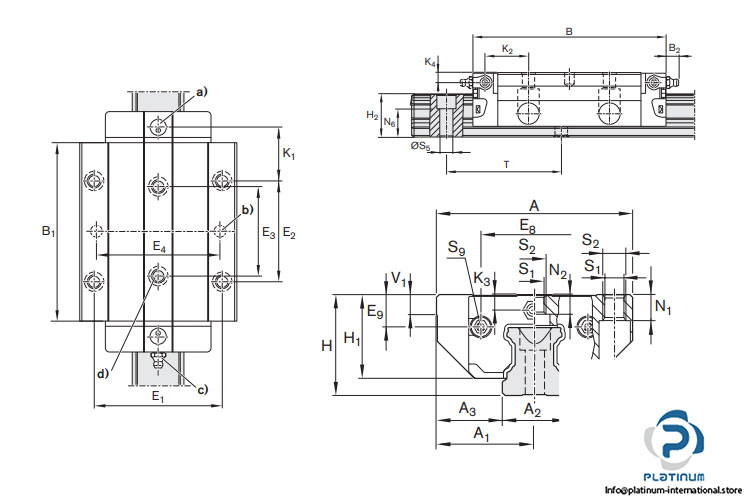

Dimensions

Size	25 mm
Mechanical Format	KWD
Design	FLS “ Flanged, Long, Standard Height
Material Format	CS “ Carbon Steel
Maximum Acceleration (amax)	500 m/s²
Maximum Permissible Speed (vmax)	5 m/s
Dynamic Load Capacity (C)	37,300 N
Static Load Capacity (C0)	52,500 N
Dynamic Torsional Moment Load (Mt)	530 Nm
Dynamic Longitudinal Moment Load (ML)	530 Nm
Accuracy Class	N “ Normal
Preload Class	C1 “ Low
Width (A)	70 mm
Length (B)	107.9 mm
Height (H)	36 mm
Block Height	29.9 mm
E1	57 mm
E2	45 mm
Admissible Operating Temperature	-10 to +80 °C
Linear Note	We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing.
Recommendation	Pair this Bosch Rexroth ball runner block with a matching precision linear guide rail to achieve optimal rigidity, accuracy, and long service life in your linear motion system.
