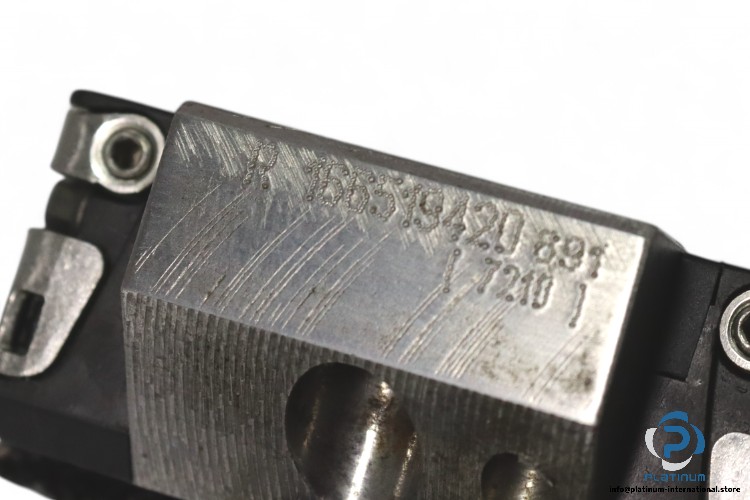

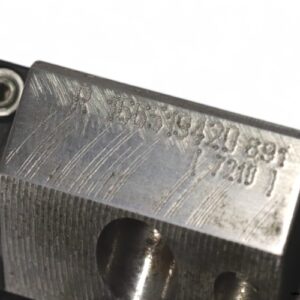

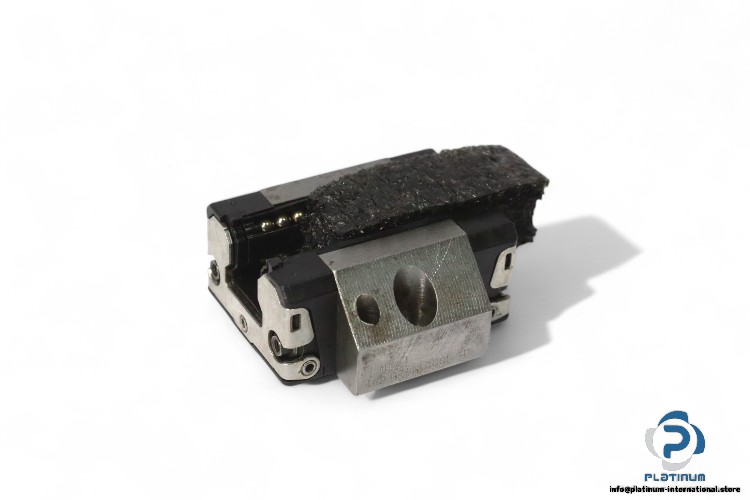

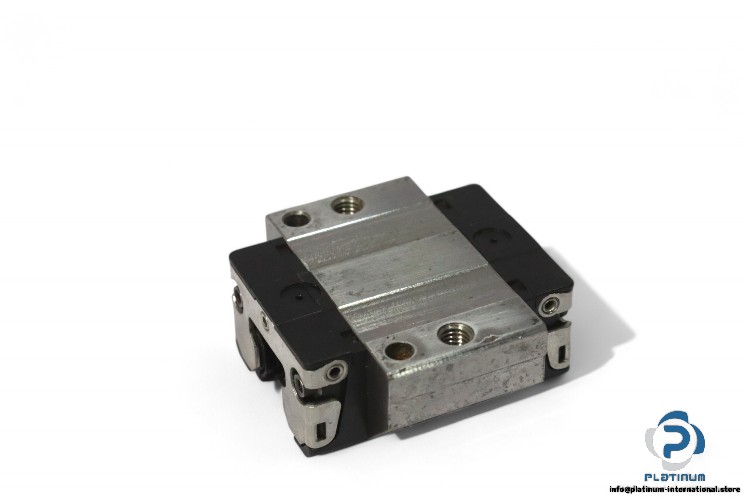

Rexroth R166519420 Ball Runner Block

Manufacturer: Rexroth
Type: BALL RUNNER BLOCK FKS
MNR: R166519420

Size: 15 mm

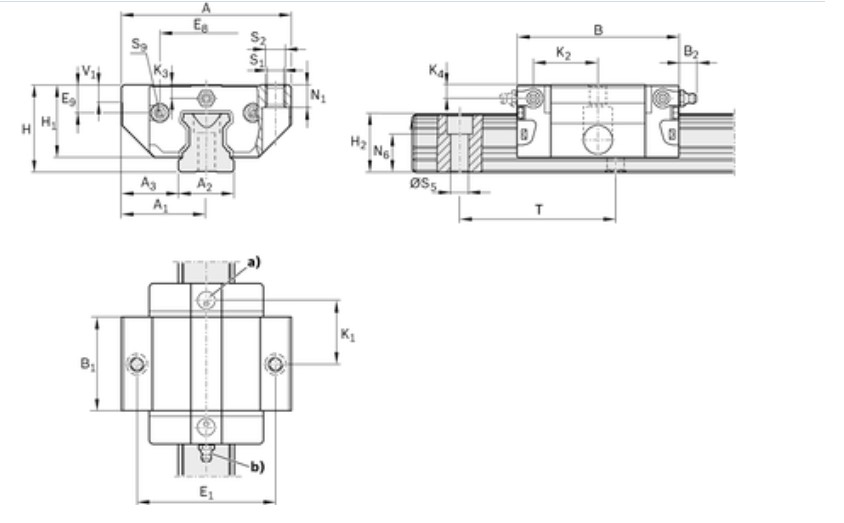

Dimensions
Width (A): 47 mm
Length (B): 44.7 mm
Height of system(H): 24 mm
Height of block (H₁): 19.90 mm
E1: 38 mm
Format: FKS, flange, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 6720 N
Permissible load Fmax: 7340 N
Dynamic Torsional Moment Load Capacity M_t:  65 Nm
Static torsional moment load capacity Mt0: 71 Nm
Dynamic longitudinal moment load capacity ML: 29 Nm
Static longitudinal moment load capacity ML0: 32 Nm
Preload Class: C0 – Without preload
Accuracy Class: N – Normal
Admissible Operating Temperature: -10 °C … +80 °C
