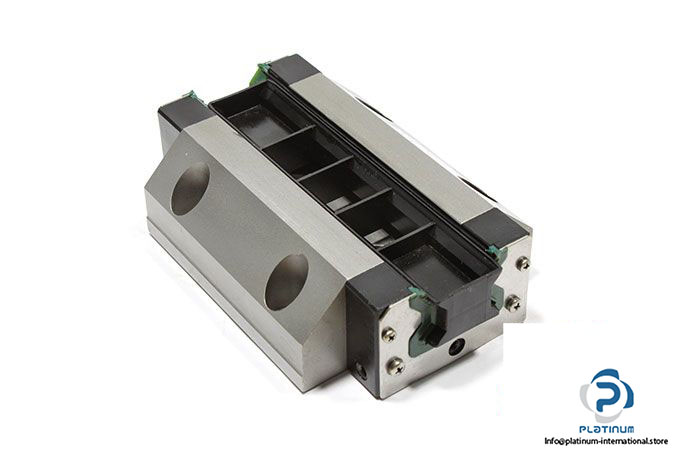

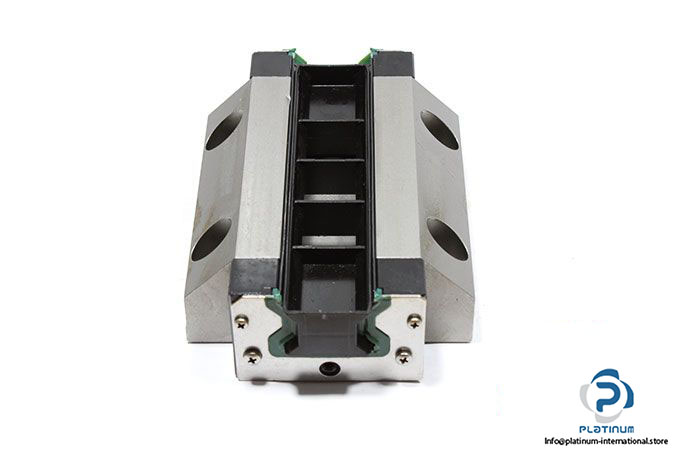

Rexroth R185332210 Roller Runner Block FLS

Manufacturer: Bosch Rexroth

Type: Roller Runner Blocks FLS

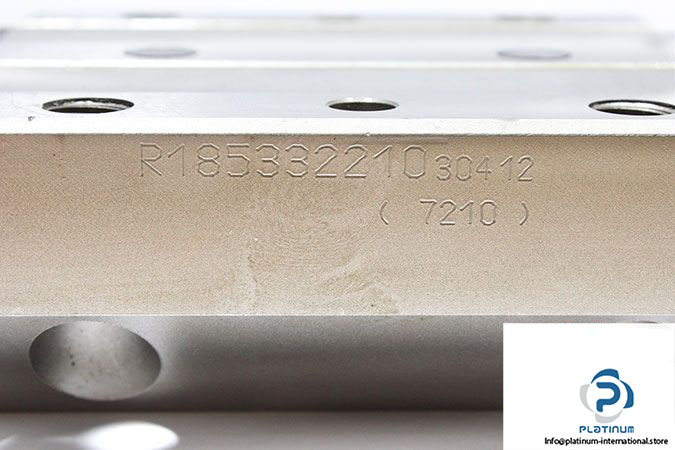

MNR: R1853 322 10

Size: 35 mm

Mechanical Format: RWA

Design: FLS – Flange, Long, Standard

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 74900 N

Static Load Capacity C₀ : 155400 N

Dynamic Torsional Moment Load Capacity M_t:  1490 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1220 Nm

Accuracy Class: P

Preload Class: C2

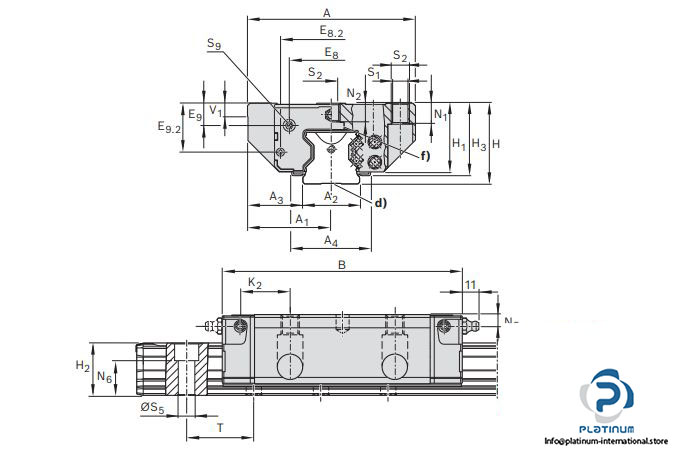

Dimensions

Width (A): 100 mm

Length (B): 142 mm

Height (H): 48 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 2.24 kg
