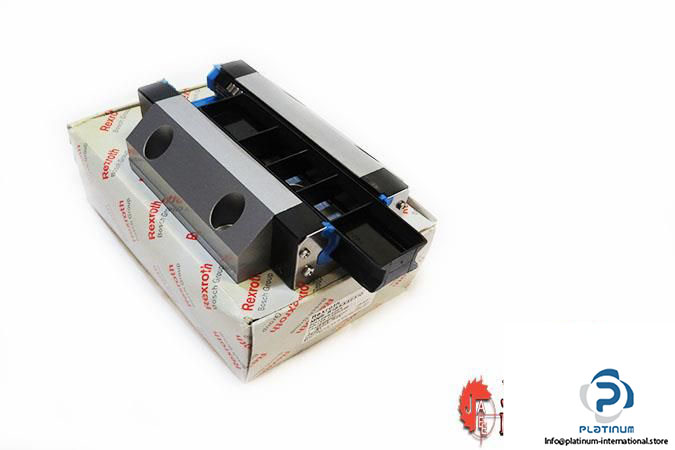

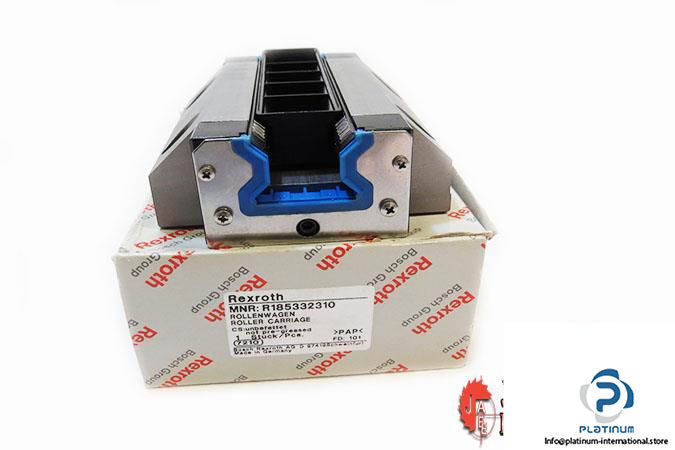

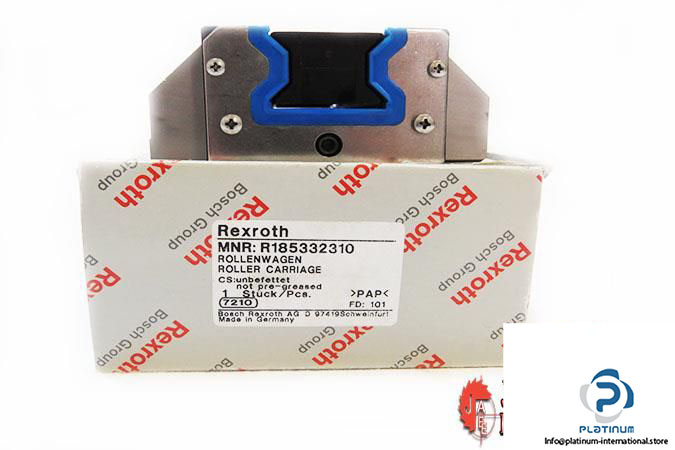

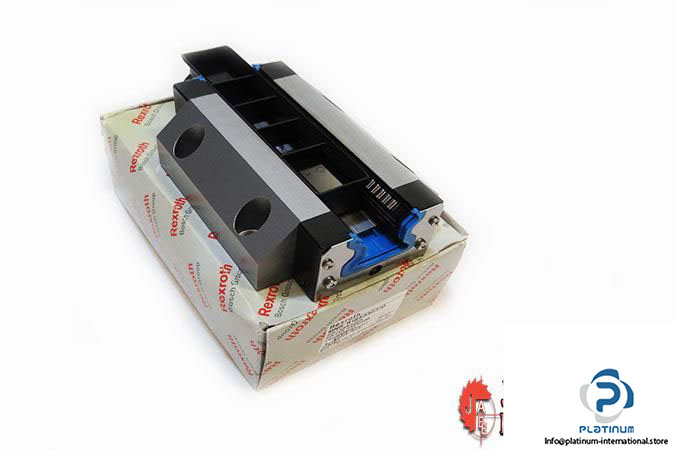

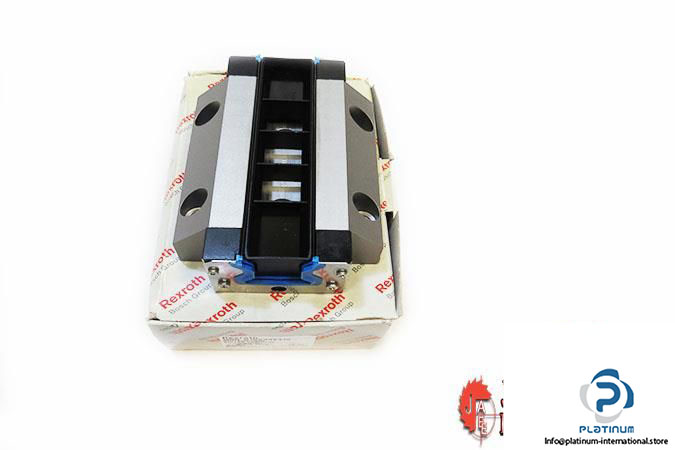

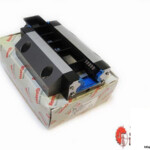

Rexroth R185332310 Roller Carriage

Manufacturer: Bosch Rexroth
Type: ROLLER RUNNER BLOCK FLS
MNR: R 185332310
Size: 35 mm
Mechanical Format: RWA
Design: FLS – Flange, Long, Standard height
Format: CS – Carbon Steel
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 4 m/s
Dynamic Load Capacity C: 74900 N
Static Load Capacity C₀: 155400 N
Dynamic Torsional Moment Load Capacity M_t:  1490 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 1220 Nm
Accuracy Class: H
Preload Class: C2
Dimensions
Width (A): 100 mm
Length (B): 142 mm
Block Height (H₁): 41 mm
Total height (H): 48 mm
E₁: 82 mm
E₂: 62 mm
E₃: 52 mm
E₄: 80 mm
Admissible Operating Temperature: -10 … +80 °
