Rexroth R480041527 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
REXROTH ISO Cylinder R480041527 with 32 mm bore diameter and 800 mm stroke, designed for compressed air systems. Features a double-acting operation mode, male piston rod end, and G 1/8 pneumatic connection.1/81032800AirANDbarboreCompressedconnectionCylinderdiameterEfficientFeaturesforGinISOmaximummmOfOperationPneumaticPressureR480041527RexrothStrokeSystemsWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

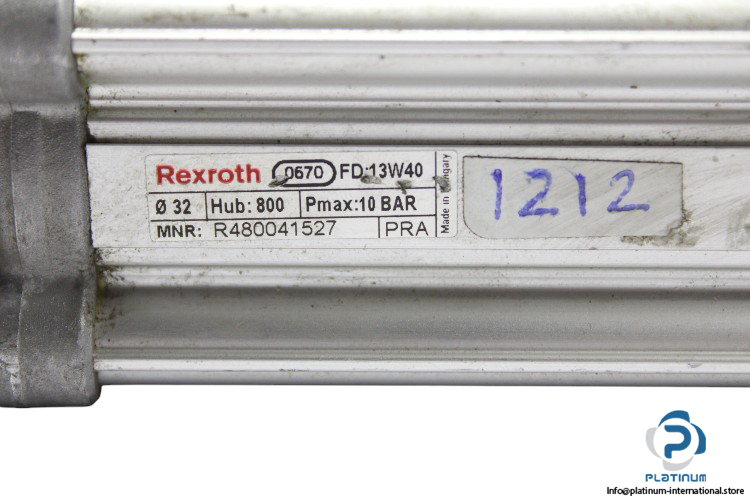

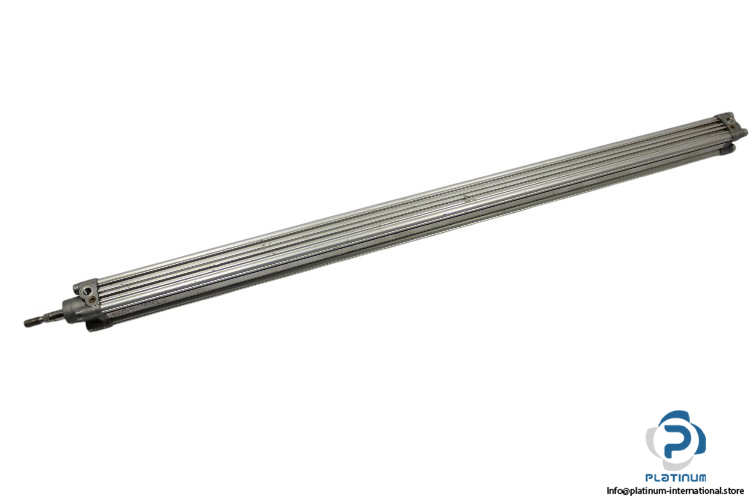

REXROTH ISO Cylinder R480041527
The REXROTH ISO Cylinder R480041527 is designed for efficient and reliable pneumatic operation in industrial applications. With a 32 mm bore diameter and a stroke length of 800 mm, this double-acting cylinder offers smooth performance in a variety of mechanical systems.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: R480041527
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 32 mm
- Stroke: 800 mm
- Bore x Stroke: 32 x 800 mm
- Rod Diameter: 12 mm
- Frame Dimensions: 47 x 920 mm
- Pneumatic Connection: G 1/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
