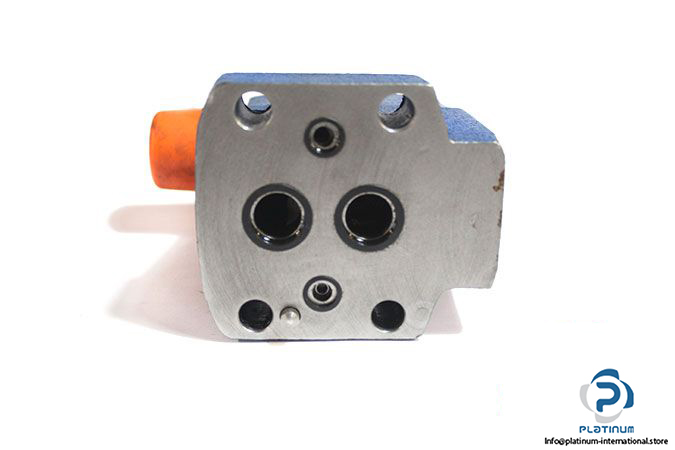

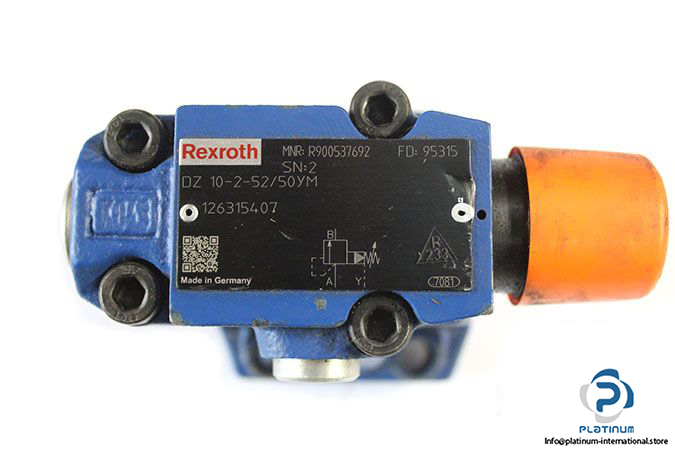

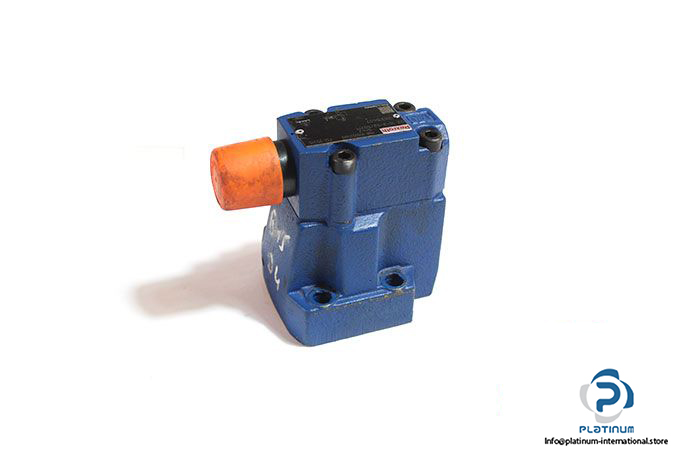

Rexroth R900537692 Pressure Sequence Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Sequence Valve Pilot Operated

Model: DZ 10-2-52/50YM

MNR:R900537692

Size: 10

Adjustment element: Sleeve with hexagon and protective cap

Pressure Setting: 50 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Ports A, P,X :315 bar

Maximum back pressure at Port Y :315 bar

Maximum Flow Rate: 200 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 3.62 kg
