Rexroth R901029970 Proportional Pressure Relief
Proportionaler Druckbegrenzungsventil Rexroth DBETE-61/350G24K31A1V proportionaler Druckbegrenzungsventil mit 24 VDC Versorgung, analoger 0“10 V Steuerung und integrierter Elektronik für präzise hydraulische Druckregelung.

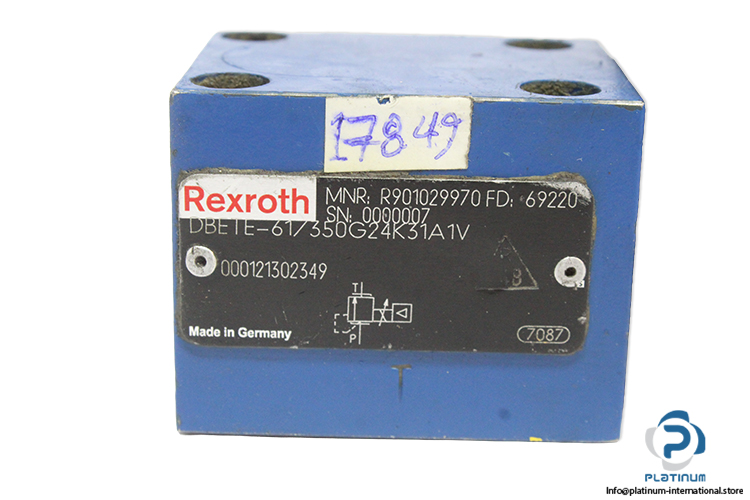

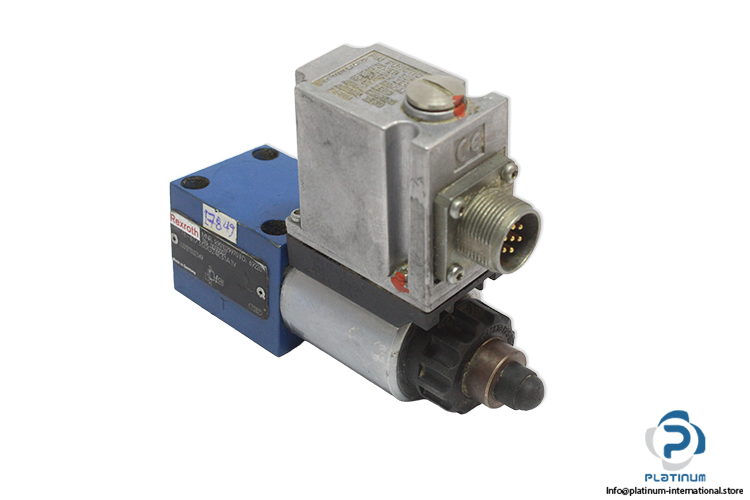

Rexroth DBETE-61/350G24K31A1V Proportional Pressure Relief Valve
The Rexroth DBETE-61/350G24K31A1V is an electrically actuated proportional pressure relief valve with integrated on-board electronics. It is designed for precise pressure control using an analog command signal, offering stable and reliable performance in advanced hydraulic systems.
Manufacturer: Rexroth
Type: Proportional Pressure Relief
Model: DBETE-61/350G24K31A1V
MRN: R901029970
Serial No.: 0000007
Code: 000121302349 / 69220
| Size | 6 |
| Type of Actuation | Electrical with on-board electronics |
| Number of Ports | 2 |
| Number of Switching Positions | 2 |
| Supply Voltage | 24 VDC |

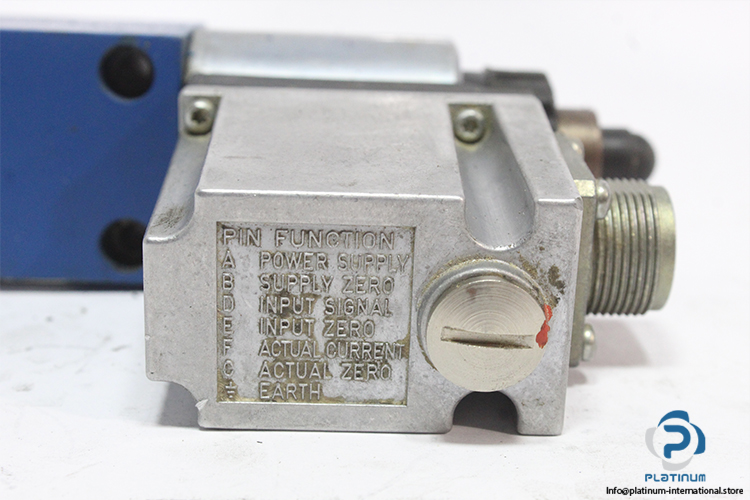

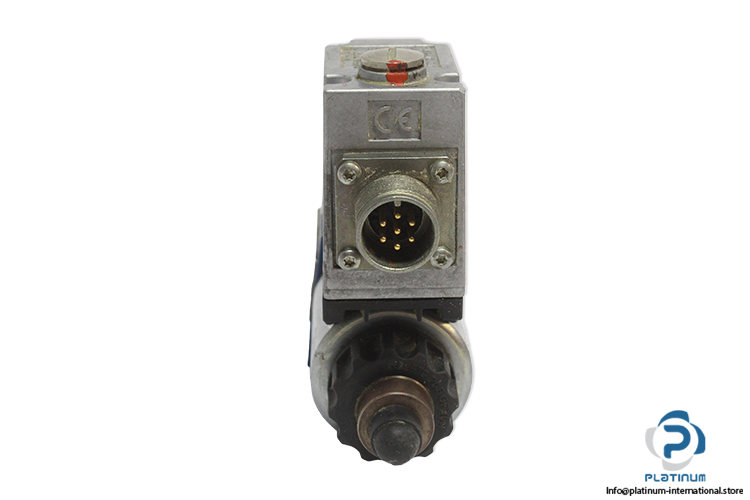

| Electrical Connector | Connector, 7-pole (6 + PE) |
| Electrical Connection Description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 0 / 10 V |
| Connection Diagram | ISO 4401-03-02-0-05 |
| Product Family | DBET(E) |
| Operating Pressure, Max. | 420 bar |
| Max. Flow | 2.0 l/min |
| Spool Symbol | P †’ T |
| Type of Connection | Subplate mounting |
