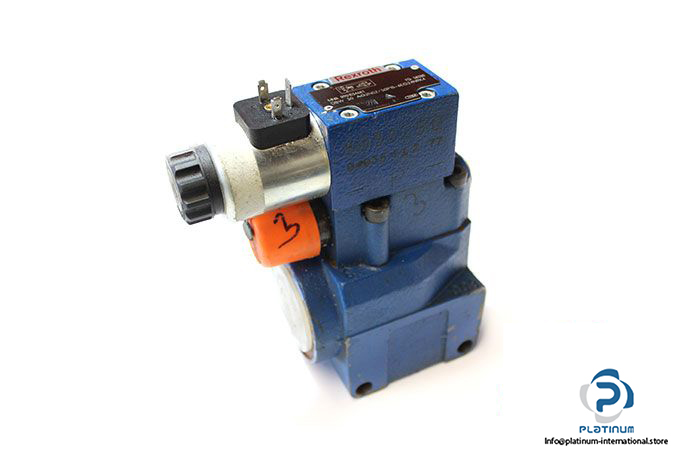

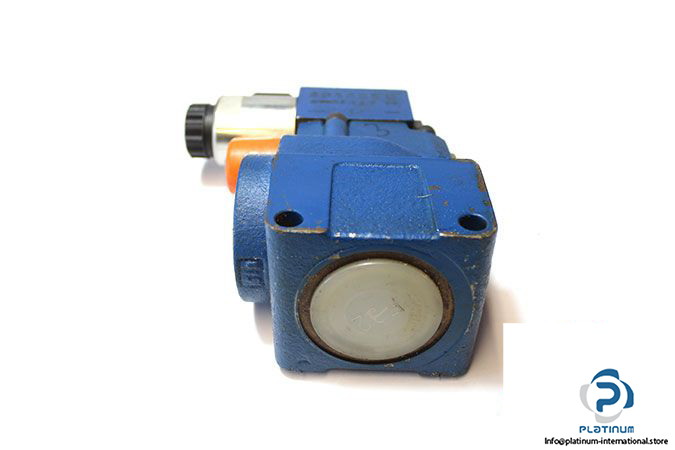

Rexroth R901034683 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

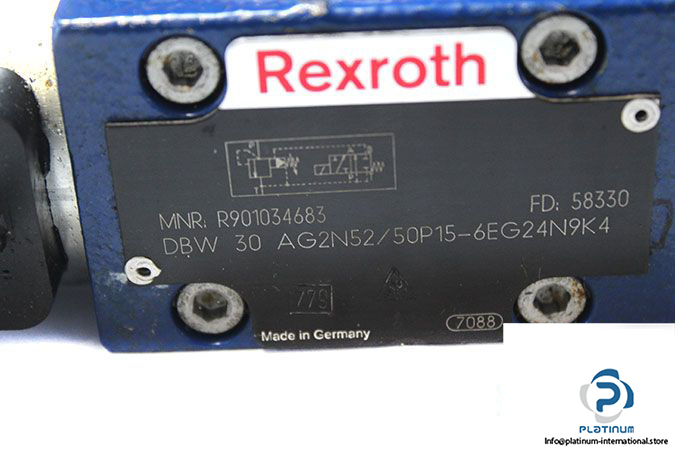

Model: DBW 30 AG2N52/50P15-6EG24N9K4

MNR: R901034683

Size: 30

Adjustment element for pressure adjustment: Sleeve with hexagon and protective cap

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Ports P,X :350 bar

Maximum operating pressure at Port T :315 bar

Maximum backpressure at Ports Y,T : 210 with DC solenoid

,160 with AC solenoid

Maximum Flow Rate: 650 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Weight: 6.35 kg
