Rexroth R901040669 Proportional Directional Valve
Gebraucht
Auf Anfrage verfügbar
3 999,99$
REXROTH Proportionalventilbaugruppe Komplettes Rexroth-Ventilset mit dem 4WRKE 32 proportionalen Wegeventil inklusive Pilot- und Druckminderventilen. Ausgelegt für 350 bar und 1600 L/min bei 24 VDC, ideal für präzise hydraulische Steuerung.
24v324WRAP4WRKE6assemblyControlDirectionalflowHighHydraulicIndustrialMNRoperatedPilotPressureProportionalR9010ReducingRexrothValveZDR
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

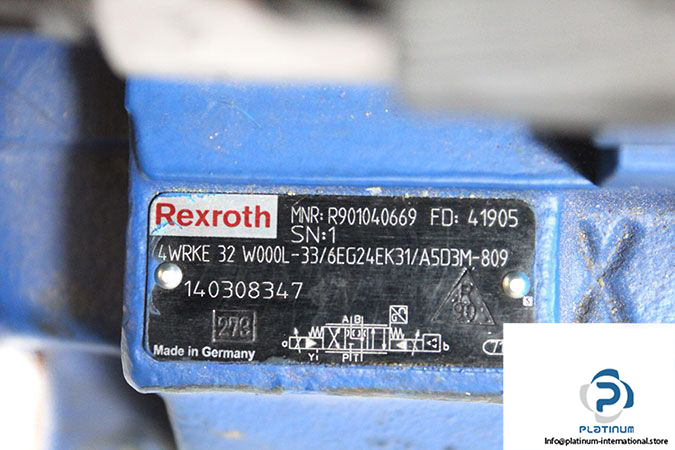

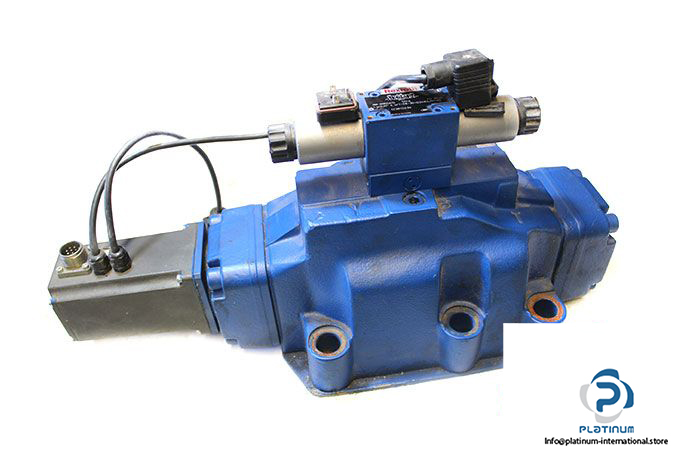

REXROTH 4WRKE 32 W000L-33/6EG24EK31/A5D3M-809 Proportional Directional Valve Assembly
This pilot-operated proportional directional valve from Rexroth is engineered for high-performance hydraulic control in industrial systems. It offers exceptional precision and robust operation under high pressure and variable flow demands.
Main Valve Specifications
- Manufacturer: REXROTH
- Type: Proportional Directional Valve Pilot Operated
- Model: 4WRKE 32 W000L-33/6EG24EK31/A5D3M-809
- MNR: R901040669
- Part No.: 140308347
- Ref No.: 1 / 41905
- Size: 32
- Supply Voltage: 24 VDC
- Ambient Temperature: -20 to +50 °C
- Maximum Operating Pressure: 350 bar
- Max. Flow Rate: 1600 L/min
- Storage Temperature: -20 to +80 °C
- Viscosity Range: 20“380 mm²/s

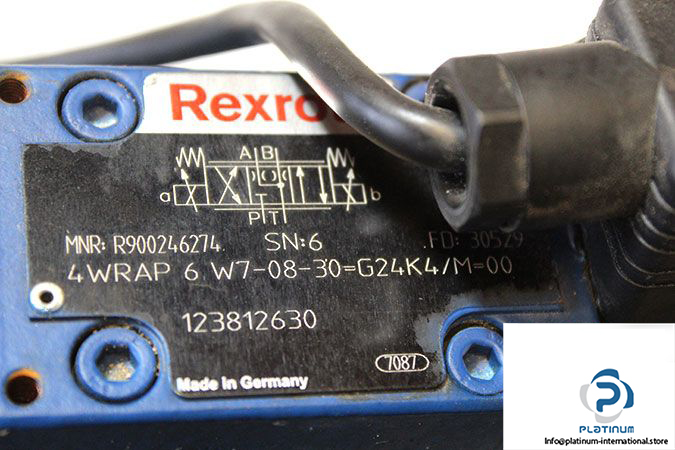

Attached Pilot Control Valve
- Manufacturer: REXROTH
- Type: Pilot Control Valve
- Model: 4WRAP 6 W7-08-30=G24K4/M=00
- MNR: R900246274
- Size: 6
- Maximum Operating Pressure: 350 bar
- Supply Voltage: 24 V

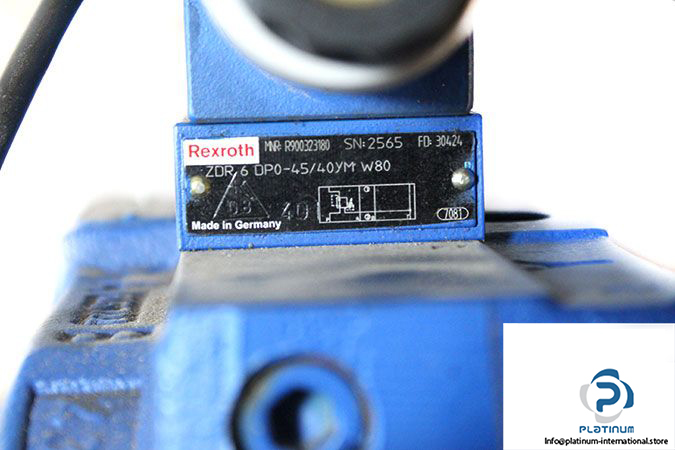

Attached Pressure Reducing Valve
- Manufacturer: REXROTH
- Type: Pressure Reducing Valve
- Model: ZDR 6 DP0-45/40YM W80
- MNR: R900323180
- Nominal Size: 6
- Series: 4X
- Maximum Operating Pressure: 210 bar
