Rexroth R901084169 Proportional Directional Valve

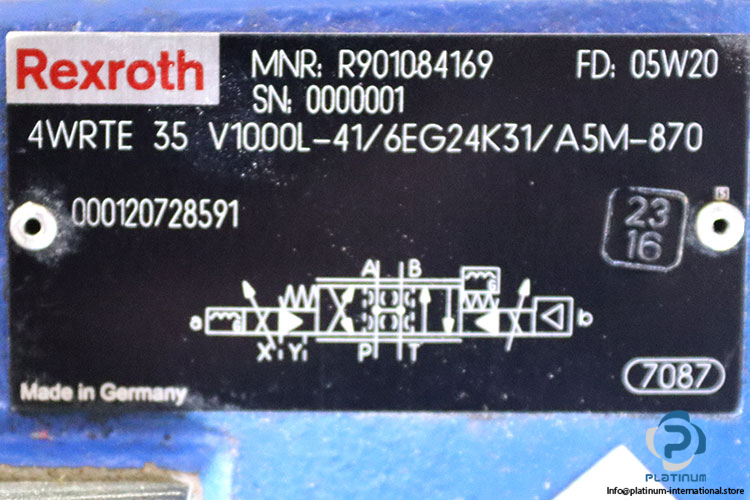

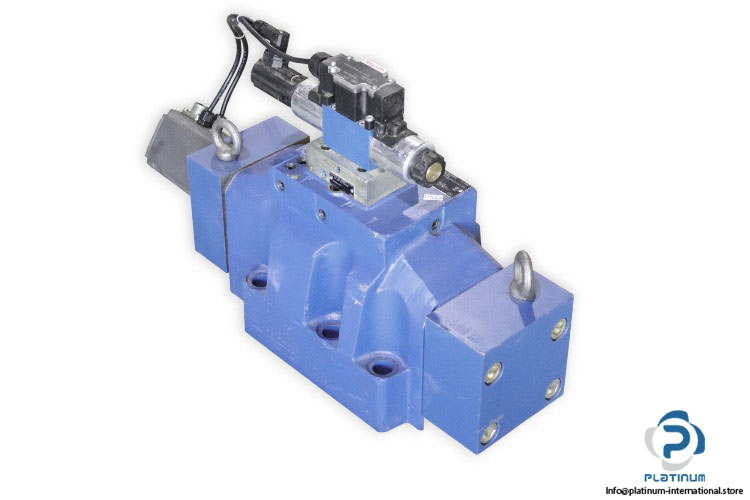

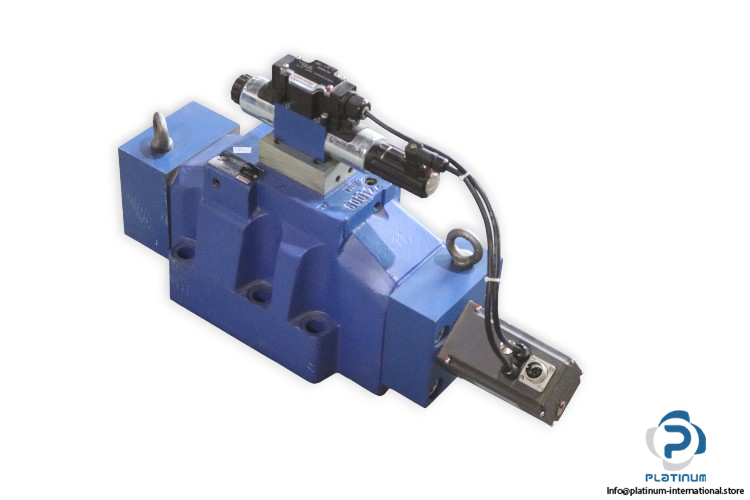

Rexroth 4WRTE 35 V1000L-41/6EG24K31/A5M-870 Pilot-Operated Proportional Directional Valve Assembly

A high-performance Rexroth pilot-operated proportional directional valve assembly designed for precise control of high flow rates, stable system response, and dependable operation in demanding hydraulic applications. This complete package is ideal for advanced industrial machinery, automation systems, presses, and motion control solutions requiring accurate proportional control. Manufacturer: Rexroth
Type: Pilot-Operated Proportional Directional Valve
Model: 4WRTE 35 V1000L-41/6EG24K31/A5M-870
MNR: R901084169
Code: 000120728591 / 05W20 / 7087
Serial No.: 0000001

Size: 35
No. of ports: 4 main ports
Direct Voltage: 24 V
Maximum operating pressure: 350 bar
Nominal Flow Rate: 1000 L/min
Flow characteristic: Linear
Pilot control valve: Proportional solenoid with detachable coil
Hydraulic Fluid Temperature Range: -20 to +80 °C
Viscosity Range: 20 to 380 mm²/s
Electrical Connection: Without mating connector; connector DIN EN 175201-804
Interfaces of the control electronics: Command value/actual value ± 10 V, enable signal (pin C)
Seal material: NBR

Included Attachments

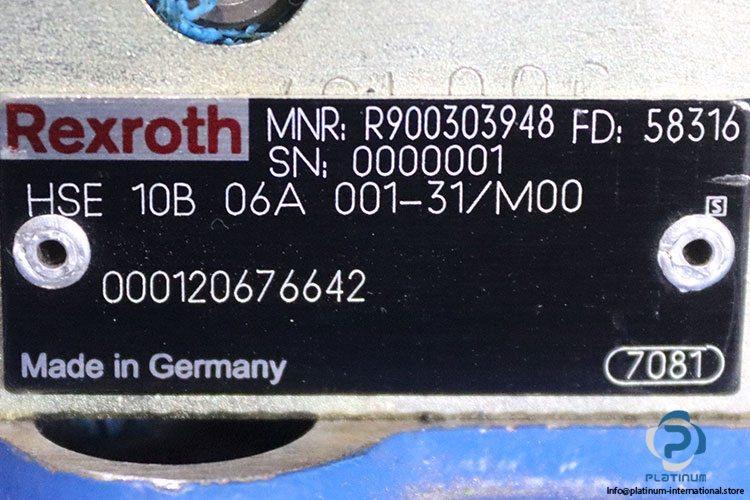

1. REXROTH R900303948 ADAPTER PLATE
Manufacturer: Rexroth
Type: Adapter Plate
Model: HSE 10B 06A 001-31/M00
MNR: R900303948
Code: 000120676642 / 58316 / 7081
Serial No.: 0000001
Dimensions: 90 x 70 x 30 mm

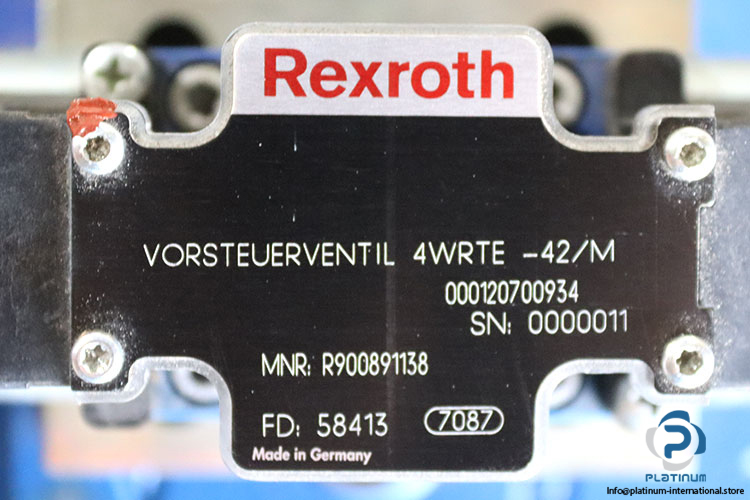

2. REXROTH R900891138 DIRECTIONAL CONTROL VALVE
Manufacturer: Rexroth
Type: Directional Control Valve
Model: 4WRTE-42/M
MNR: R900891138
Code: 000120700934 / 58413 / 7087
Serial No.: 0000011
Size: 42
Maximum operating pressure: 350 bar
No. of ports: 4 main ports
Seal material: NBR seals

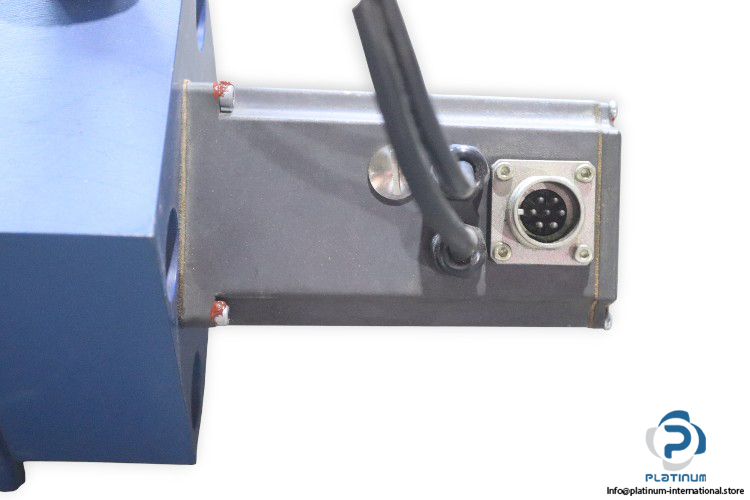

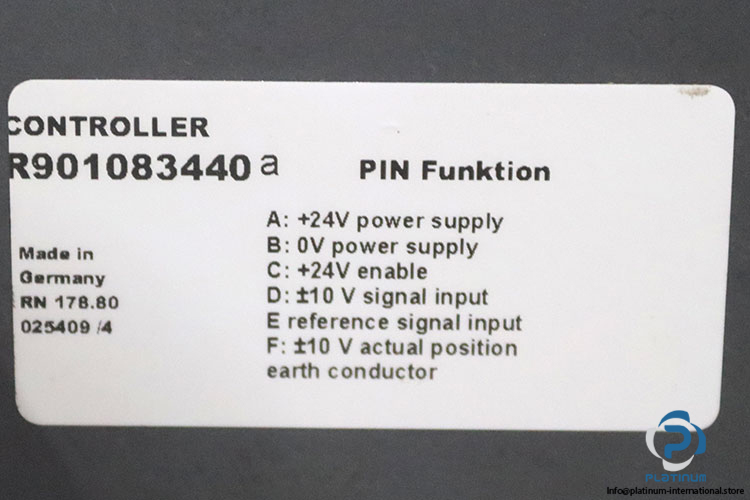

3. REXROTH R901083440 CONTROLLER
Manufacturer: Rexroth
Type: Controller
MNR: R901083440
Voltage: 24 V
Signal: ±10 V

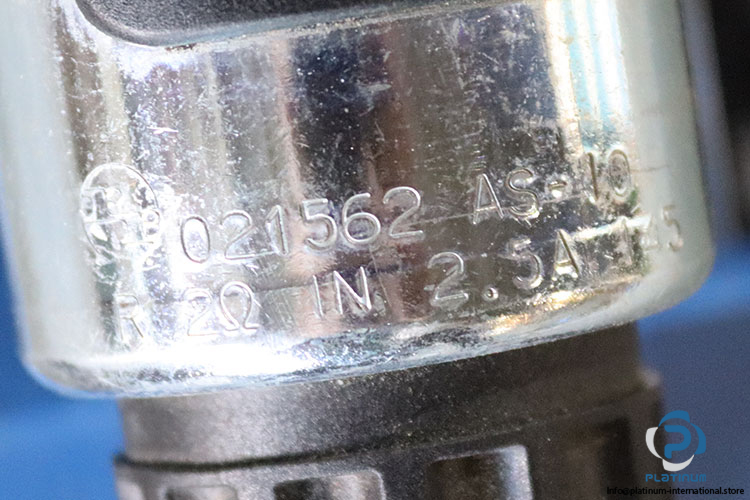

4. REXROTH 021562 AS-10 COIL
Current: 2.5 A
Resistance: 2 ohm
Voltage: 24 V

Why This Product Stands Out:
This Rexroth proportional valve assembly combines high flow capacity (up to 1000 L/min) with precise, linear control characteristics and robust construction for heavy-duty industrial use. The integrated valve, controller, adapter plate, and coil provide a complete, matched system that simplifies installation, setup, and troubleshooting while delivering outstanding accuracy and repeatability.

Recommended For:
Highly recommended for hydraulic presses, injection molding machines, metal forming equipment, test stands, marine and mobile hydraulics, and any application where precise proportional control at high pressure and high flow is critical. Ideal for customers seeking an OEM-grade Rexroth solution to upgrade existing systems, improve performance, and reduce downtime with a fully compatible component set.
