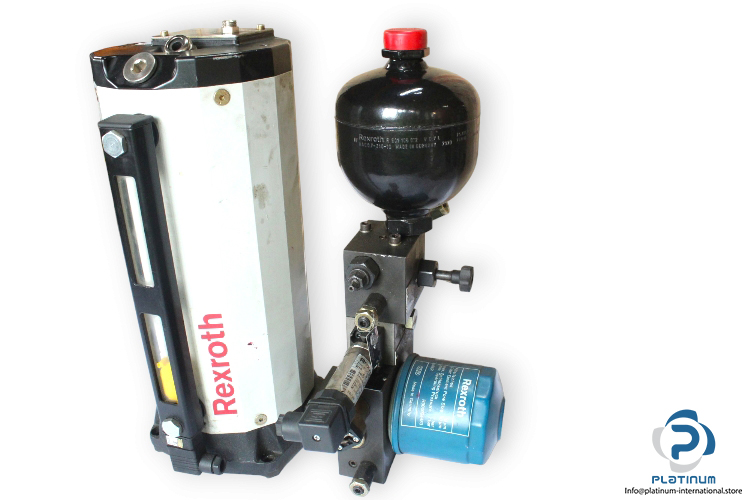

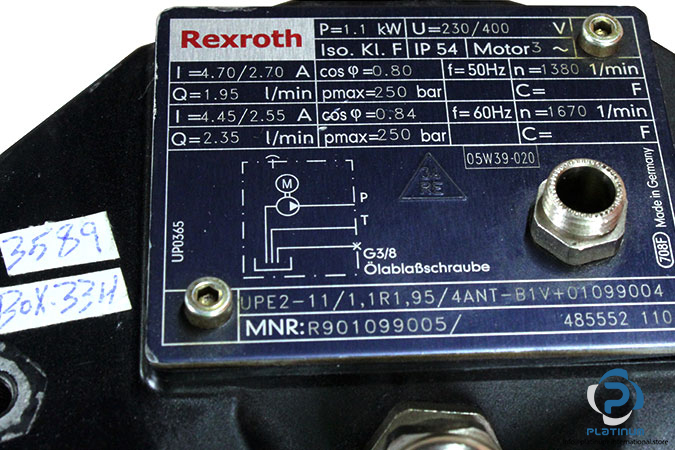

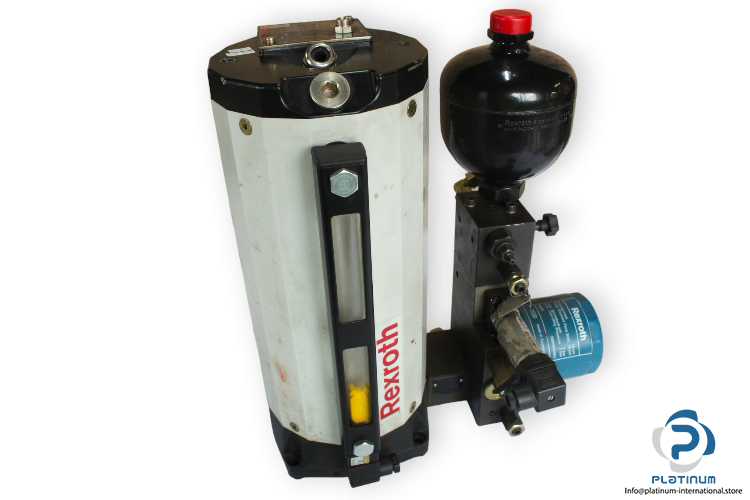

Rexroth R901099005 Clamping AND Drive Module

Manufacturer: REXROTH
Type: Clamping And Drive Module
Model: UPE2-11/1.1R1,95/4ANT-B1V+01099004
MNR: R901099005

Hydraulic Fluid: Mineral oil
Drive Power: 1.1 Kw
Frequency: 50 … 60 Hz
Drive Speed: 1380 1/min
Max. Pressure: 250 bar
Motor: 3-phase
Flow Rate: 1.95 … 2.35 l/min
Oil monitoring: Oil level display with level and temperature switch
Nominal Tank Size: Filling quantity 4.5 liters
Fluid Temperature Range: -20 ….. +80 °C
Optimum Viscosity Range: 10 to 200 mm²/s
Seals: FKM
Enclosure Rating: IP54

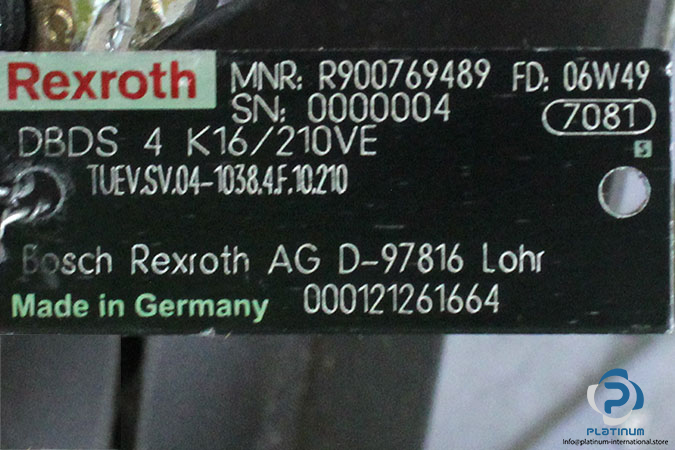

Attachment1: REXROTH R900769489 PRESSURE RELIEF VALVE
Manufacturer: BOSCH REXROTH
Type: Pressure Relief Valve,Direct Operated
Model: DBDS 4 K16/210VE
MNR: R900769489

Max. Input Pressure: 500 bar
Max. Set Pressure: 210 bar
Max. Volume Flow: 20 l/min
Hydraulic Fluid Temperature Range: –20 … 80°C

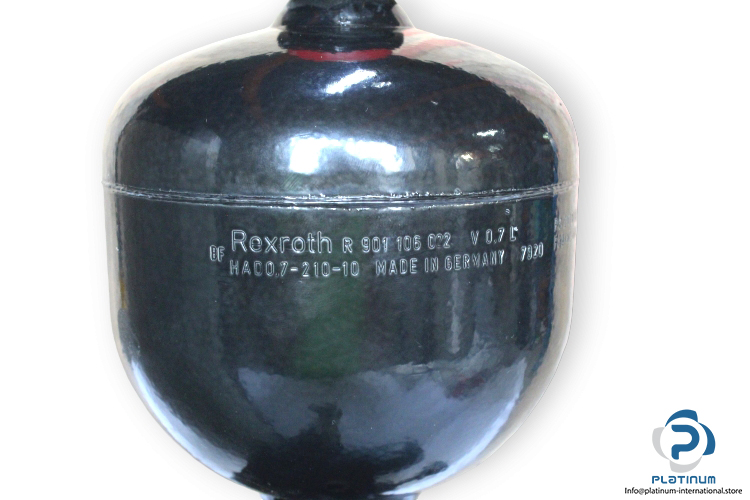

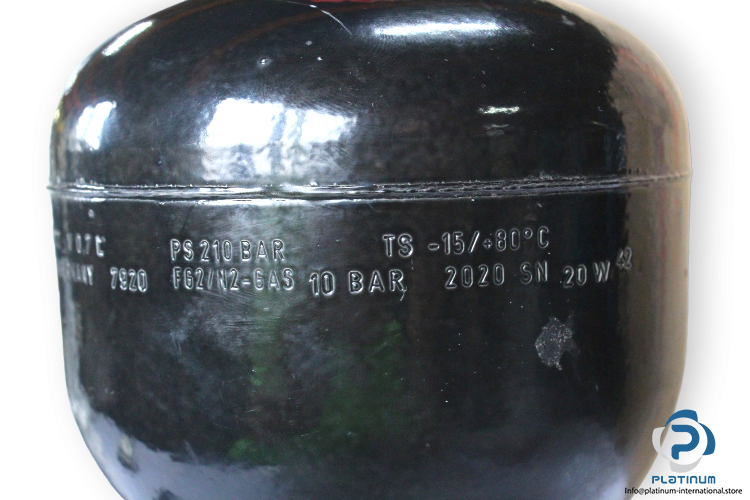

Attachment2: REXROTH R 901 106 022 DIAPHRAGM ACCUMULATOR
Manufacturer: BOSCH REXROTH
Type: Diaphragm Accumulator
Model: HAD0,7-210-10
MNR: R 901 106 022

Size: 0.7 liter
Pressure: 210 bar
Max. Flow: 40 l/min
Port Size: G 1/2
Seals: NBR

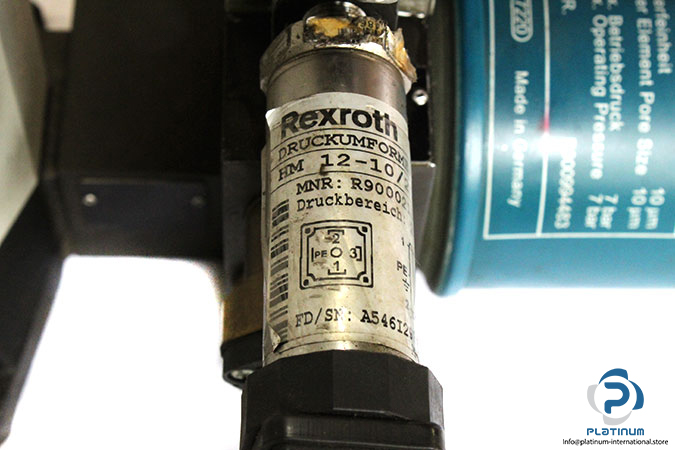

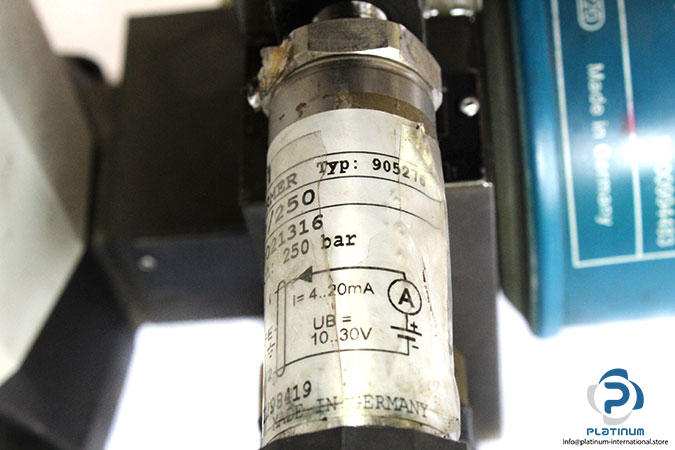

Attachment3: REXROTH R900021316 PRESSURE TRANSDUCER
Manufacturer: REXROTH
Type: Pressure Transducer
Model: HM 12-1/250
MNR: R900021316
Part No.: 905216

Max. Pressure: 16 bar
Pressure Connection: G 1/4
Supply Voltage: 10 … 30 V DC
Output Signal: 4 … 20 mA
Electrical Connection: 4-pin Plug
Operating Temperature: -40 … 85°C

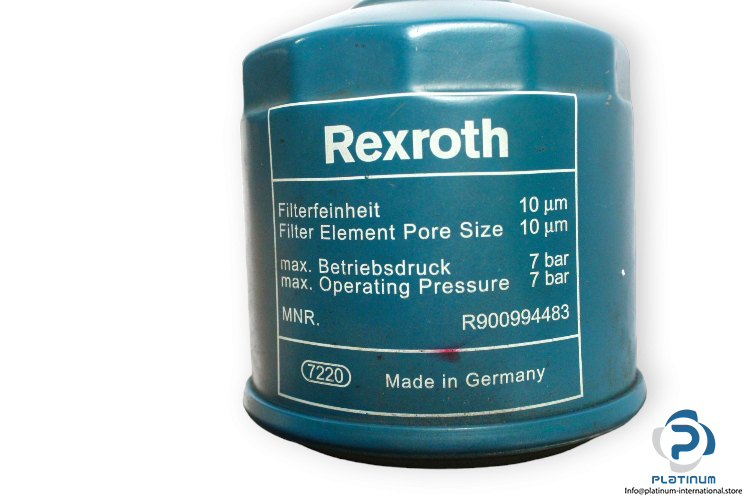

Attachment4: REXROTH R900994483 HYDRAULIC FILTER
Manufacturer: REXROTH
Type: Hydraulic Filter
MNR: R900994483

Length: 94 mm
Inner Diameter: 23 mm Threaded
Outer Diameter/Width:: 96 mm
Filtration: 10µmn
Max. Pressure: 7 bar
Process fluid: Hydraulic Oil
Flow Direction: OUT-IN
