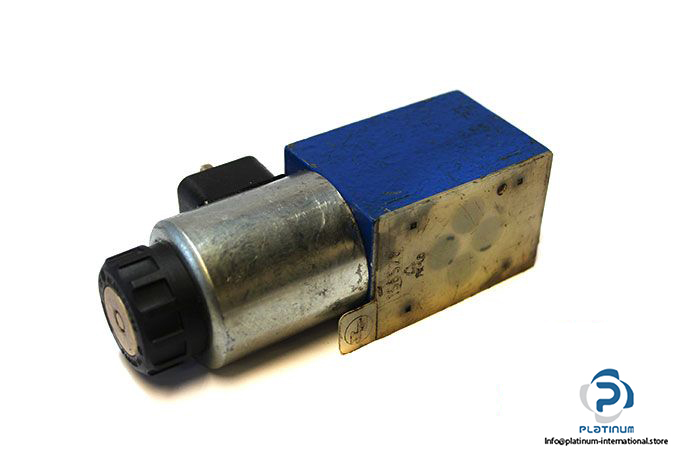

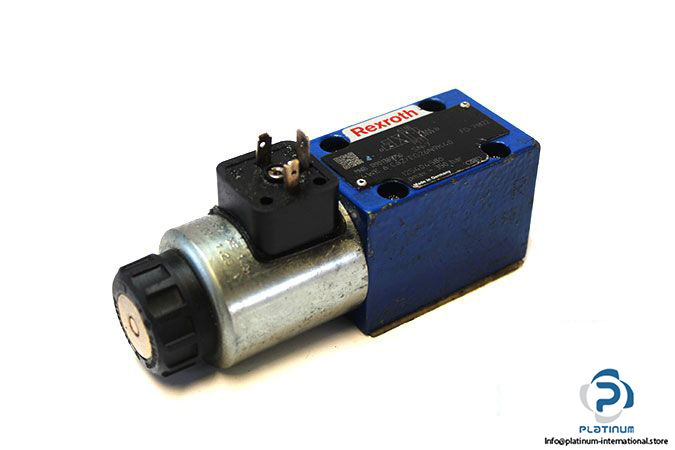

Rexroth R901389950 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

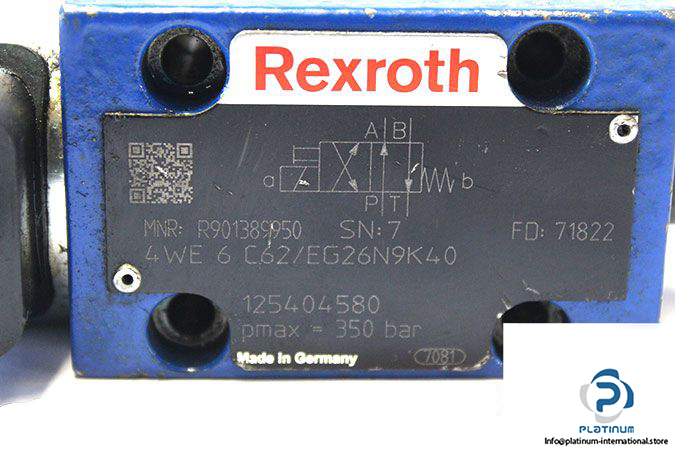

Model: 4WE6C62/EG26N9K4

MNR: R901389950

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

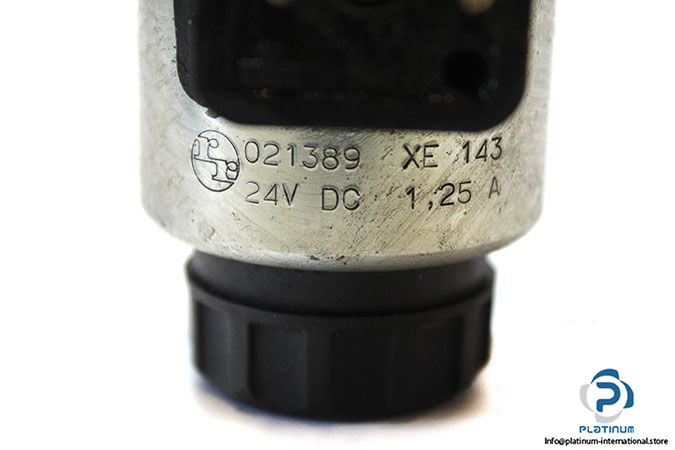

Attachment: HYDRONORMA 021389 XE 143 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model:021389 XE 143

Voltage: 24V DC

Current: 1.25 A

Weight: 1.45 kg
