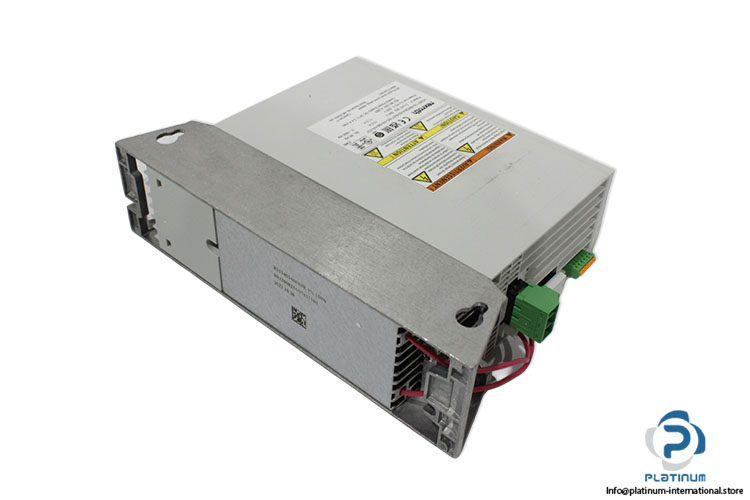

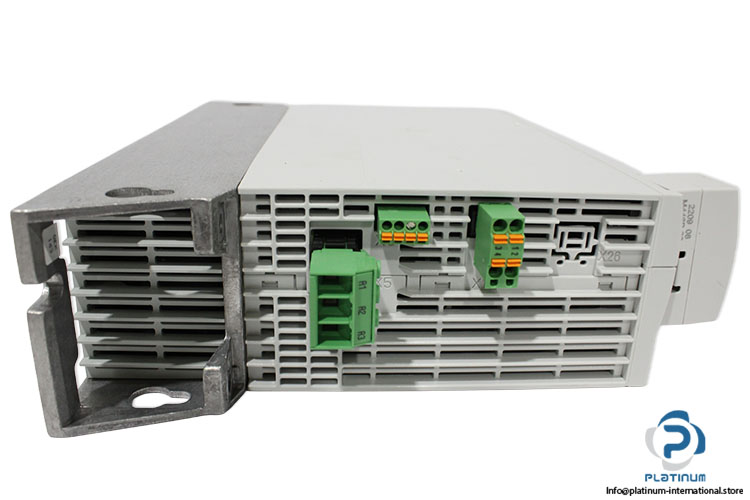

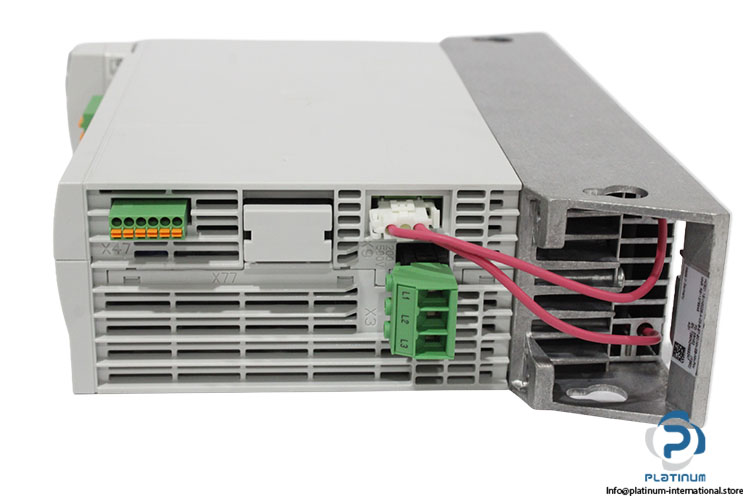

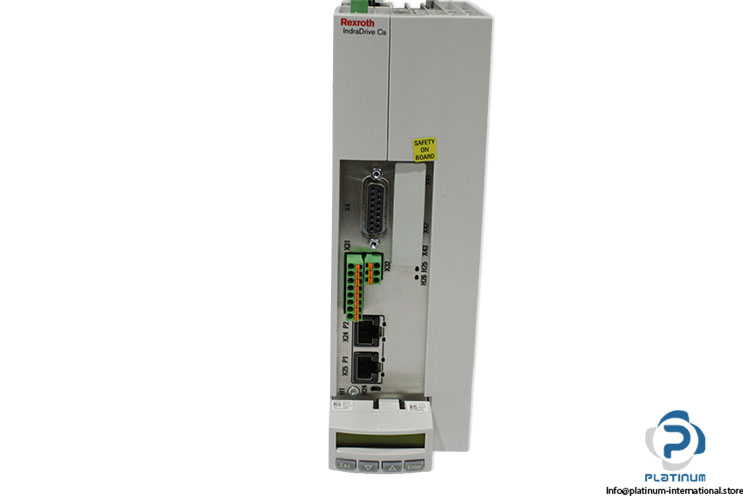

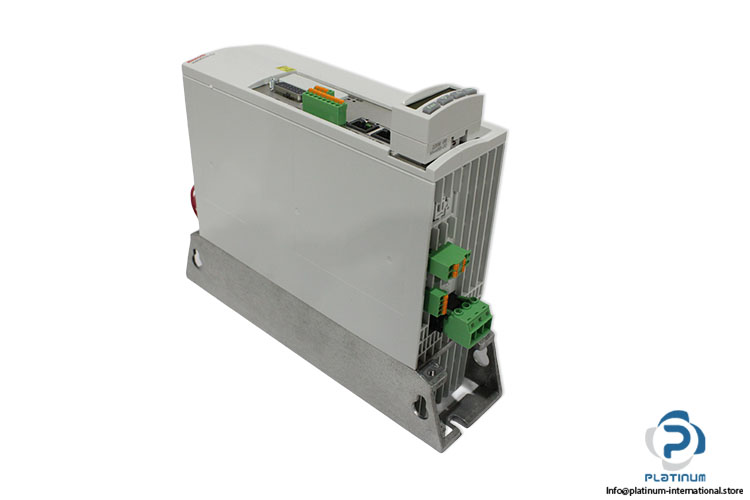

Rexroth R911379545 Servo Drive
Neu
Auf Lager3 EinheitenVersandbereit
Servoantrieb Rexroth HCS01.1E kompakter einachsiger Servoantrieb mit bis zu 6,2 kW Leistung, 0-1600 Hz Ausgangsfrequenz, MultiEthernet-Kommunikation und fortschrittlichen Bewegungssteuerungsfunktionen für die industrielle Automatisierung.
6.2kWACAutomationAxisBoschBUSCompactControllerConverterctrlXDriveHCS01IndustrialMotionMultiEthernetRexrothSafeServoSingle
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

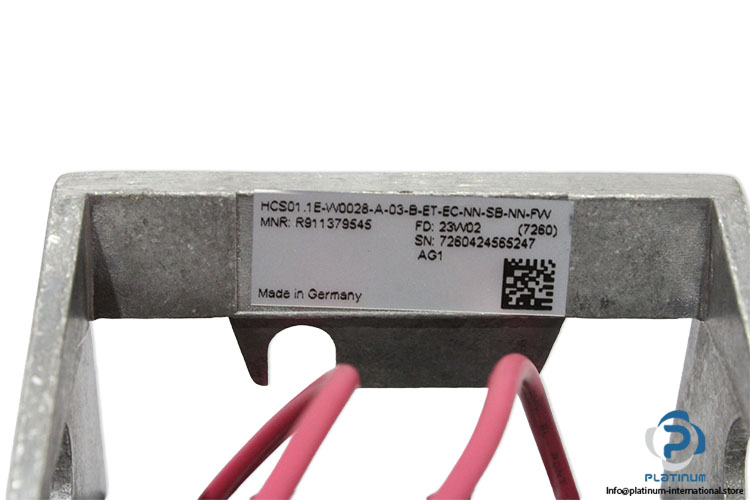

| MNR | R911379545 |
| FD | 23W02 |
| Serial No. | 7260424565240 / 7260424565247 |
| Software card Model | FWA-INDRV *- MPB-20VRS-05-1-NNN-NN |

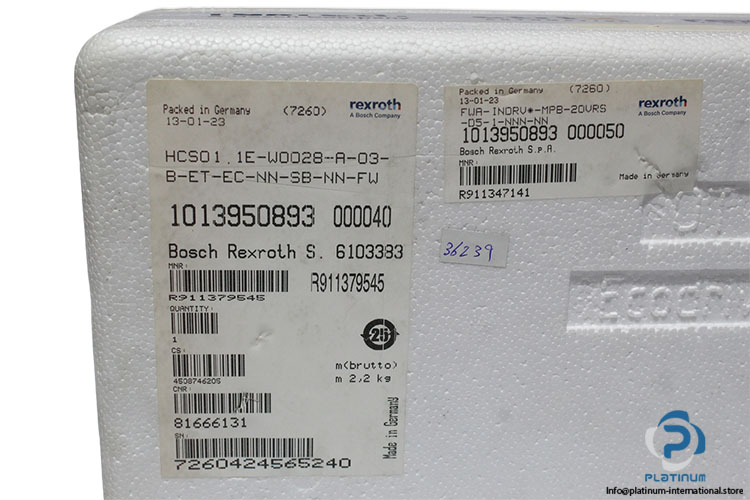

| Software card No. | R911347141 (1013950893 000050) |

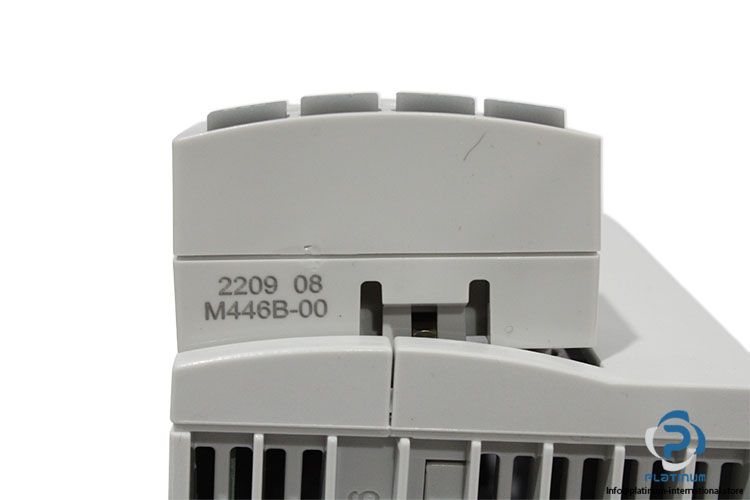

| Ref. No. | 1013950893 000040 / 81666131 / 6103383 / 2209 08 |

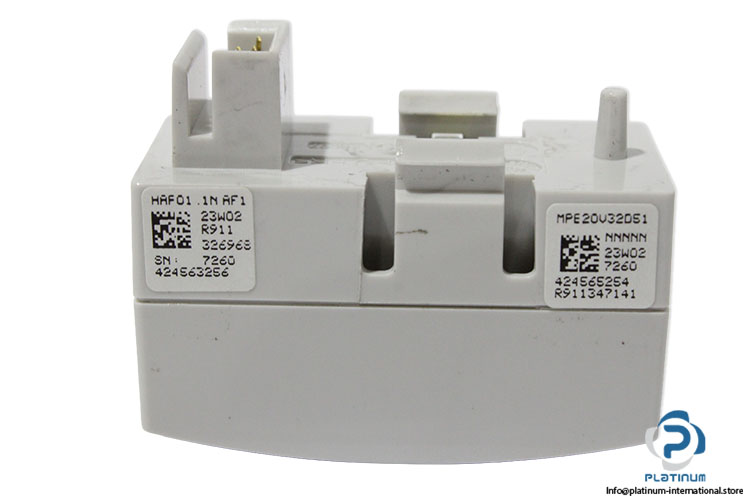

| Control panel No. | HAF01.1N AF 1 / R911 326968 / 424563256 / MPE20V32D51/ 424565254 / R911347141 |

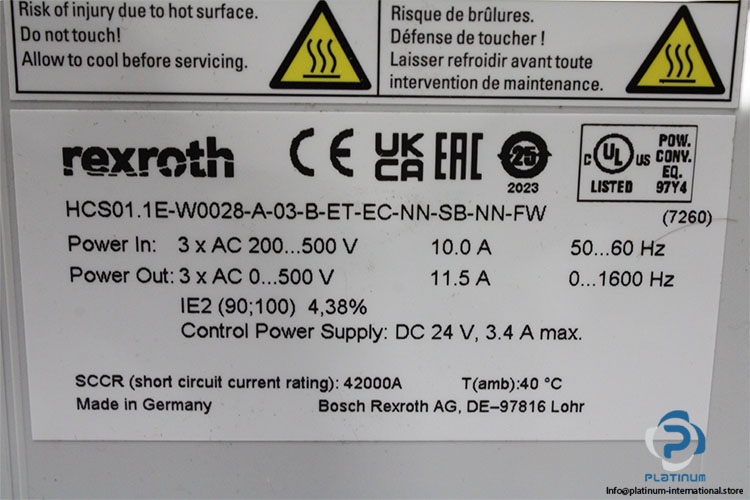

| Input Voltage | 200-500 V AC-3-phase |
| Input frequency | 50/60 Hz |
| Inpu Current | 10 A |
| Output Voltage | 0-500 V AC/3-phase |
| Output frequency | 0-1600 Hz |
| Output current | 11.5 A |
| Power | max. 6.2 kW |
| Control voltage | 24 V DC |
| Control current | max. 3.4 A |
| Short circuit current | 42 kA |
| Interface encoder | Multi-encoder interface |
| Safety function | Safe Motion Bus |

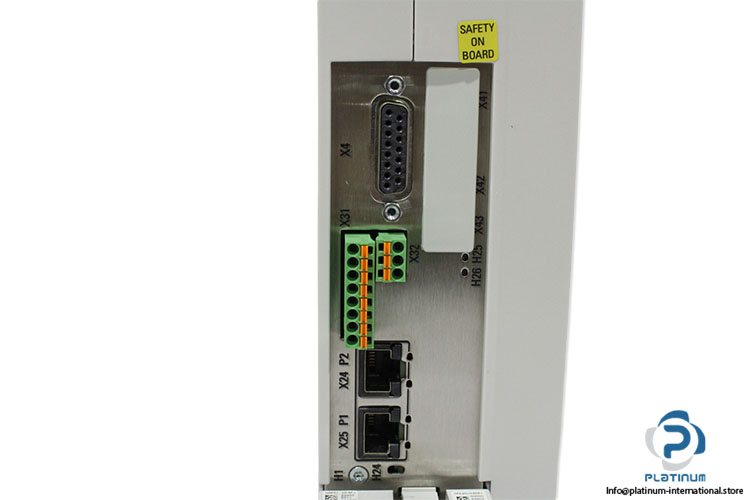

| Communication | MultiEthernet |
| Operating panel | with standard control panel, firmware must be ordered separately |
| Cooling type | internal air cooling |
| International protection code | IP20 |
| Ambient temperature | 0 to 40°C |
| Certificate | CE, UKCA, EAC, cULus |
| Dimensions | 70 x 220 x 268 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097329 |
| Weight | 2,25 |
