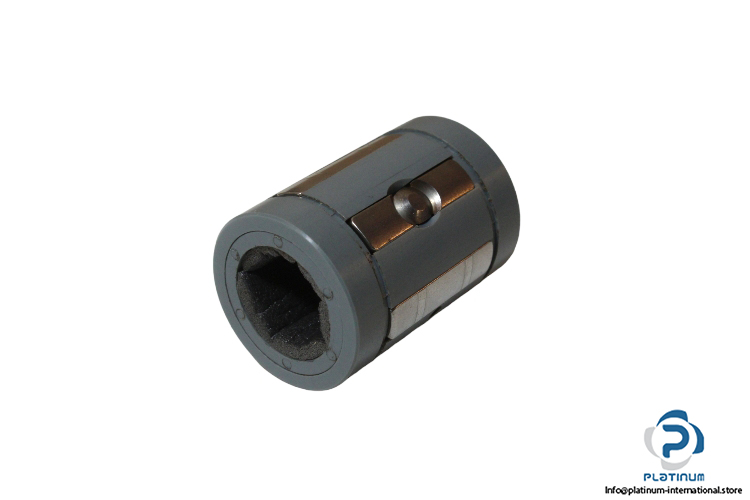

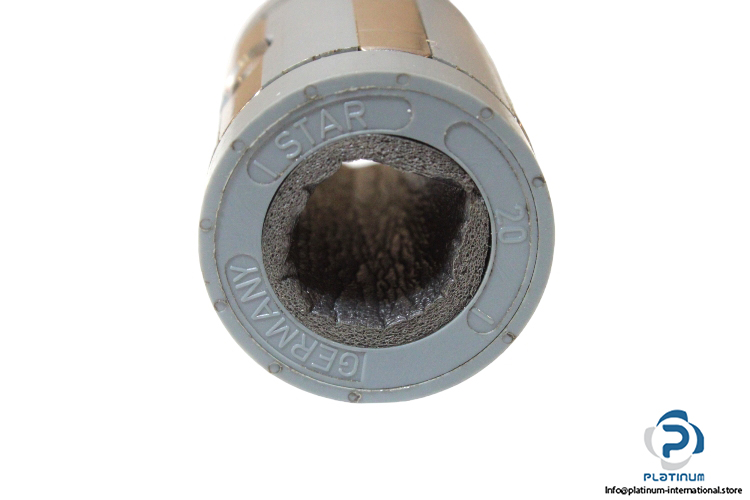

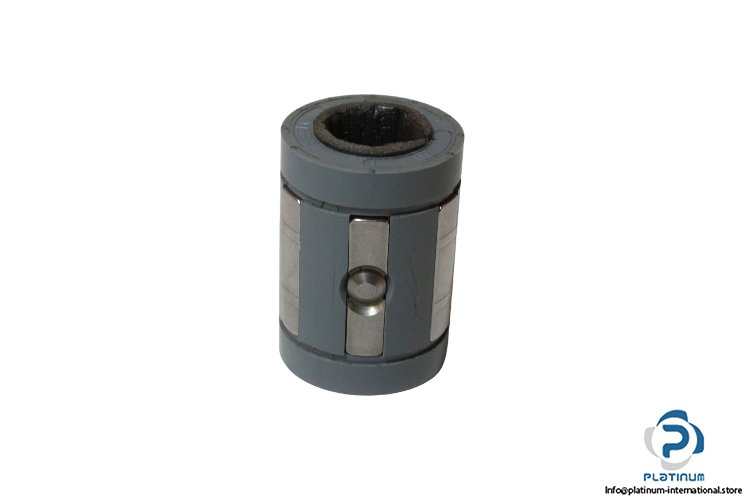

Rexroth Star 0720-320-00 Torque-Resistant Linear Bushing

Manufacturer: REXROTH STAR

Type: TORQUE RESISTANT BUSHING KBDR2

MNR: R072032000

Series: Torque-Resistant Bushings with two ball guide grooves

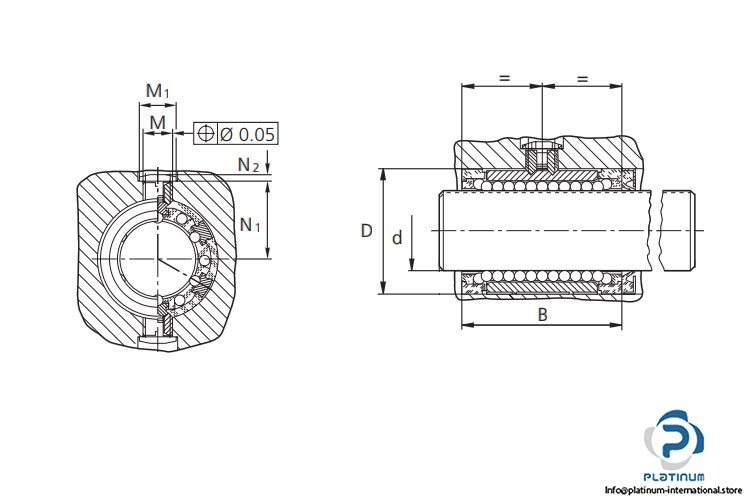

Dimensions:

Shaft diameter d: 20 mm

Outer diameter D: 32 mm

Length B: 45 mm

Design Type: Closed

Rows of Balls: 6

Maximum Acceleration Travel a_max: 150 m/s²

Max. Permissible Speed v_max: 3 m/s

Dynamic Load Capacity C: 1550 N

Static Load Capacity C₀: 1050 N

Dynamic torsional moment load capacity Mt: 12 Nm

Permissible Ambient Temperature: -10 … +80 °C
