Rexroth Star 1512-0-6052 Ball Screw
344,40$
Kugelgewindetrieb Rexroth Star R151206052 ZEM-E-S Kugelgewindetrieb, 16 × 16 R Größe, 16 mm Nenn-Ø, 965 mm Gewindelänge, 1065 mm Gesamtlänge, Rechtsgewinde, 96 m/min Geschwindigkeit, und 12300 N statische Tragfähigkeit.

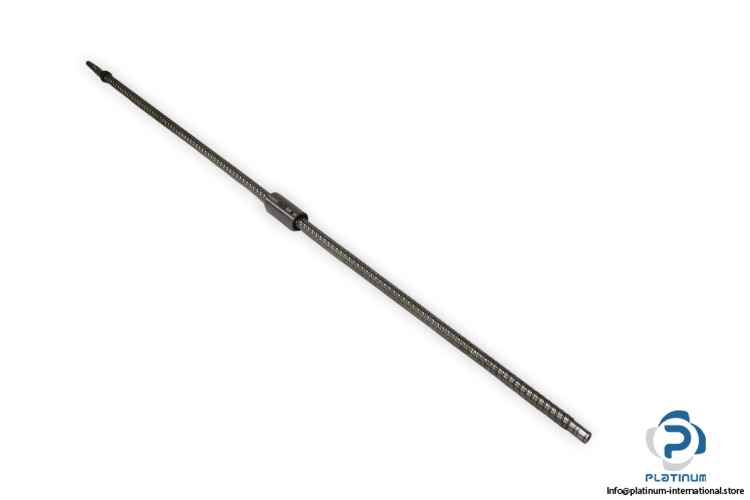

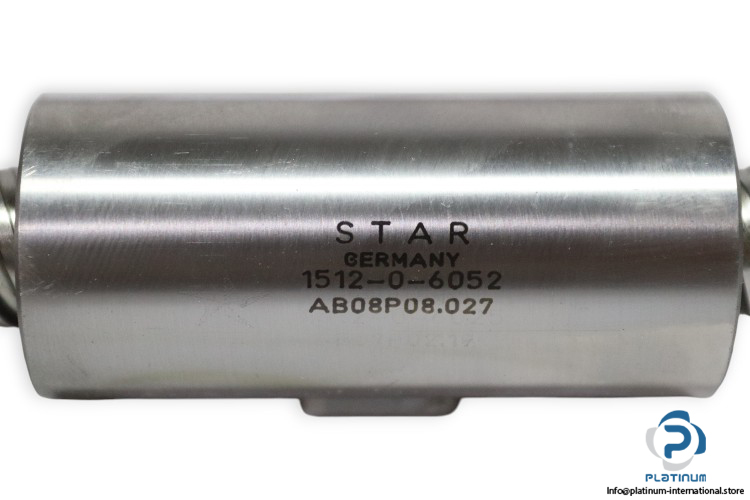

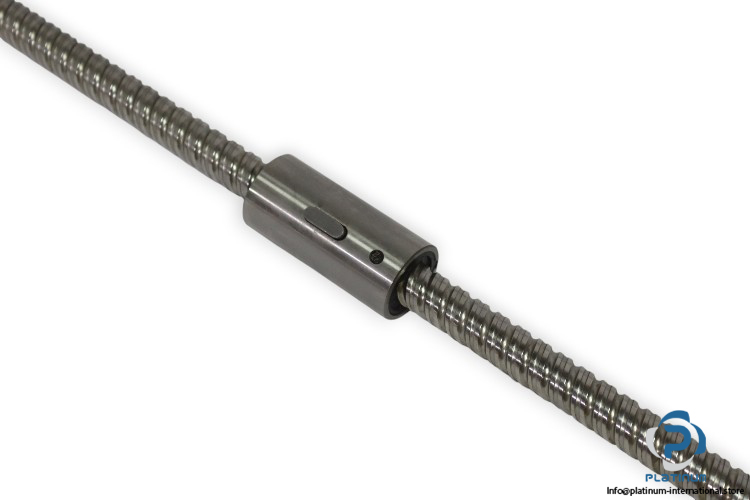

Rexroth Star R151206052 ZEM-E-S Ball Screw
The Rexroth Star R151206052 ZEM-E-S ball screw is a high-precision linear motion component designed for efficiency, durability, and accuracy. With a compact nut design, right-hand thread, and excellent load capacities, it ensures smooth and reliable performance in demanding industrial applications.
Manufacturer: Rexroth Star
Type: Ball Screw
MNR: R151206052
Model: ZEM-E-S
| Size | 16 x 16 R |
| Nominal Diameter (dN) | 16 mm |
| Lead (P) | 16 mm |
| Number of Starts | 2 |
| Number of Ball Track Turns | 3 |
| Ball Diameter (Dw) | 3 mm |

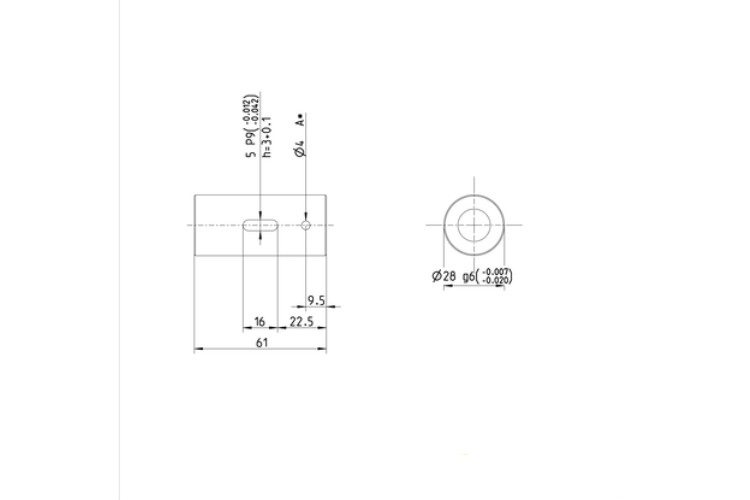

| Nut Outer Diameter | 28 mm |
| Nut Length | 61 mm |
| Direction of Lead | Right-Hand Thread |
| Threaded Length | 965 mm |
| Total Screw Length | 1065 mm |
| Maximum Permissible Linear Speed (vmax) | 96 m/min |
| Static Load Capacity | 12300 N |
| Dynamic Load Capacity | 11200 N |
