RHP MFC 40 Round Self-Lube Bearing Unit
Rundflansch-Kartuschenlagereinheit RHP MFC40 mit Selbstschmierung verfügt über eine 40 mm Bohrung, ein Gehäuse aus Gusseisen und einen selbstschmierenden Einsatz für dauerhafte und effiziente Wellenunterstützung in industriellen Anwendungen.

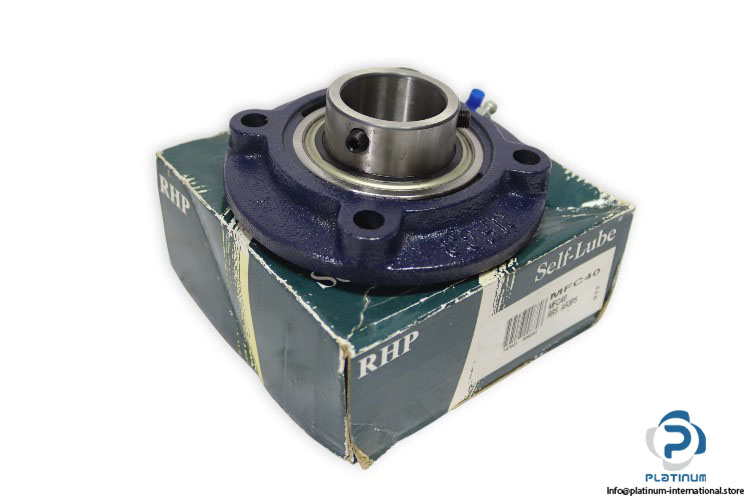

RHP MFC40 Round Self-Lube Cast Iron Flange Cartridge Bearing Unit
The RHP MFC40 is a precision-engineered round self-lube cast iron flange cartridge bearing unit designed for reliable and efficient shaft support in industrial applications. With its robust cast iron housing and self-lubricating bearing insert, it offers high performance, easy installation, and long service life under demanding operating conditions.
Manufacturer: RHP
Type: Round Self-Lube Cast Iron Flange Cartridge Bearing Unit
Model: MFC40
Series: MFC

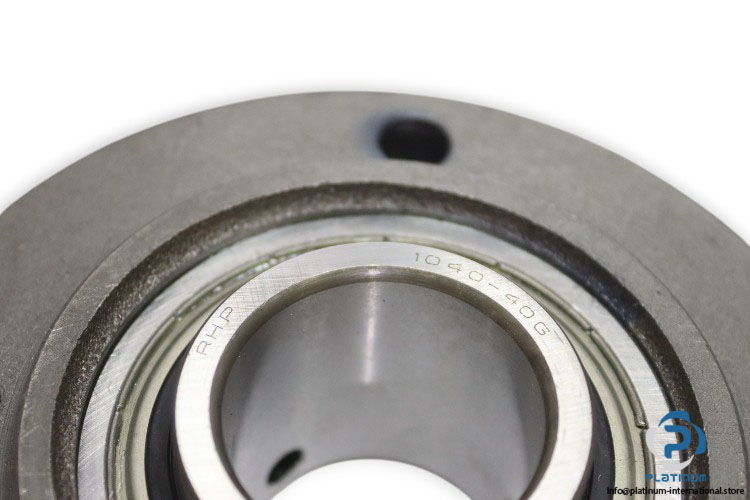

Bearing No.: 1040-40G

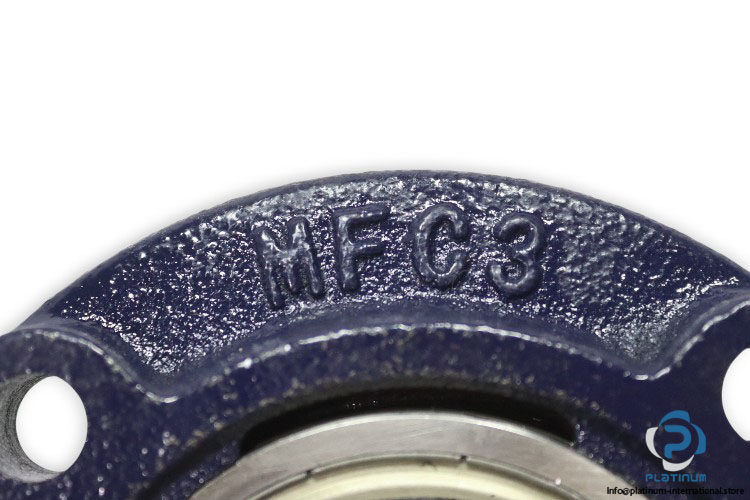

Housing No.: MFC3

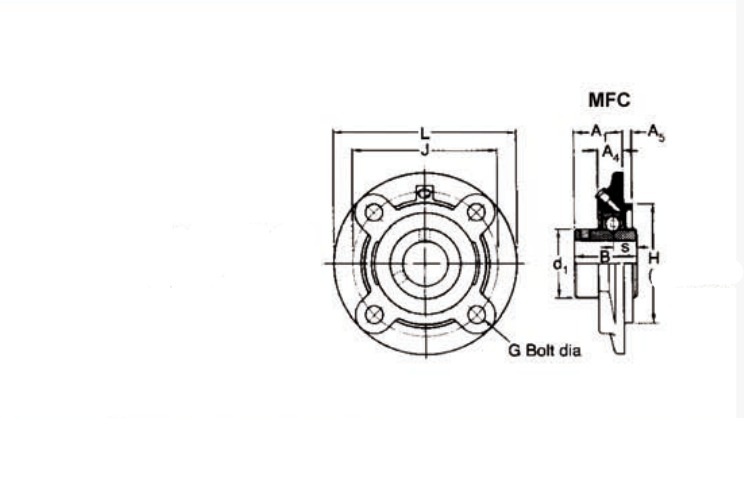

| Shaft Diameter | 40 mm |
| Base to Center Height (H) | 92.07 mm |
| Total Length (L) | 133.4 mm |
| Bolt Hole Spacing (J) | 111.12 mm |
| Inner Diameter (d) | 40 mm |
| Outer Diameter (D) | 133.4 mm |
| Width (B) | 49.23 mm |
| Static Load Rating C0r | 17900 N |
| Dynamic Load Rating Cr | 29100 N |
| Speed | 4000 rpm max. |
