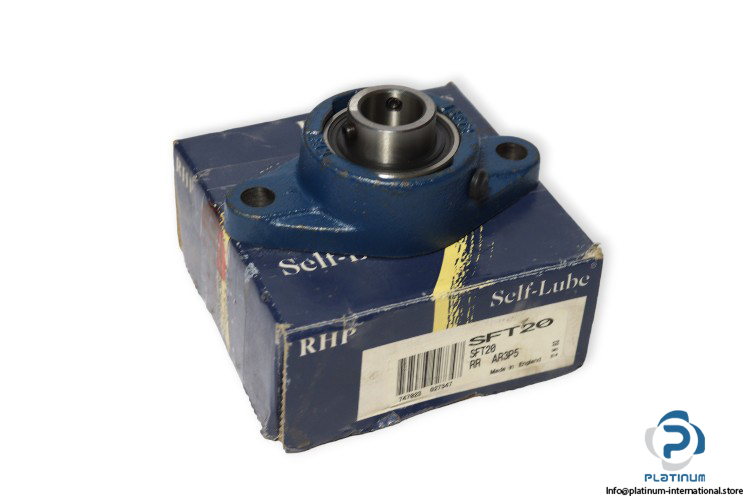

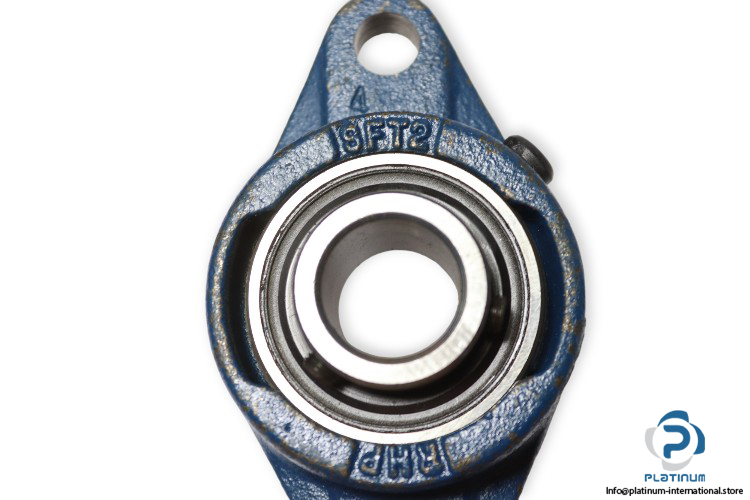

RHP SFT20 TWO-Bolt Flanged Žhousing Unit

Name: RHP SFT20 TWO-BOLT FLANGED ŽHOUSING UNIT
SKU: 1030860
Availability: LimitedAvailability

rhp-SFT-20-two-bolt-flanged-housing-unit-(new)-(carton)

rhp-SFT-20-two-bolt-flanged-housing-unit-(new)-(carton)-1

rhp-SFT-20-two-bolt-flanged-housing-unit-(new)-(carton)-2

rhp-SFT-20-two-bolt-flanged-housing-unit-(new)-(carton)-3

rhp-SFT-20-two-bolt-flanged-housing-unit-(new)-(carton)-4

Neu

Auf Lager1 EinheitVersandbereit

Selbtschmierende Flanschlager aus Gusseisen

Hersteller

RHP?

SKU

1030860

Kategorie

Plummer Block Housing Units

Zustand

Neu

20 bearing bearings flanged Housing mm Oval RHP Series SFT Two-Bolt Unit Units Žhousing

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: RHP
Type: Self-Lube cast iron flange bearing units
Model: SFT20

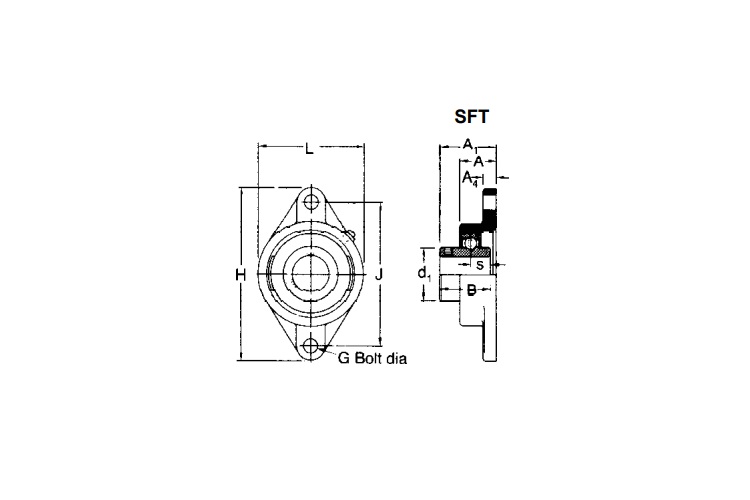

Dimensions
Bore Diameter d: 20 mm
Overall Length L: 60.3 mm
Overall Height H: 111.9 mm
Width of inner ring B: 30.96 mm
Distance Between Attachment Bolts J: 90 mm
Overall unit width A1: 37.26 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6580 N
Material, housing: Cast iron
