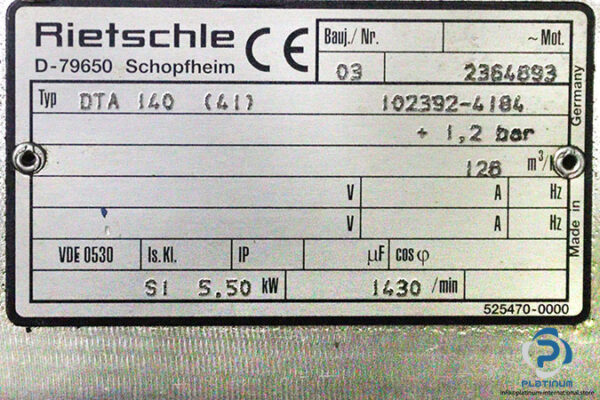

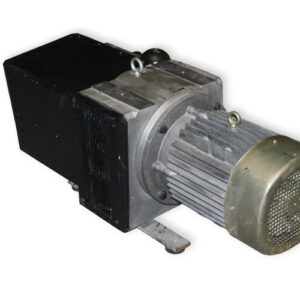

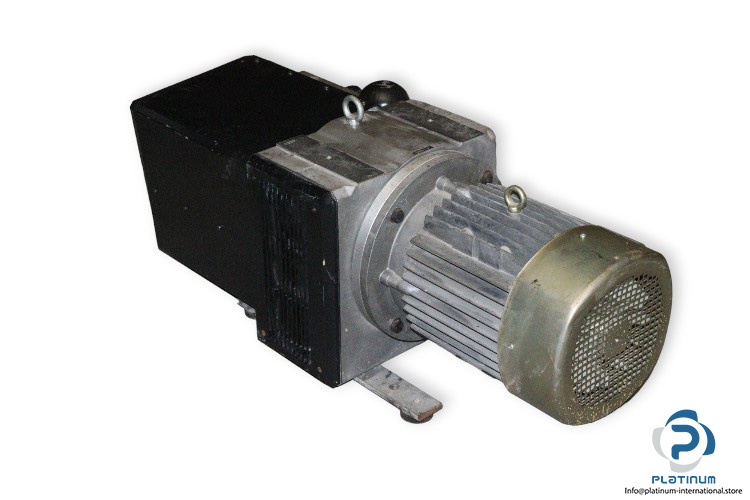

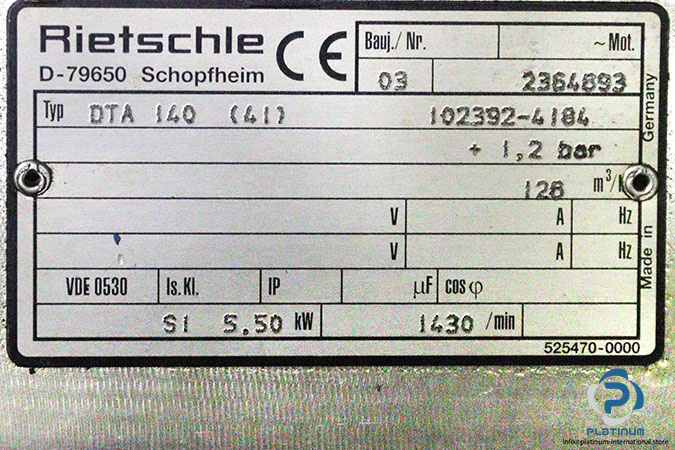

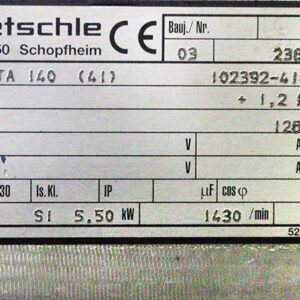

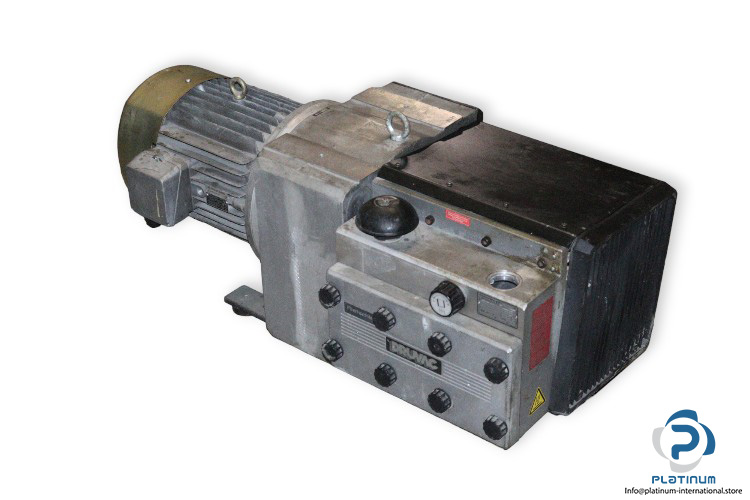

Rietschle DTA 140 Vacuum Pump

Manufacturer: Rietschle
Type: Vacuum Pump
Model: DTA140

Rated Pressure [bar]: +1.2
Max. Flow Rate [m³/min]: 126
Rated Power [kW]: 5.5
Rated Speed [rpm]: 1430

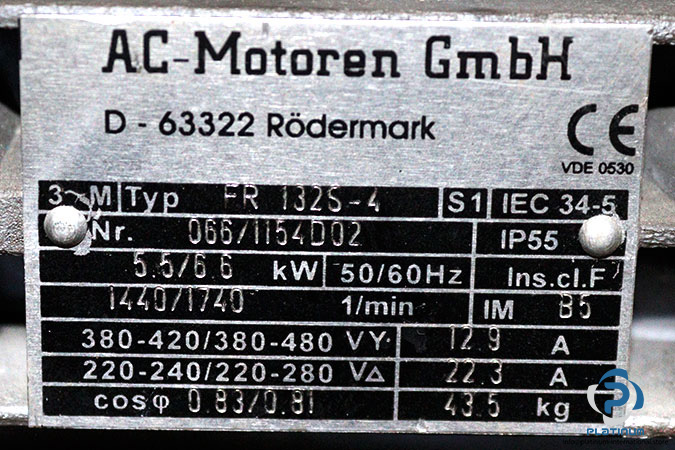

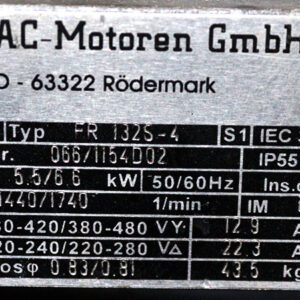

Attachment: AC-Motoren GmbH FR 132S-4 3-Phase Electric Motor
Manufacturer: AC-Motoren GmbH
Type: 3-Phase Electric Motor
Model: FR 132S-4
Rated Power [kW]: 5.5/6.6
Supply Voltage [V]: 380-420/380-480 Star
Supply Voltage [V]: 220-240/220-280 Delta
Rated Current [A]: 12.9/22.3
Frequency [Hz]: 50/60
Rated Speed [rpm]: 1440/1740
Protection Class [IP]: 55
Power Factor [cos]: 0.83/0.81
Mounting Position [IM]: B5
Duty: S1
Insulation Class: F
