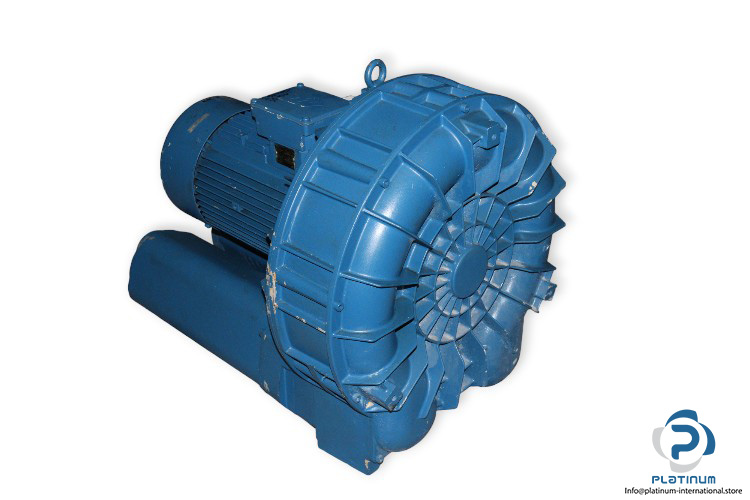

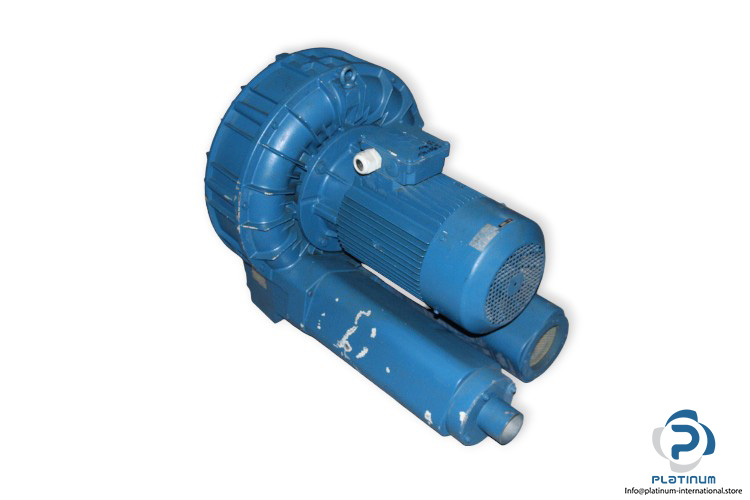

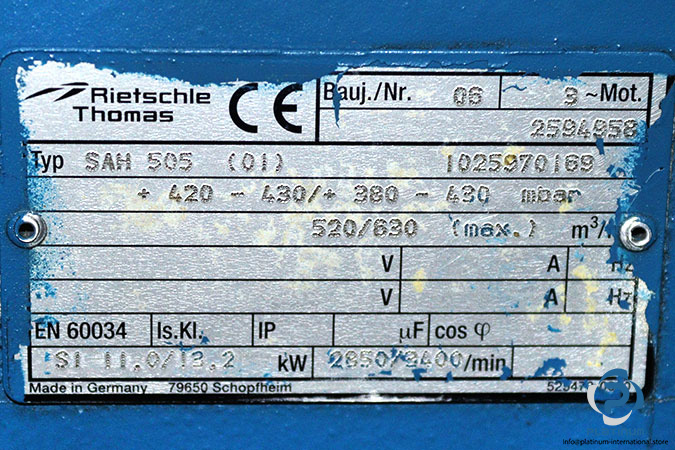

Rietschle Thomas SAH 505 Single Side Channel Blower

Manufacturer: Rietschle Thomas
Type: Single Side Channel Blower
Model: SAH505

Channel Design: Single
Rated Pressure [mbar]: +420 -430/+380 -430
Max. Flow Rate [m³/min]: 520/630
Rated Power [kW]: 11.0/13.2
Rated Speed [rpm]: 2850/3400

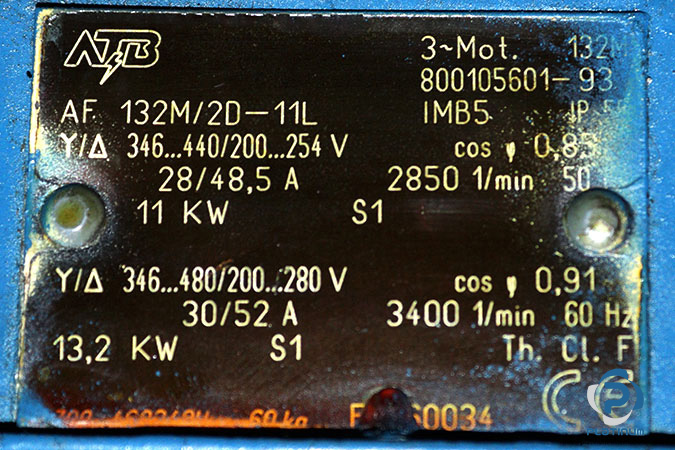

Attachment: ATB AF 132M/2D-11L 3-Phase Electric Motor
Manufacturer: ATB
Type: 3-Phase Electric Motor
Model: AF 132M/2D-11L
Rated Power [kW]: 11/13.2
Supply Voltage at 50Hz [V]: 346-440/200-254
Supply Voltage at 60Hz [V]: 346-480/200-280
Rated Current [A]: 28-48.5/30-52
Frequency [Hz]: 50/60
Rated Speed [rpm]: 2850/3400
Protection Class [IP]: 55
Power Factor [cos]: 0.85/0.91
Mounting Position [IM]: B5
Duty: S1
Insulation Class: F
