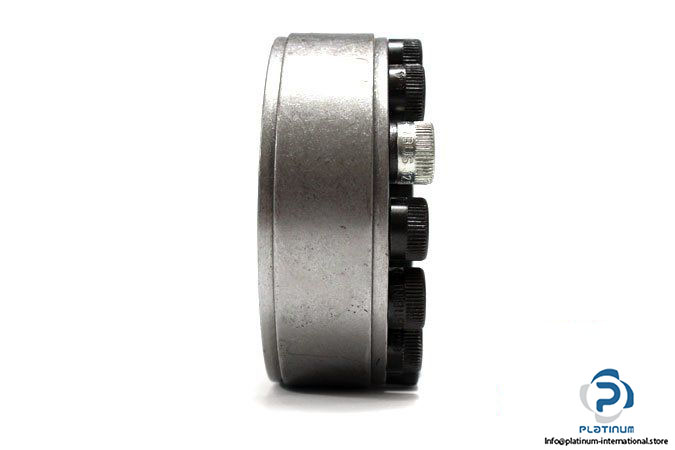

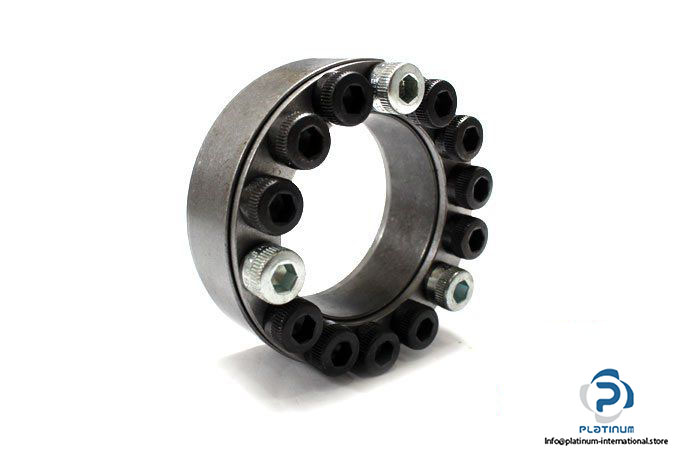

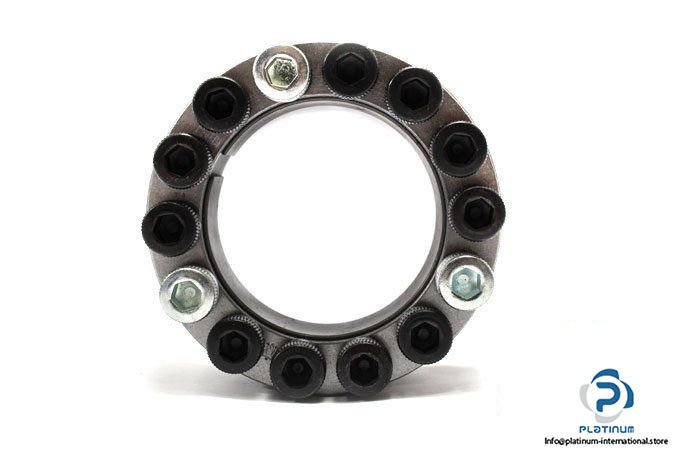

Ringfeder 55X85 RFN 7012 Locking Assembly

Manufacturer: RINGFEDER

Type: LOCKING ASSEMBLY

Model: 55X85 RFN 7012

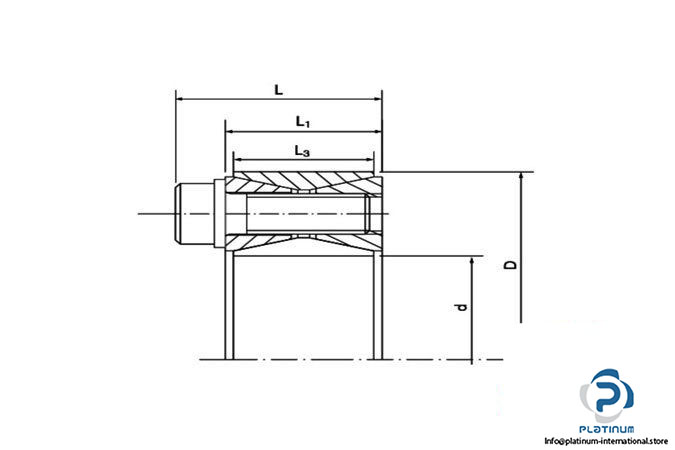

Inner diameter (d): 55 mm

Outer diameter (D): 85 mm

Overall length (L): 33.5 mm

Overall length, without screws (L1): 24 mm

Width of ring (L3): 20 mm

Max. Tightened torque of the clamping screws (TA): 41 Nm

Transmissible torque (given TA): 2656 Nm

Transmissible torque max.: 3296 Nm

Surface pressure on shaft (given TA): 233 N/mm²

Surface pressure on hub (given TA): 151 N/mm²

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
