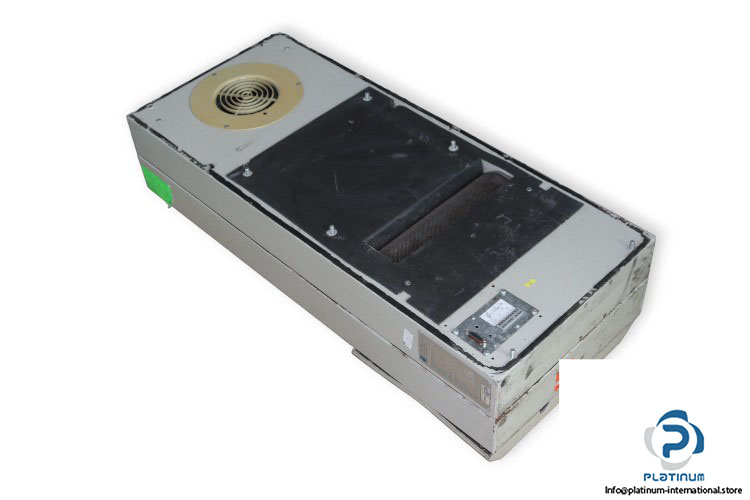

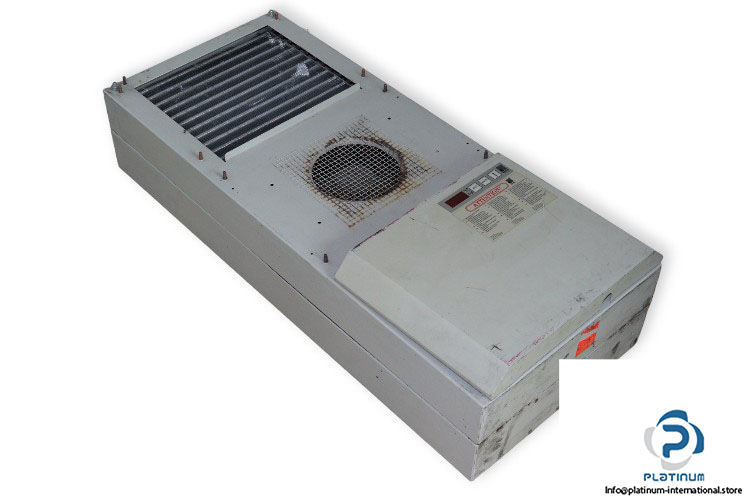

Rittal SK 3293540 Enclosure Cooling Unit
Gebraucht

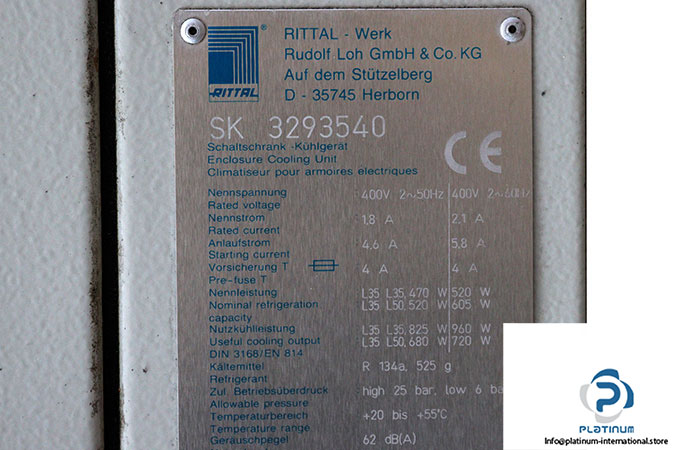

Manufacture: Rittal
Type: Enclosure Cooling Unit
Model: SK3293540
Series: SK
Rated Voltage: 400 V AC /2-phase
Frequency: 50/60 Hz
Rated current max.:
At 50 Hz: 1.8 A
At 60 Hz: 2.1 A
Start-up current max.:
At 50 Hz: 4.6 A
At 60 Hz: 5.8 A

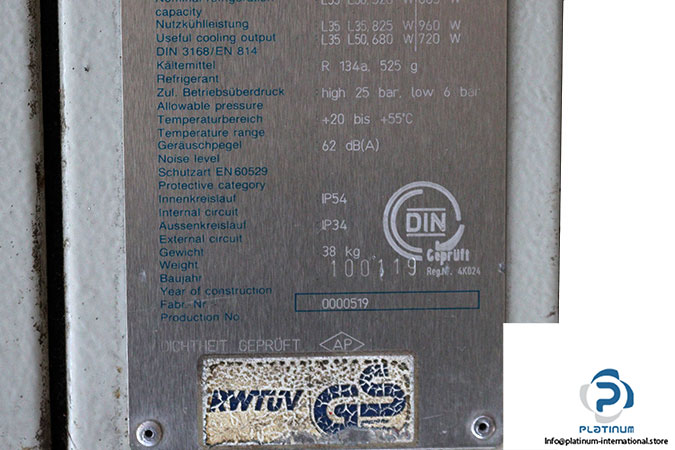

Nominal refrigeration capacity: L35 L35 (470/520 W), L35 L50 (520/605 W) , L35 L35 (825/960 W), L35 L50 (680/720 W)
Noise level: 62 dB(A)
Refrigerant: R 134a,525 g
Allowable pressure: High 25 bar, low 6 bar
Pre-fuse T: 4 A
Temperature range: 20 … 55°C
Protection degree: External circuit IP 34, Internal circuit IP 54
Dimensions: 400 x 950 x 230 mm
