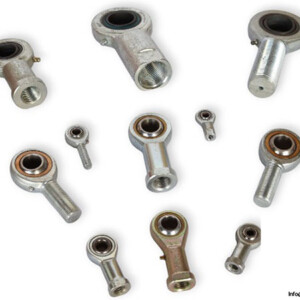

Rodobal RF14S ROD END

Manufacturer: RODOBAL
Type: Rod End, Female thread
Model: RF14S

Dimensions
Bore Diameter d: 14 mm
Outer diameter D: 36 mm
Width B: 19 mm
Thread designation: M14x2
Sliding contact surface combination: Brass/stainless steel
Attachment feature, rod end shank: Right-hand female thread
Static Max.
Radial: 2080 daN
Axial: 930 daN
