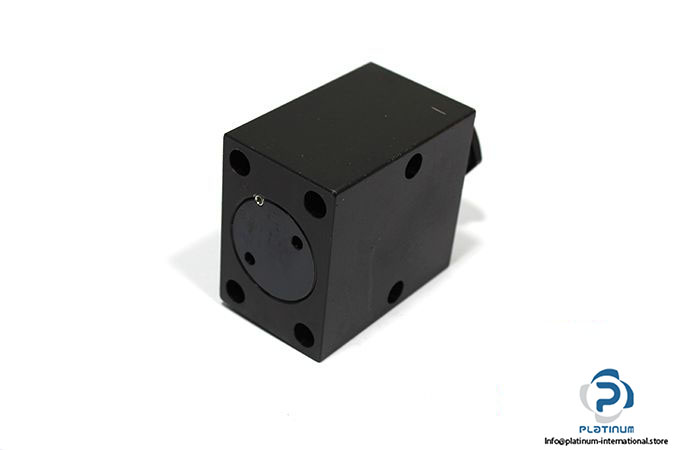

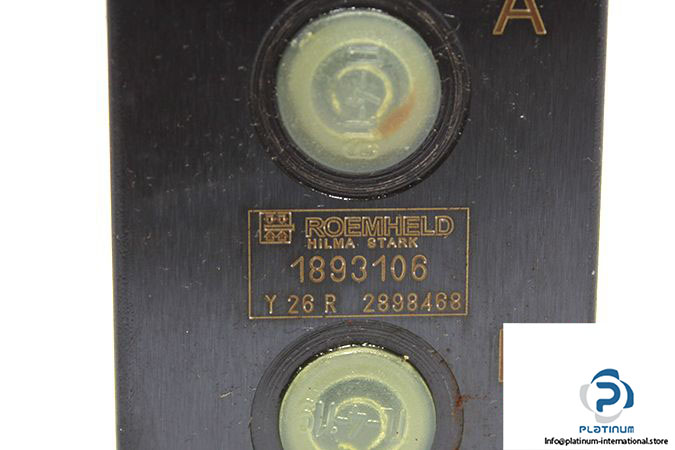

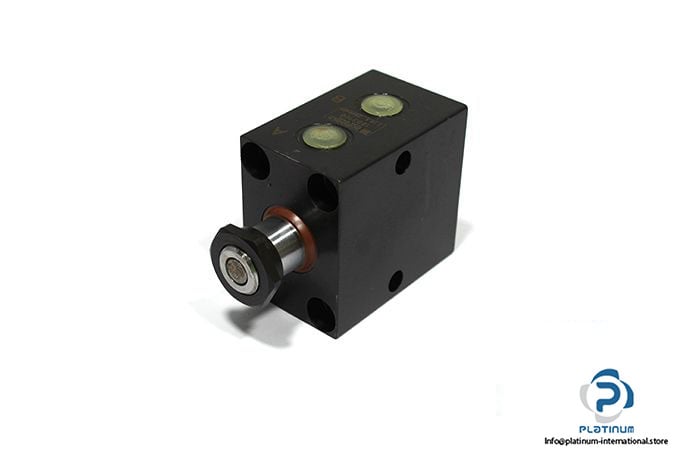

Roemheld 1893106 Swing Clamp

Manufacturer: Roemheld

Type: Hydraulic Actuator

Model: 1893106

Swing clamp with overload protection device

Piston Diameter: 25 mm

Rod Diameter: 20 mm

Clamping Stroke: 7 mm

Swing Stroke: 7 mm

Total Stroke: 14 mm

pulling force [kN]: max. 8.84

Cylinder Shape: Block-type

Mode of operation: Double-Acting

Maximum operating pressure: 500 bar

Piston rod end: Male thread

Connection: G 14

Weight: 1.4 kg
