Roline RS232-RS485 Interface Converter
Neu
Auf Lager1 EinheitVersandbereit
199,99$
INTERFACE CONVERTER

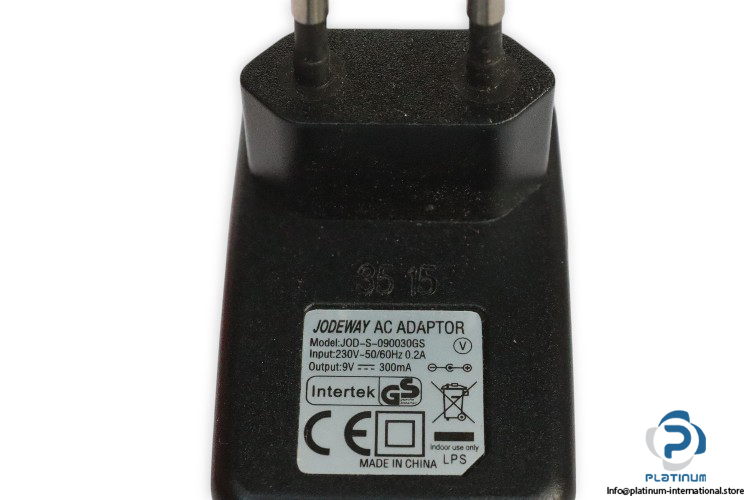

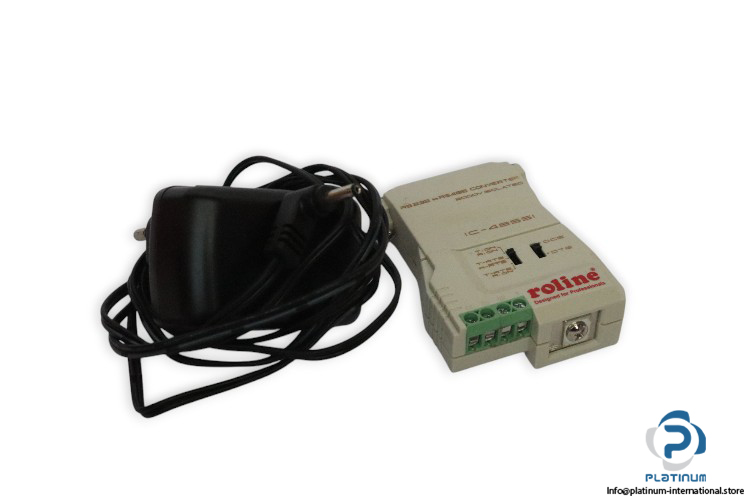

Roline (SECOMP) RS232-RS485 Interface Converter with four terminal block, 230 V input, 9 V output, and 1.8 W consumption. Supplied with JODEWAY 9V/300 mA AC Adaptor.300mA9VACAdapterAdaptorCommunicationConverterDataIndustrialInterfaceJodewayPowerRolineRS232RS232-RS485RS485SecompSerialsupplytoTransmission
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

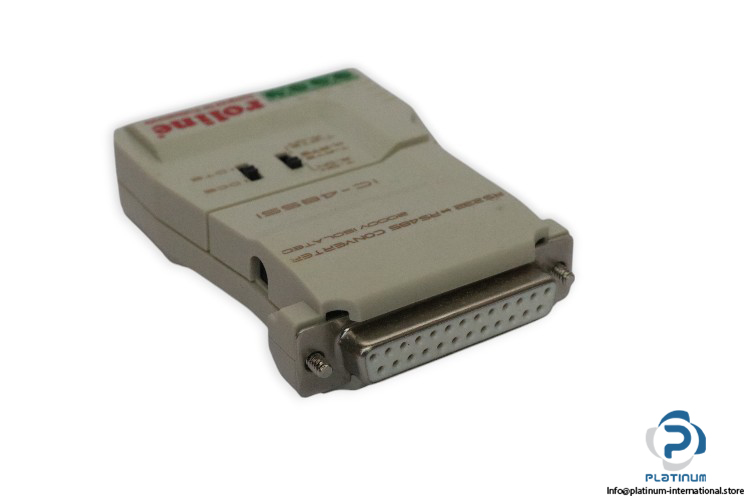

ROLINE (SECOMP) RS232-RS485 INTERFACE CONVERTER
The Roline (SECOMP) RS232-RS485 Interface Converter is designed for reliable serial communication between RS232 and RS485 devices. Built with durable housing and efficient power management, it ensures stable data transmission for industrial and commercial applications. Delivered with a JODEWAY AC Adaptor for consistent power supply.
Manufacturer: Roline (SECOMP)
Type: Interface Converter
Model: RS232-RS485

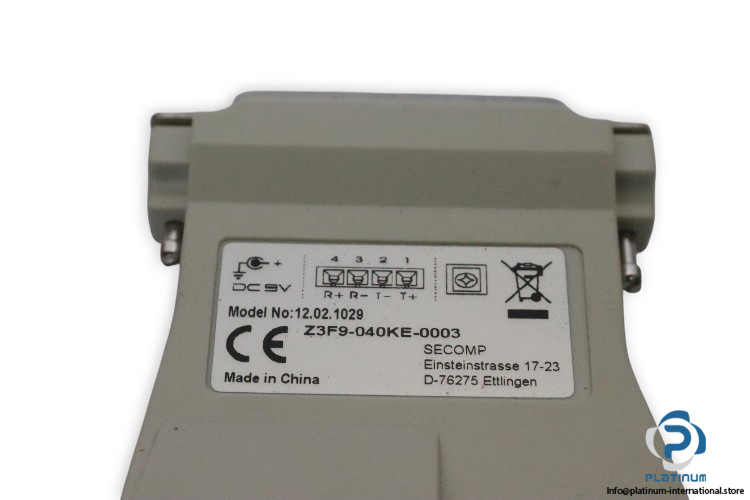

Part No.: 12.02.1029
Code: Z3F9-040KE-0003
Attached With
| Input Voltage | 230 V |
| Frequency | 50/60 Hz |
| Input Current | 0.2 A |
| Output Voltage | 9 V |
| Output Current | 300 mA |
| Power Consumption | 1.8 W |
| Connectors | Four Terminal Block |
| Operating Temperature | 0 to 50°C |
| Housing Material | Plastic |
| Dimensions (L x W x H) | 5.40 x 7.45 x 1.85 cm |
| Input | 230 V @ 50/60 Hz @ 0.2 A |
| Output | 9 V / 300 mA |
