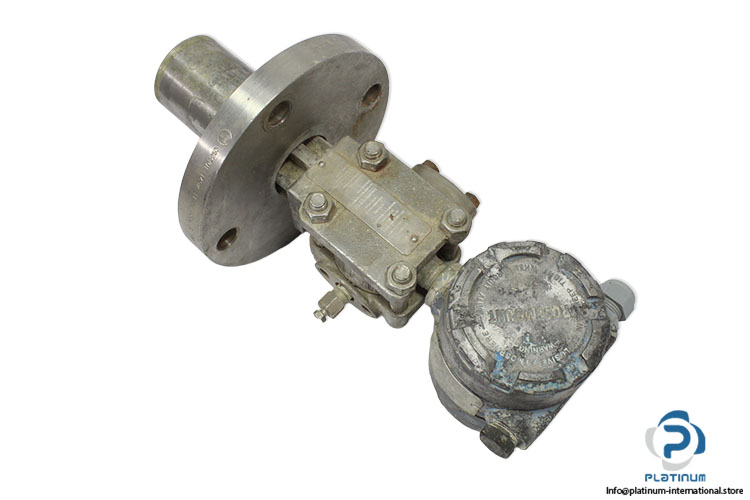

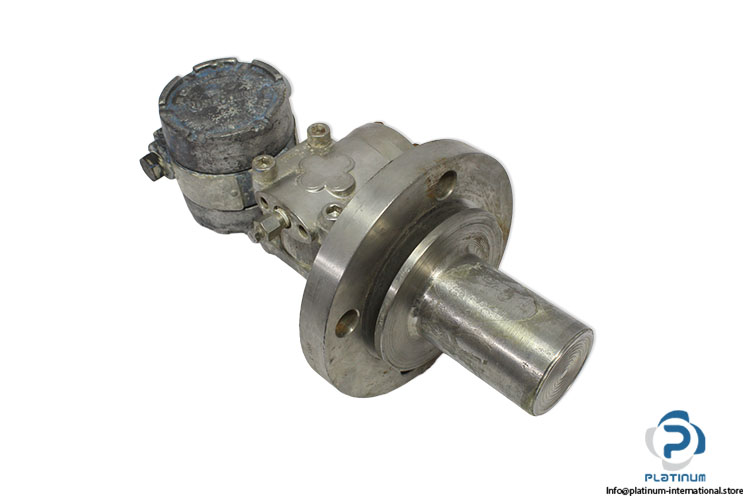

Rosemount 1151 LT5SA4F22D Pressure Transmitter
Gebraucht
Auf Lager1 EinheitVersandbereit
699,99$
The ROSEMOUNT 1151 LT5SA4F22D is a high-precision industrial pressure transmitter designed for reliable pressure and level measurement in process automation systems. Featuring 4–20 mA output, 316 SST wetted materials, and wide operating temperature capability for demanding industrial environments.
Pressure Range:
0 – 4280 mmH2O
Output:
4 … 20 mA
Power Supply:
Max. 45 VDC
Wetted Materials:
316 SST With Silicone Fill
Max W,F:
150.LBS
Stock Key:
COO-003
3164-20mAAutomationdifferentialIndustrialInstrumentationLevelPRPressureProcessRosemountSensorSSTTransmitter
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

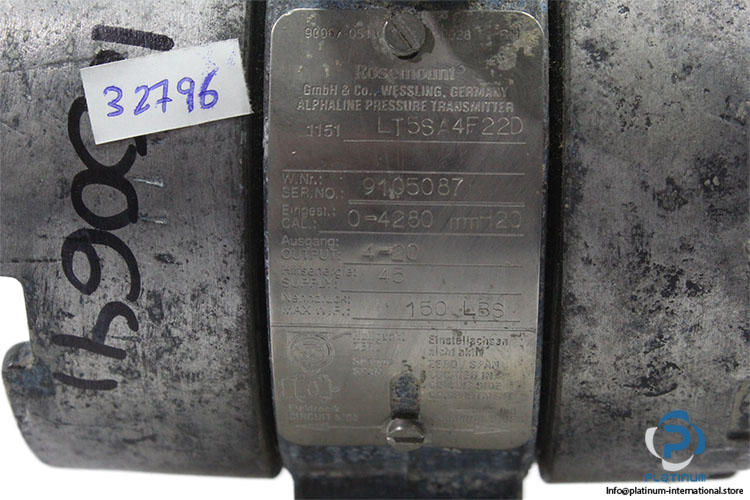

| Ser. No. | 9105087 |

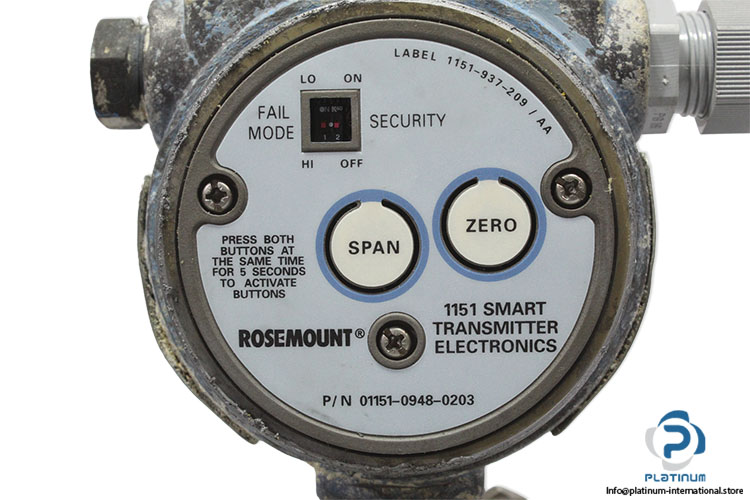

| Part No. | 01151-0948-0203 |

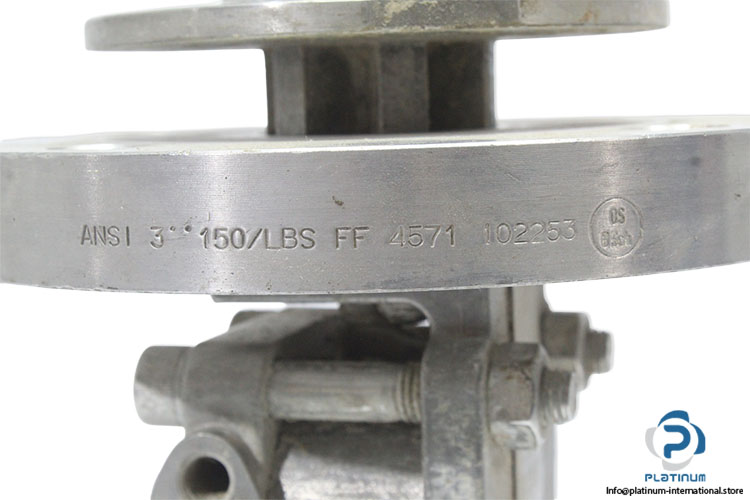

| Code | ANSI 3 150/LBS FF 4571 102253 |
| Label No | 1151-937-209 /AA |
| Pressure Range | 0 - 4280 mmH2O |
| Wetted Materials | 316 SST with Silicone fill |
| Max W,F | 150.LBS |
| Power Supply | max. 45 VDC |
| Output | 4 … 20 mA |
| Silicone Fill Sensor | –40 to 220 °F (–40 to 104 °C) |
| Inert Fill Sensor | 0 to 160 °F (–18 to 71 °C) |
| Stock Key | CON-003 |
| Condition | Used |
| SKU | 1099040 |
| Weight | 11,75 |
