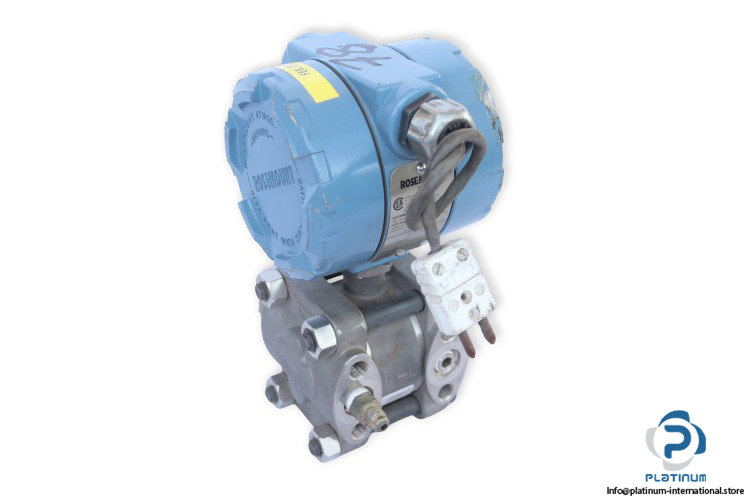

Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter
449,00$
Gage Pressure Transmitter

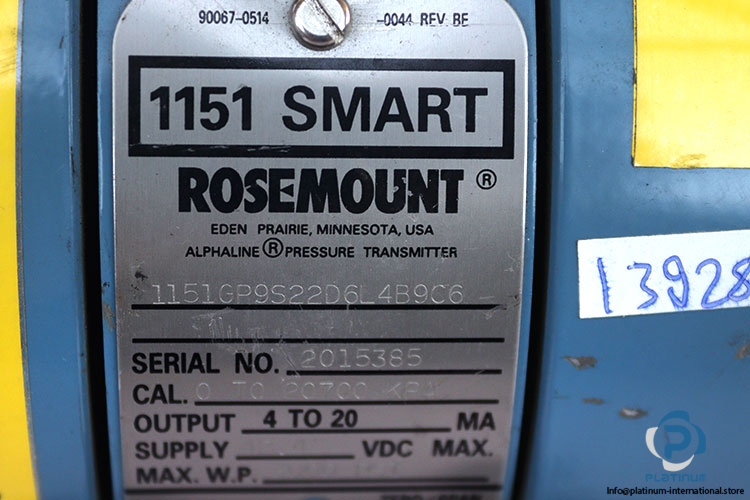

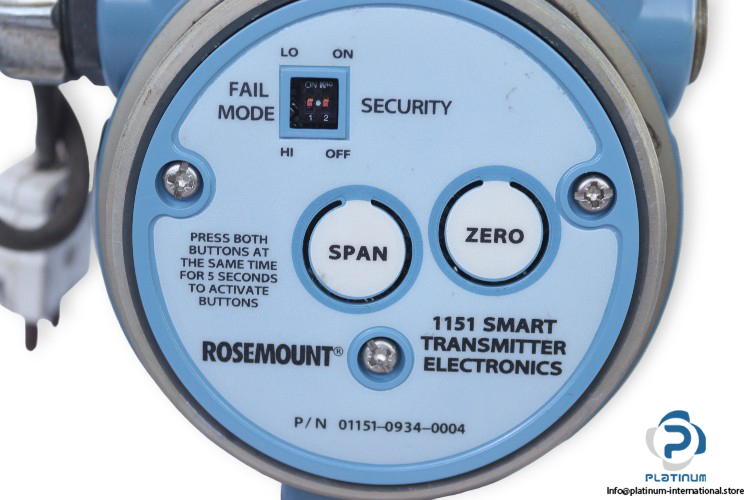

The Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter offers precise pressure measurement up to 3000 PSI, 4“20 mA output, and includes the 1151 SMART Electrical Insert for enhanced compatibility and performance.Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter with 1151 SMART Electrical Insert
The Rosemount 1151GP9S22D6L4B9C6 is a high-accuracy gage pressure transmitter designed for industrial pressure measurement in demanding environments. It includes a Rosemount 1151 SMART Electrical Insert, ensuring enhanced performance and compatibility.
Manufacturer: ROSEMOUNT
Type: Gage Pressure Transmitter
Model: 1151GP9S22D6L4B9C6
Material:
Attachment:

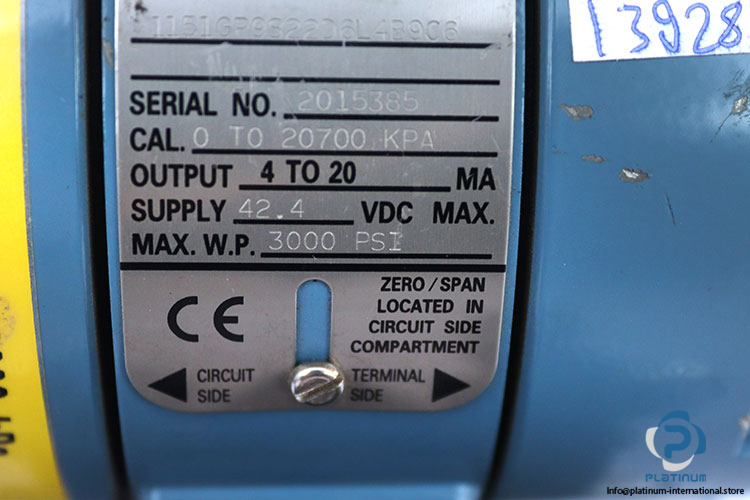

| Measure Pressure Limit | 3000 PSI / 20700 kPa |
| Supply Voltage | 42.4 V DC |
| Output Current | 4 / 20 mA |
| Fill Fluid | Silicon |
| Housing | Aluminum |
| Isolating Diaphragm | 316L SST |
| Flanges/Adapters | 316 SST |
| O-Ring/Bolting | 316L SST |
| Protection Class | IP66 |
| Temperature Range | -40 / 85°C |
| Dimensions | 229 x 114 x 114 mm |
| Part No. | 01151-0934-0004 |
