Rosemount 3051 L4 AC2 TD22 AA L4 Q4 Differential Pressure Transmitter
Neu
Auf Lager1 EinheitVersandbereit
990,00$
Differential Pressure Transmitter
The Rosemount 3051 L4 AC2 TD22 AA L4 Q4 Differential Pressure Transmitter provides high-accuracy pressure measurement with HART® communication, wide pressure range, and robust aluminum housing with IP66 protection.03031-033225030513164-2080AlloyAutomationbarC-276differentialDNElectronicFillFlangeFluidHartIndustrialinsertIP66mAMeasurementOutputPressureProtectionProtocolRosemountSiliconeSSTTransmitter
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Rosemount 3051 L4 AC2 TD22 AA L4 Q4 Differential Pressure Transmitter
The Rosemount 3051 L4 AC2 TD22 AA L4 Q4 is a high-precision differential pressure transmitter engineered for reliable performance in industrial measurement applications. Designed with durable materials, HART® digital output, and wide pressure and temperature ranges, it delivers accurate and efficient pressure monitoring.
Manufacturer: ROSEMOUNT
Type: Differential Pressure Transmitter
Model: 3051 L4 AC2 TD22 AA L4 Q4
Material:
Attachment:

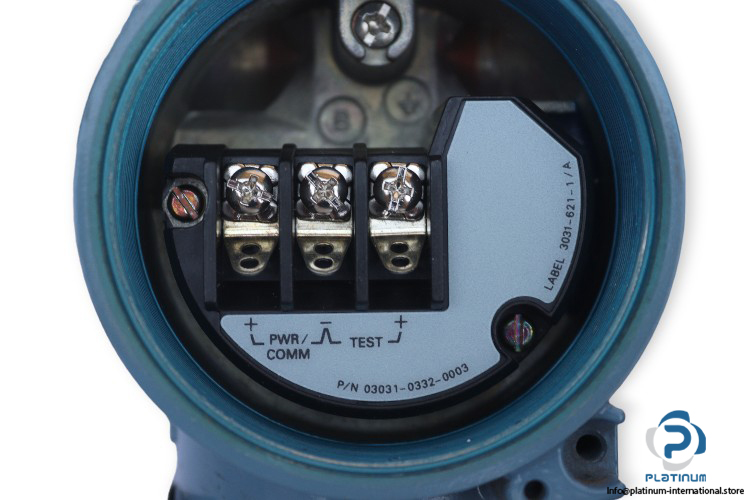

ROSEMOUNT 03031-0332-0003 ELECTRICAL INSERT
| Setpoint Pressure Range | -20.7 / 20.7 bar / -300 / 300 PSI |
| STAT Pressure | 250 bar |
| Span | 0“0.21 / 20.7 bar |
| Supply Voltage | 10.5 / 55 V DC |
| Digital Output Signal | 4 / 20 mA Based on HART® Protocol |
| Power Consumption | 18 / 36 mW |
| Sensor Fill Fluid | Silicone 200 |
| Housing | Aluminum |
| Isolating Diaphragm | Alloy C-276 |
| Flange Adapter | 316 SST |
| O-Ring | Glass-Filled PTFE |
| Bolting | Austenitic 316 SST Bolts |
| Protection Class | IP66 |
| Temperature Range | -40 / 85 °C |
| Flange Size | DN 80 |
| Dimensions | 209 x 104 x 130 mm |
| Supply Voltage | 10.5 / 55 V DC |
| Output Current | 4 / 20 mA HART |
