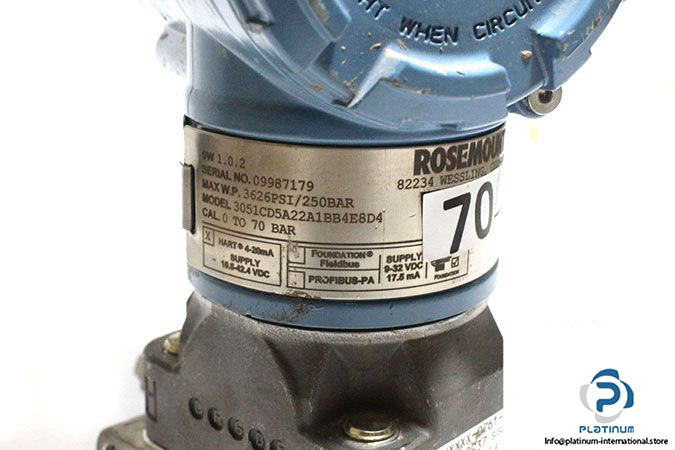

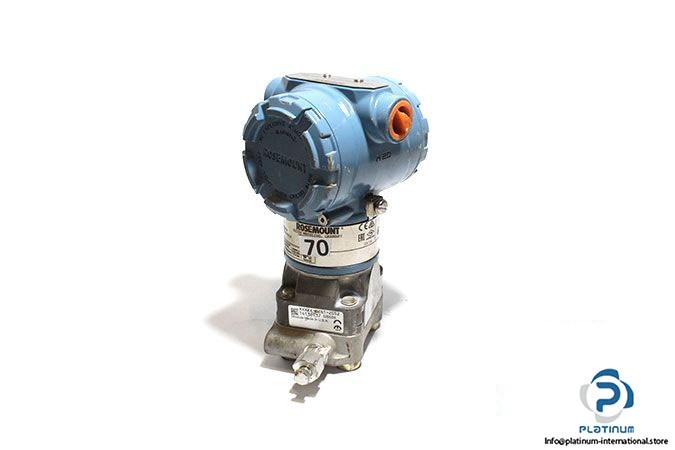

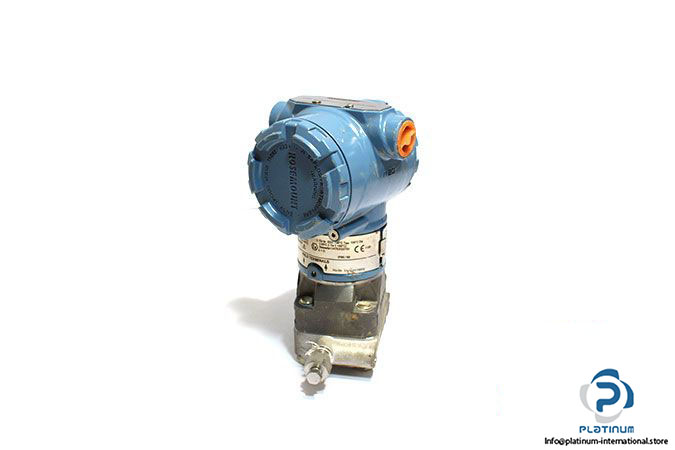

Rosemount 3051CD5A22A1BB4E8D4 Differential Pressure Transmitter
Manufacturer: Rosemount
Type: Pressure Transmitter
Model: 3051CD 5A22A1BB4E8D4
Process Flange Type | Flange Material | Drain Vent: 2: Coplanar | SST | SST
Isolating Diaphragm: 2: 316L SST
O-Ring: A: Glass-filled PTFE
Sensor Fill Fluid: 1: Silicon
Housing Material | Conduit Entry Size: B: Aluminium| M20 x 1.5
Transmitter Output: A : 4-20 mA with Digital Signal Based on HART Protocol
Pressure Range: 5 : -2000 to 2000 psi (-137.9 to 137.9 bar)
Product Certifications: E8 : ATEX Flameproof and Dust
Mounting Bracket: B4 : Coplanar Flange Bracket for 2-in. Pipe or Panel Mounting,all SST
Configuration Buttons: D4: Analog Zero and Span
Calibrated: 0 … 70 bar
Supply: 9 … 32 V DC
Weight: 3 kg
