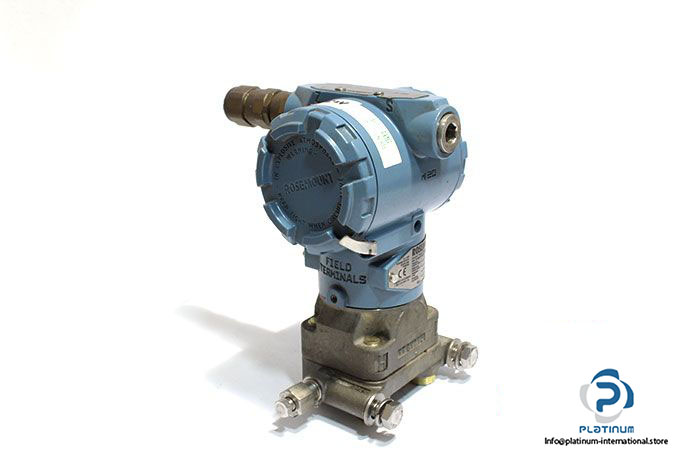

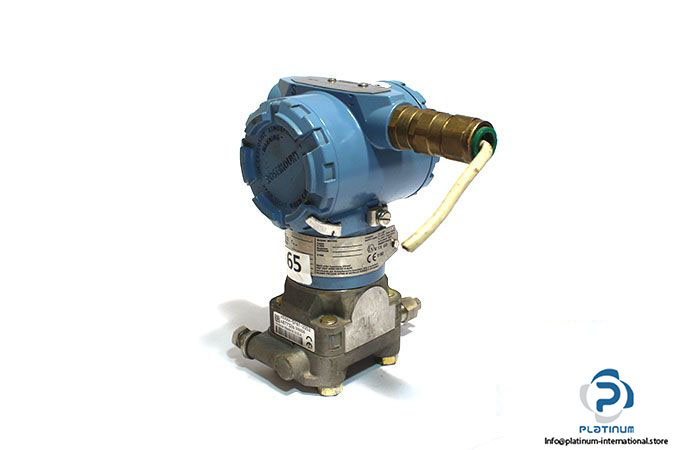

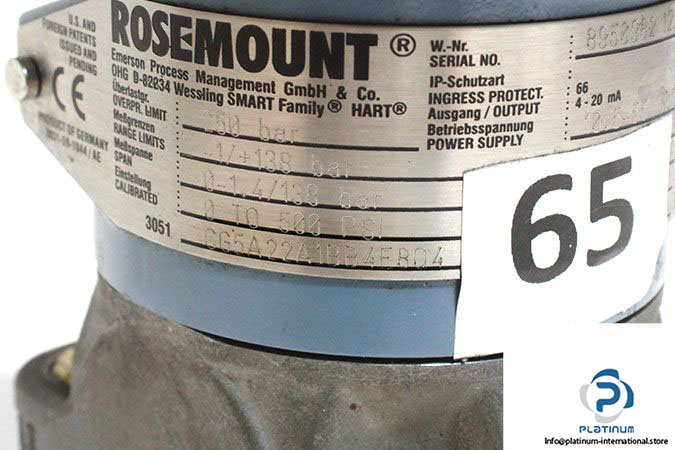

Rosemount 3051CG5A22 A1BB4E804 Coplanar Pressure ‎Transmitter

Manufacturer: Emerson Rosemount

Type: Pressure Transmitter

Model: 3051CG 5A22A1BB4E804

Over Limit: 250 bar

Range Limits: -1/+138 bar

Span: 0-1.4/138 bar

Calibrated: 0 … 34.4 bar

Output Range: 4 … 20 mA

Power Supply: 10.5 … 55 V DC

Pressure range: – 0.97 to 137.89 bar

Transmitter output: 4–20 mA with digital signal based on HART® Protocol

Product certification: ATEX Flameproof and Dust Certification

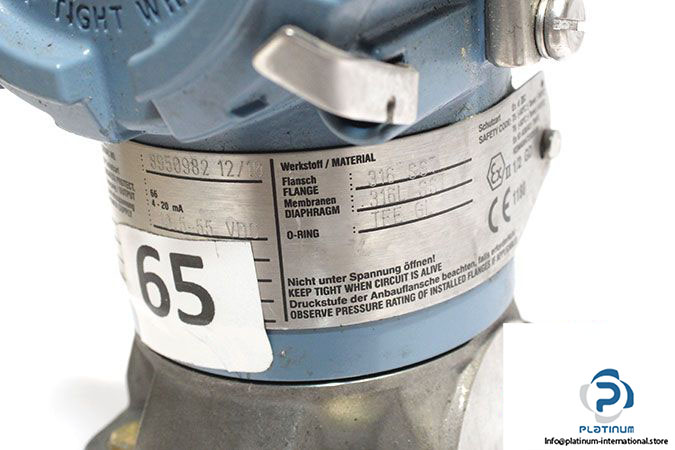

Materials of construction:

Transmitter flange type: Coplanar

Flange material/Drain: SST

O-ring: Glass-filled PTFE

Isolating diaphragm: 316L SST

Sensor fill fluid: Silicone

Housing material: Aluminum,

Conduit entry size: ½–14 NPT

Weight: 3.2 kg
