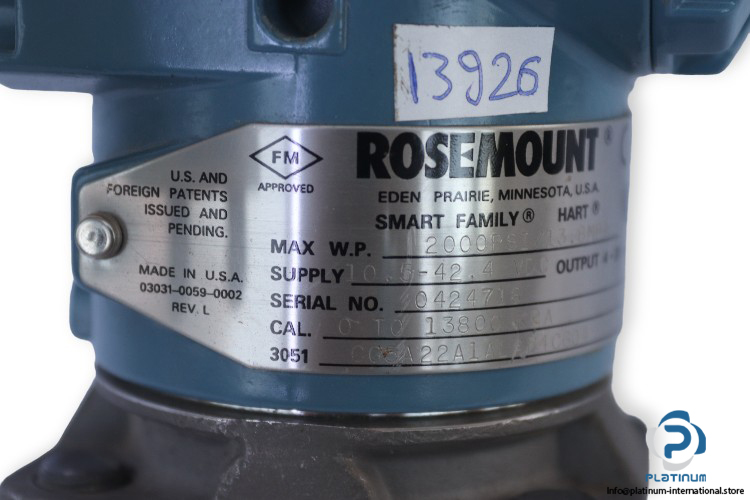

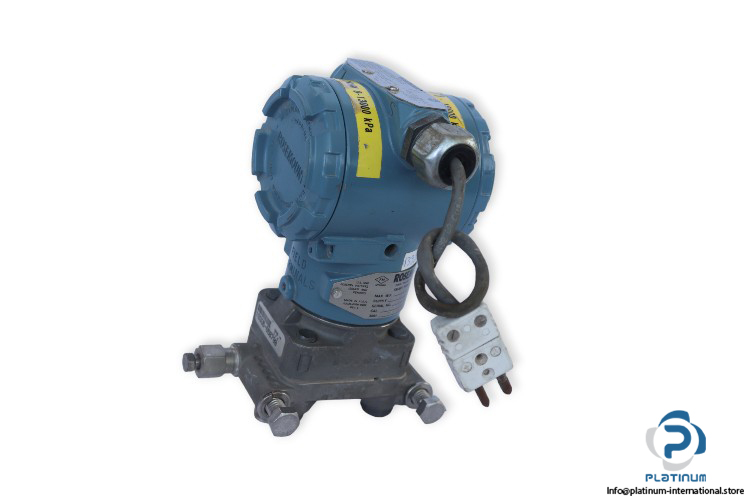

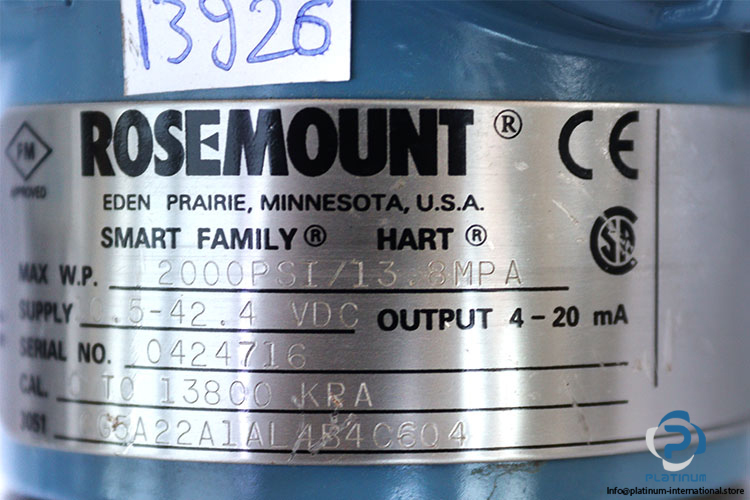

Rosemount 3051CG5A22A1A L4B4C6Q4 Coplanar Gage Pressure Transmitter

Manufacturer: ROSEMOUNT
Type: Coplanar Gage Pressure Transmitter
Model: 3051CG5A22A1AL4B4C6Q4

Pressure Range: -14 … 2000 PSI / -0.97 … 137.89 bar / 13.8 MPA
Supply Voltage: 10.5 … 42.4 V DC
Digital Output Signal: 4 … 20 mA Based on HART® Protocol
Power Consumption: 18 … 36 mW
Fill Fluid: Silicon Fluid
Material:
Housing: Aluminum
Isolating Diaphragm: 316L SST
Coplanar Flange: SST
O-Ring/Bolting: Glass-Filled PTFE /Austenitic 316 SST Bolts
Protection Class: IP66/67/68
Temperature: -40 … 85°C
Dimensions: 181 x 166 x 109 mm
