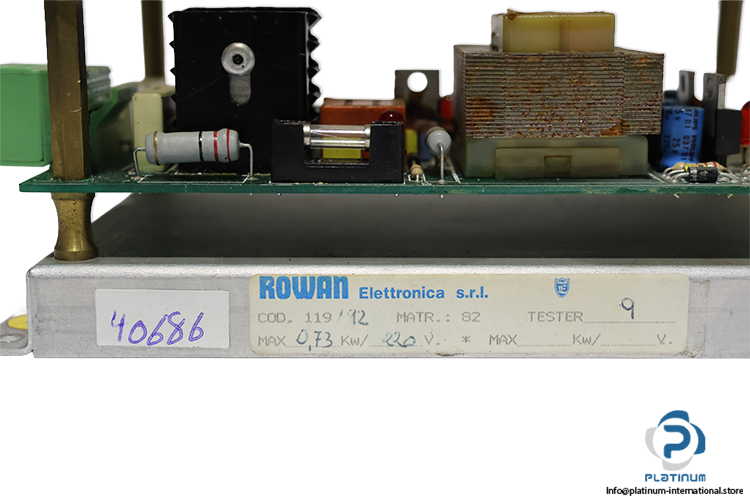

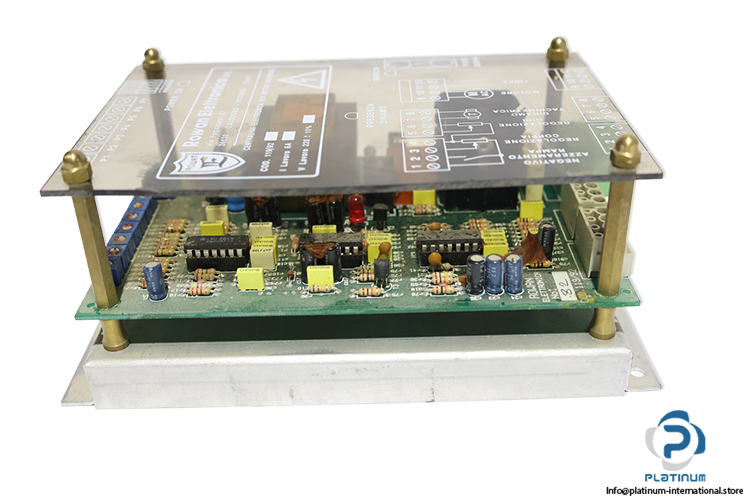

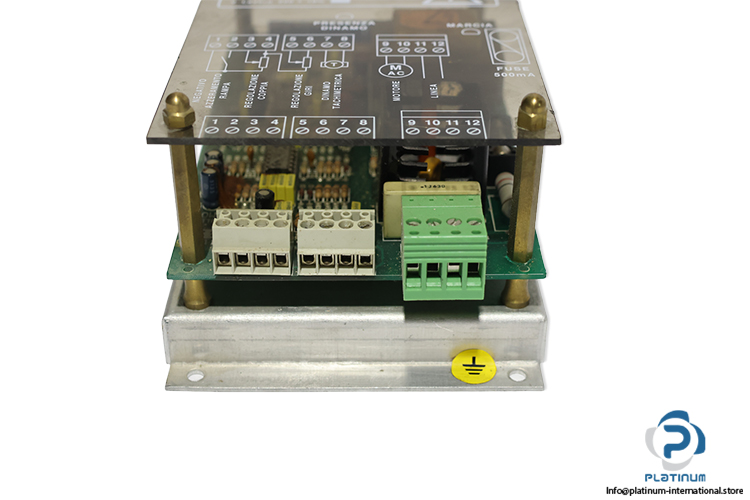

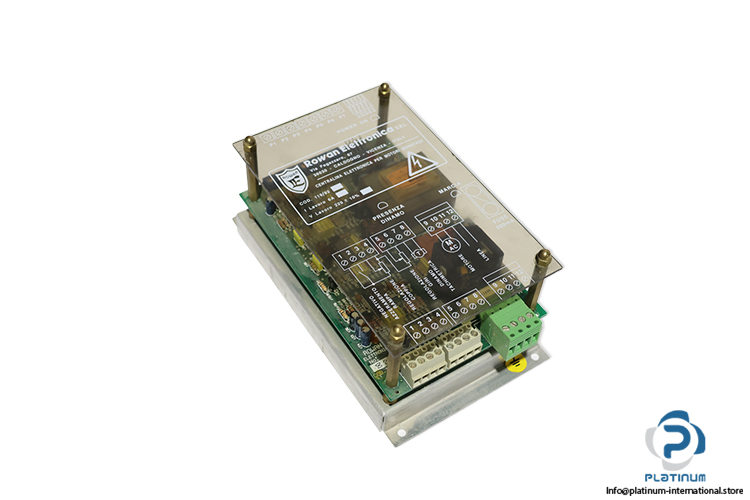

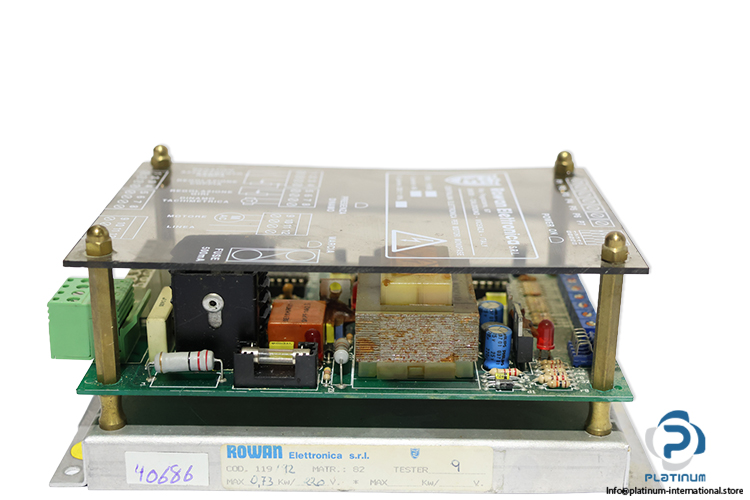

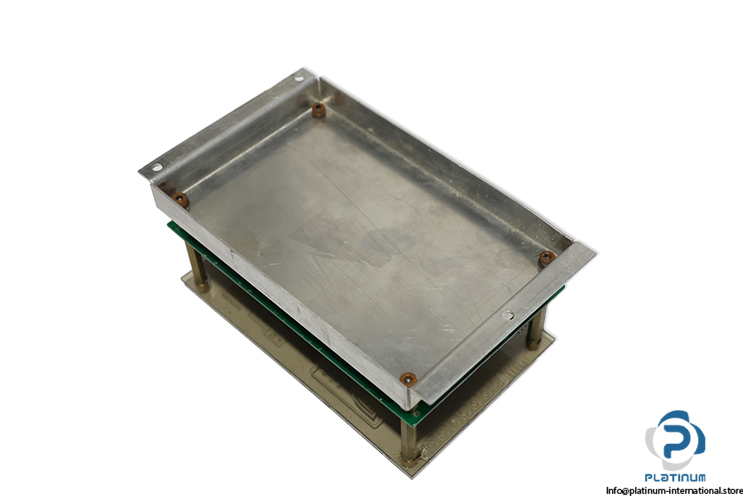

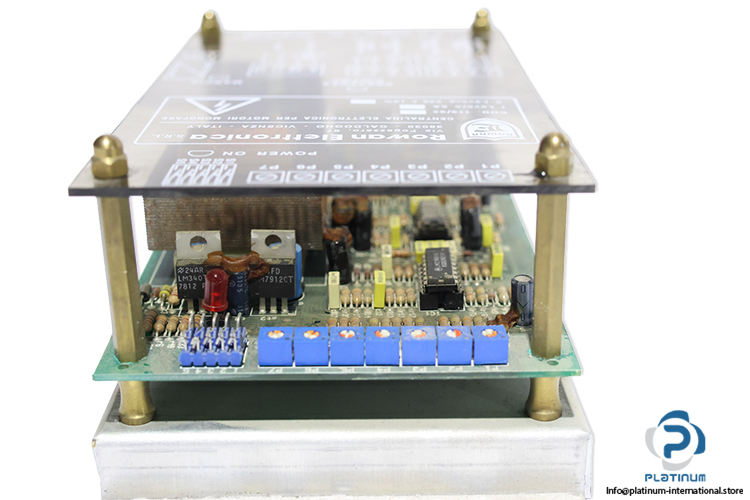

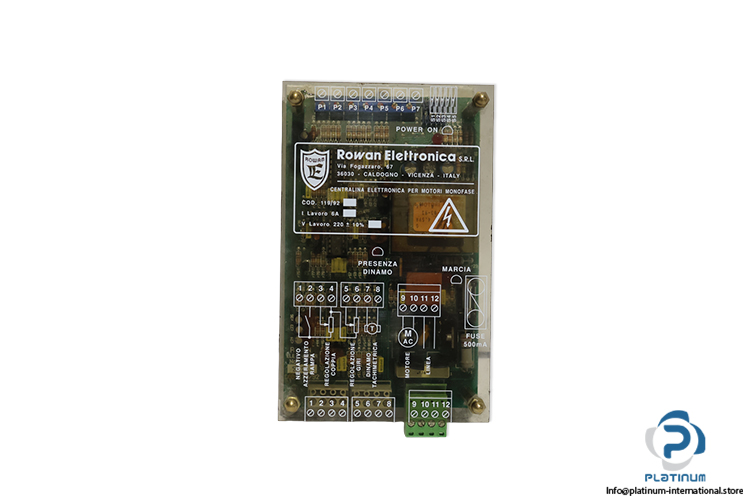

Rowan Elettronica 119/92 Single-Phase Voltage Regulator
Gebraucht
Auf Lager1 EinheitVersandbereit
for 2, 4, and 6-pole Rowan motors. Features 230V AC supply, 50/60 Hz frequency, adjustable speed and torque control, 0–10V DC input, and IP20 protection.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Supply Voltage | 230V AC ±10% |
| Frequency | 50/60 Hz |
| Motor Type | Rowan single-phase motors, 2, 4, 6 poles |
| Tachometer Signal | 10V DC at 1400 RPM; 20V DC at 2800 RPM |
| Speed Control | Potentiometer or 0–10V DC signal |
| Driving Circuit Protection | 500 mA fuse |
| Torque Control | Internal trimmer, external potentiometer, or 0–10V DC signal |
| Run/Stop Input | Dry contact or NPN open-collector transistor |
| Run/Stop Input Rating | 12V DC, 2 mA |
| Internal Adjustments | Acceleration/deceleration ramp, maximum/minimum speed, maximum/minimum torque, and stability |
| LED Indicators | Power ON, tachometer generator presence, and motor RUN |
| Terminal Connections | Cage-clamp terminals; screw-clamp power terminals on type 119/92 |
| Protection Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105071 |
| Weight | 0,53 |
