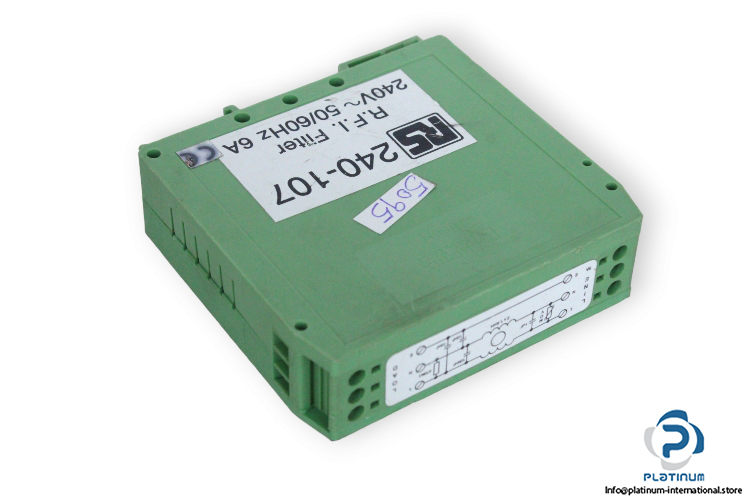

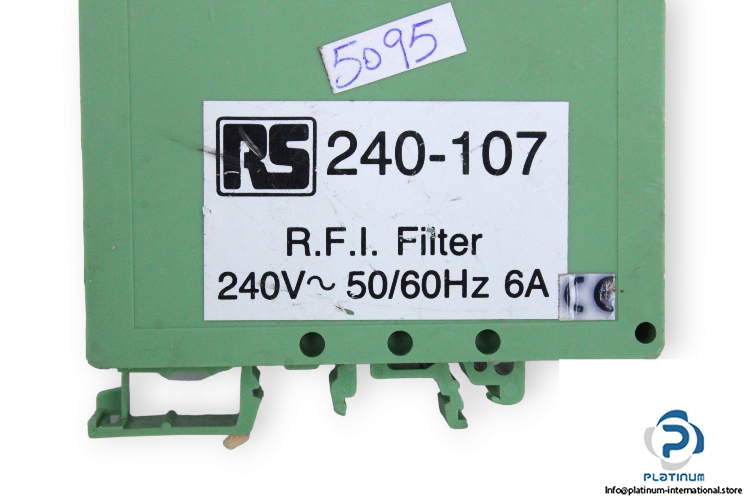

RS 240-107 RFI Filter

Manufacture: RS
Type: Rfi Filter
Model: 240-107

Maximum Current Rating: 6 A
Maximum Voltage Rating: 240 V AC
Frequency: 50/60 Hz
Mounting Type: DIN Rail
Termination Style: Screw
Number of Phases: 1
Operating Frequency: 0 → 440Hz

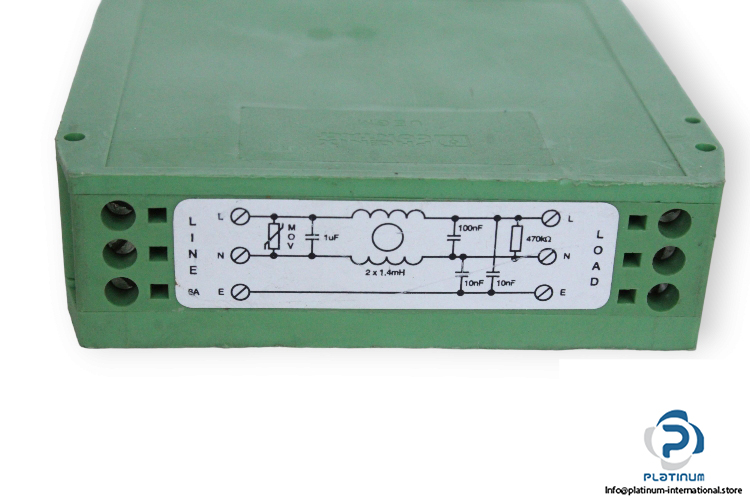

Capacitance: 1µF
Inductance: 1.4 mH
Leakage Current: 1.46 mA
Resistance: 470 kΩ
Power Loss: 0.68 W
Protection degree: IP20
Operating Temperature  : -25 … 85°C
Dimensions: 80 x 22.5 x 93mm
