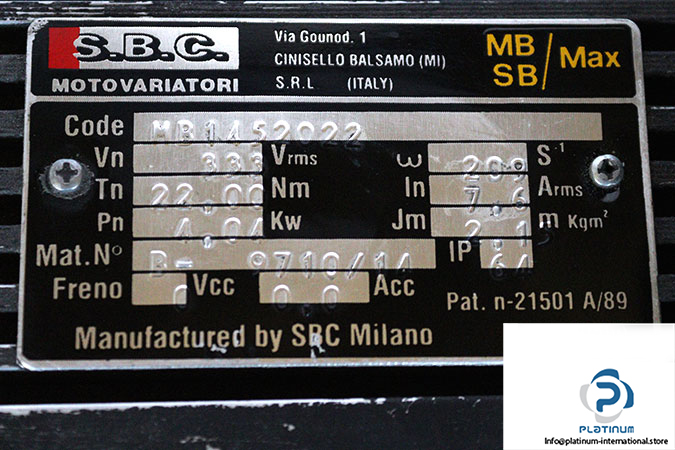

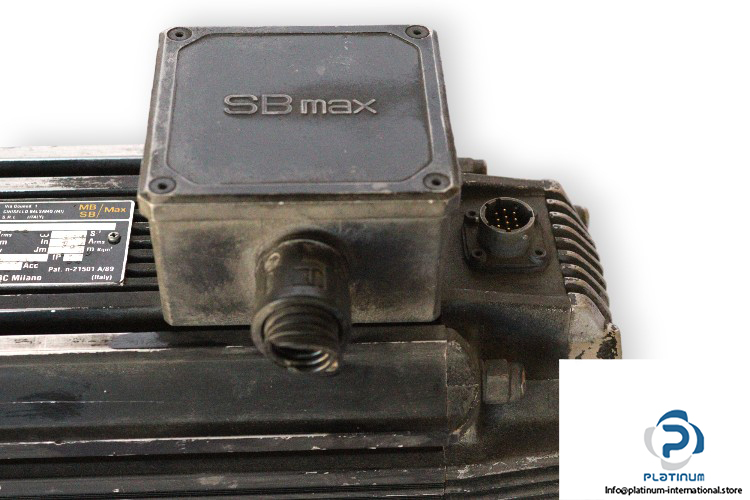

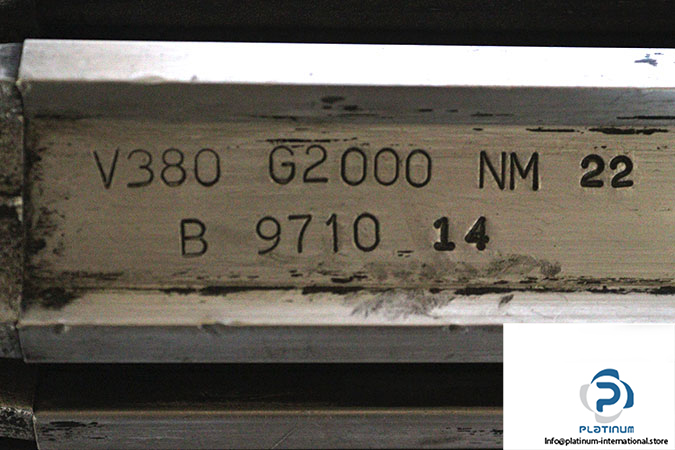

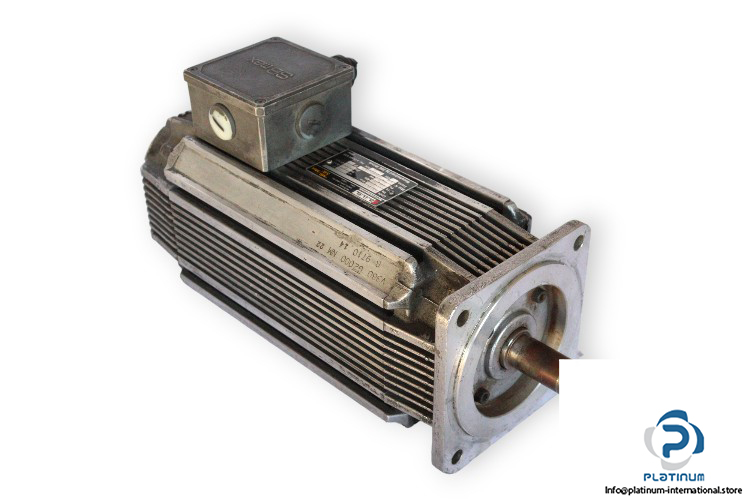

S.B.C MB1452022 Servo Motor

Manufacturer: S.B.C /Parker Automation
Type: Brushless Motors
Model: MB1452022

Motor frame sizes: 145
Rated Voltage: 333 V
Rated Torque: 22 Nm
Rated Power: 4.04 kW
Rated Current: 7.6 A
Nominal speed: 2000 rpm
Protection Class [IP]: 64
Rotational Mass Moment of Inertia: 2.1 kgm²
Angular: 209 S^-1
operating threshold: PTC
Feedback: 2-pole resolver
Flange: B5
Ambient Operating Temperature: -10°C… +40°C
