Sabo MTB.707.15 Touch Display Panel
Gebraucht
Auf Lager1 EinheitVersandbereit
Touch Display Panel
A versatile industrial HMI panel with CANopen master interface, multiple communication ports, and durable aluminium housing suitable for automation and control applications. (Note: The panel has damage.)
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

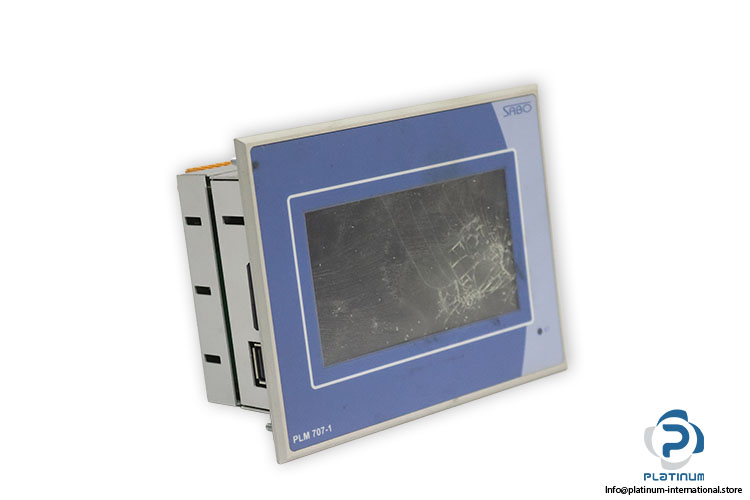

Sabo PLM 707-1 Touch Display Panel

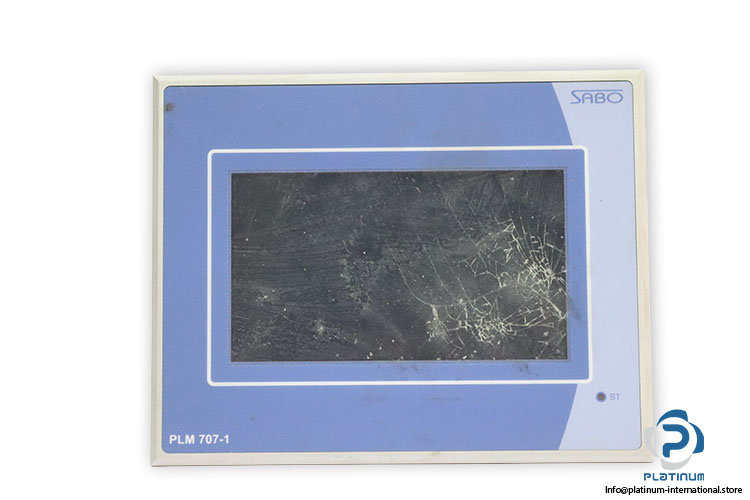

A compact and advanced touch display panel designed for industrial control, monitoring, and automation systems. Built with durable aluminium housing, multiple communication interfaces, and reliable processing performance. (NOTE: The panel has a broken section.) Manufacturer: Sabo
Type: Touch Display Panel
Model: PLM 707-1

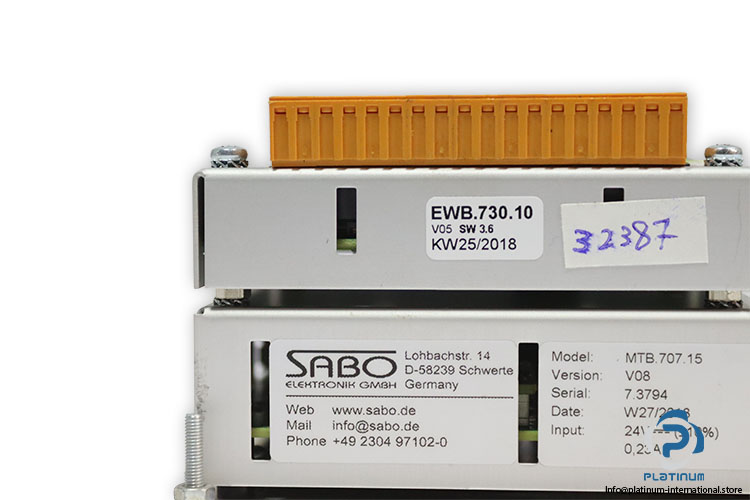

Art No.: MTB.707.15
Version: V08
Software Version: SW 3.6(V05)
Serial: 7.3794

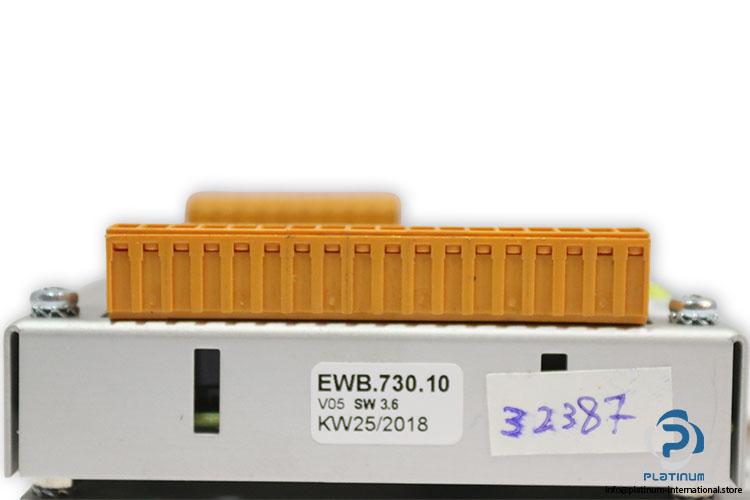

Code: EWB.730.10
Date Code: KW25/2018
| Display | 480 × 272 px |
| Supply Voltage | 24 VDC |
| CPU and Memory | ARM A9 i.MX28 450 MHz, 256 MB RAM, 4 GB Flash, 64 kB Ret |
| Interfaces | 1 × CAN (CANopen, Master), 2 × USB, 1 × Ethernet, 1 × RS232 (RX, TX) |
| Housing | Aluminium with foil front |
| Connections | Pluggable screw type terminals |
| Mounting | 4 bolts M3 |
| Seal | Round cord seal factory inserted in front panel |
| Protection | IP65 (front), IP20 (back) |
| Ambient Temperature | -5...+50 °C |
| Dimensions | 142.2 × 112.5 × 50 mm |
| Condition Note | There is a broken section in the panel |
