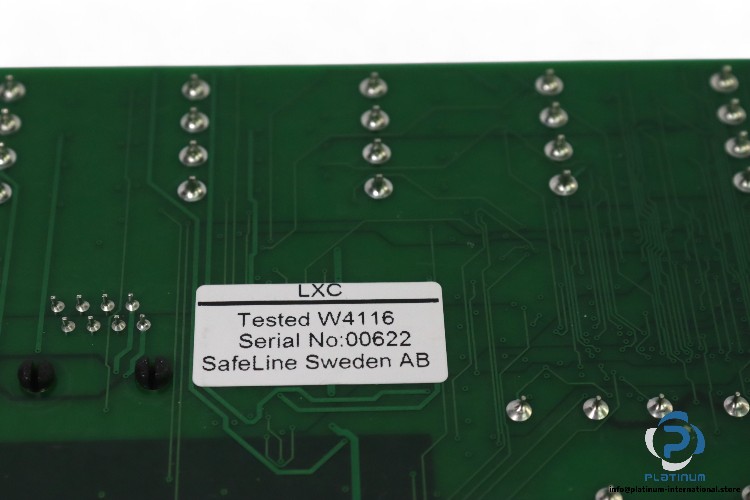

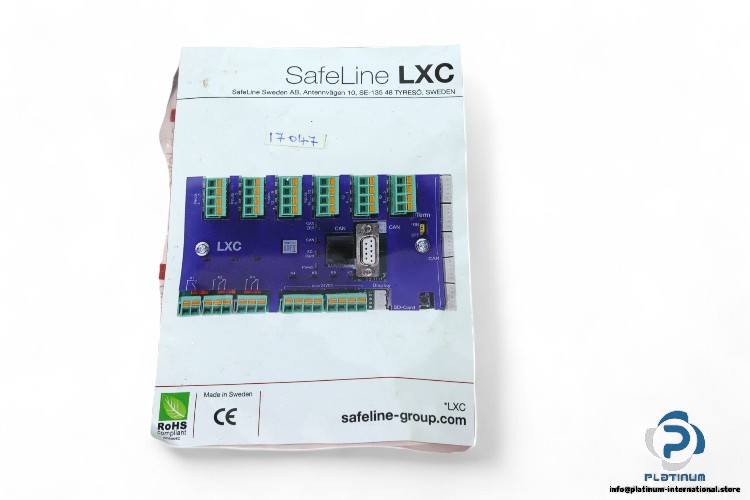

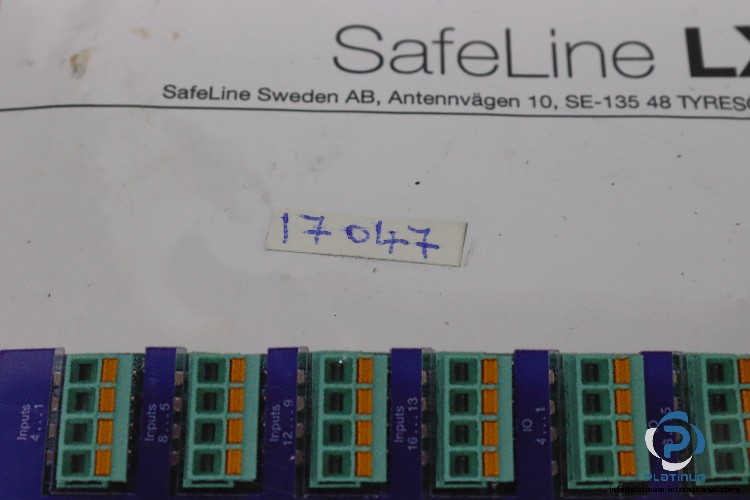

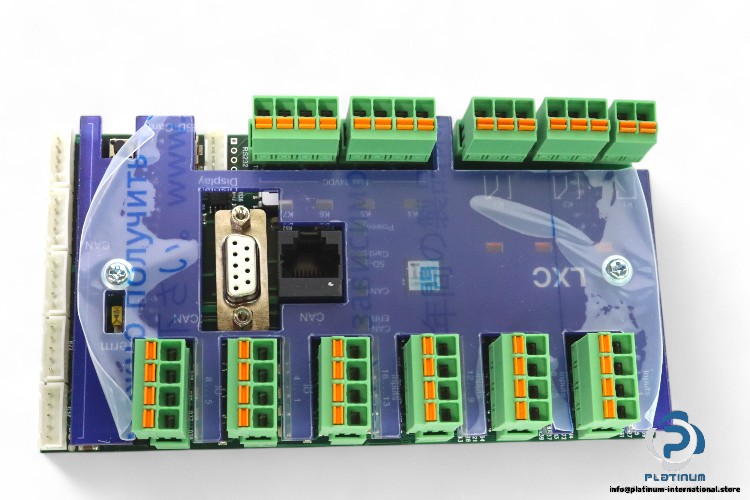

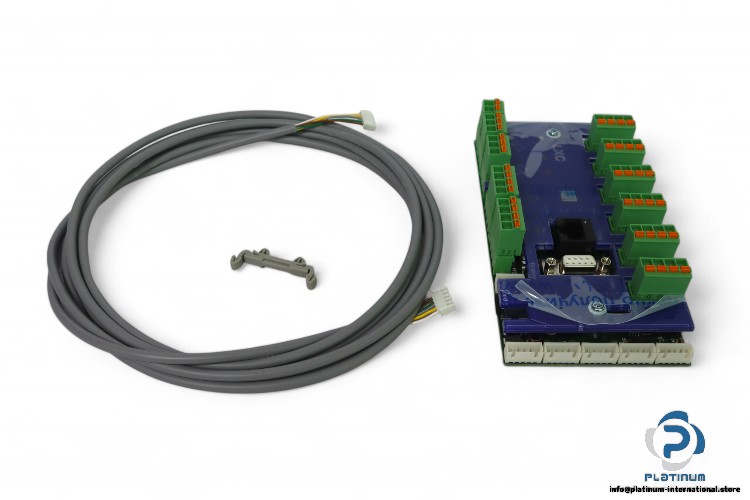

Safeline LXC CPU Board

Manufacturer: SAFELINE
Type: CPU BOARD
Model: LXC
Part no: 00035

Supply voltage: 19-28 VDC
Power output for the board: 1 A at 24 VDC, of which 120 mA goes to the board
Inputs: 16 pcs, 24 VDC, optically isolated.
I/O: 8 x 24 VDC, short-circuit protected, max 200 mA per I/O.
Relay outputs:
K1- N/O, max 250 VAC / 5 A.
K2-3 – Changeover, max 250 VAC / 5 A.
K4-7 – Electronic N/O, max 24 VDC / 200 mA.
Dimension (H x W x D): 150 x 80 x 43 mm
