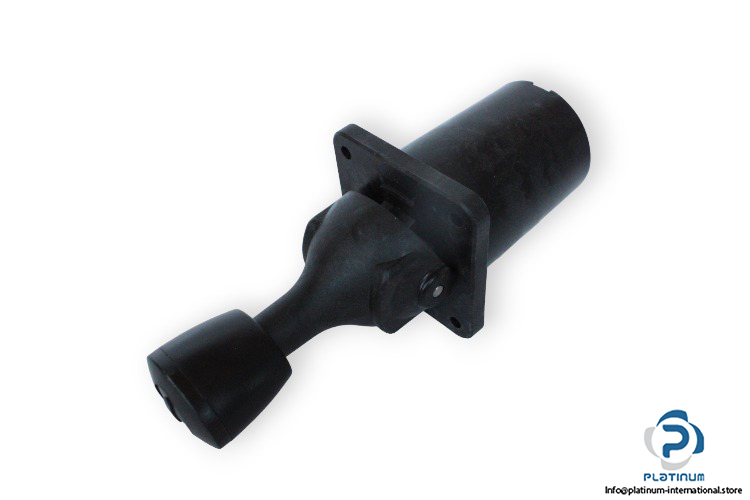

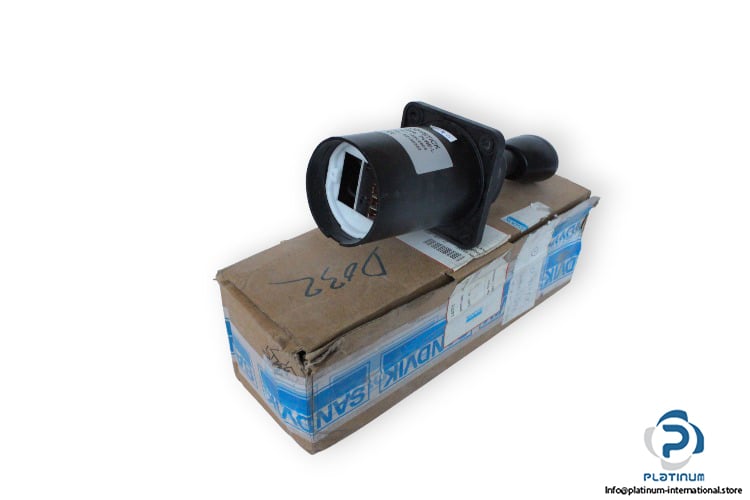

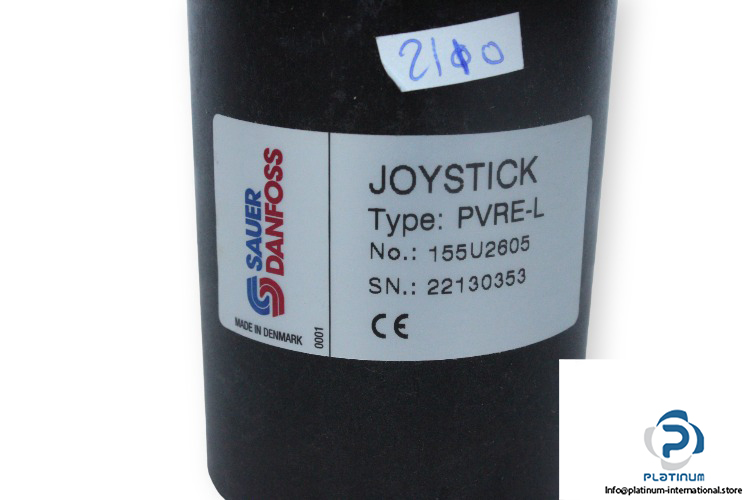

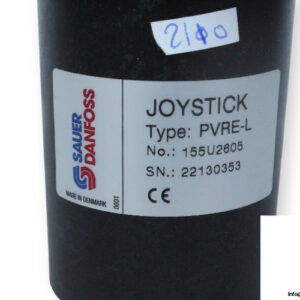

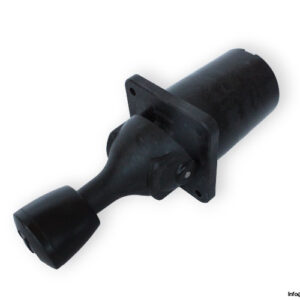

Sauer Danfoss Pvre-L Joystick

Manufacturer: Sauer Danfoss
Type: JOYSTICK
Model: PVREL

Supply voltage: 11 … 30 V DC
Output voltage: 0.25 … 0.75 V
Neutral voltage: 0.5 V
Signal current max.: @ 12 V ± (0,6 mA), @ 24 V ± (1,2 Ma)
Neutral position switch max. current: @12 V (2A), @24 V (1A)
Ambient temperature: -30 … 60°C
Current consumption: 80 mA
Max. force: 100 N
Protection Degree: IP 67
Variants: Contains four variants, These can be ordered with or without neutral position switch
Hold Function: Spring-centered withhold function
Proportional Function: The PVREL remote control levers contains a potentiometer for the control of one proportional function
