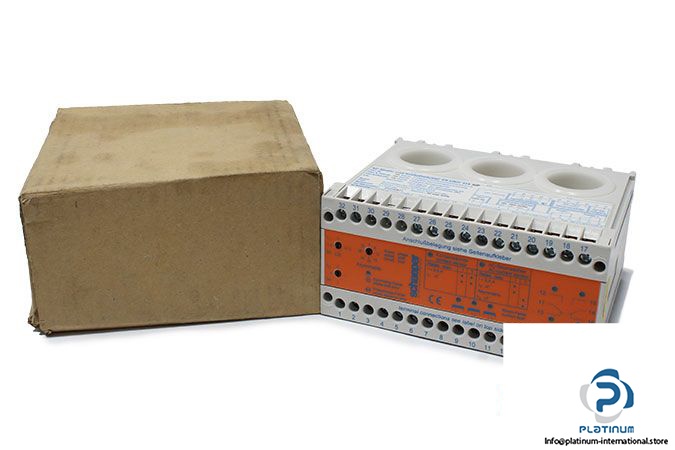

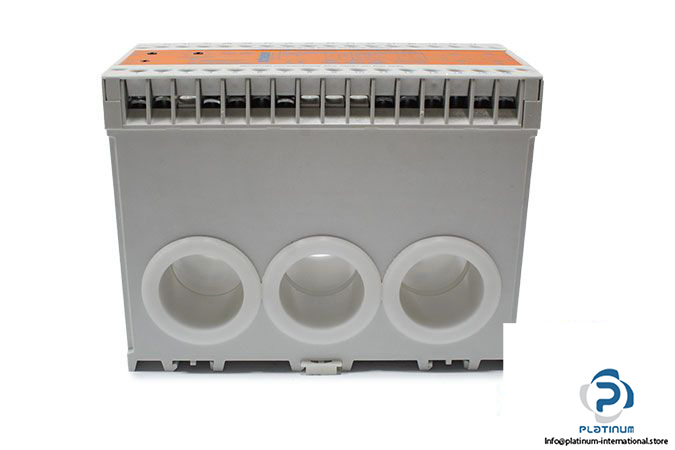

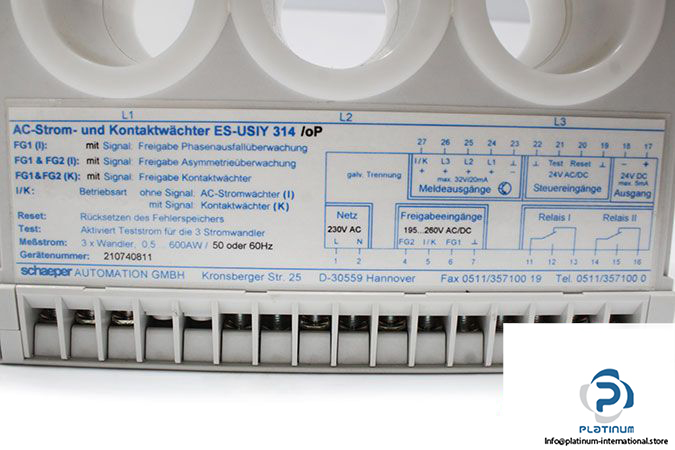

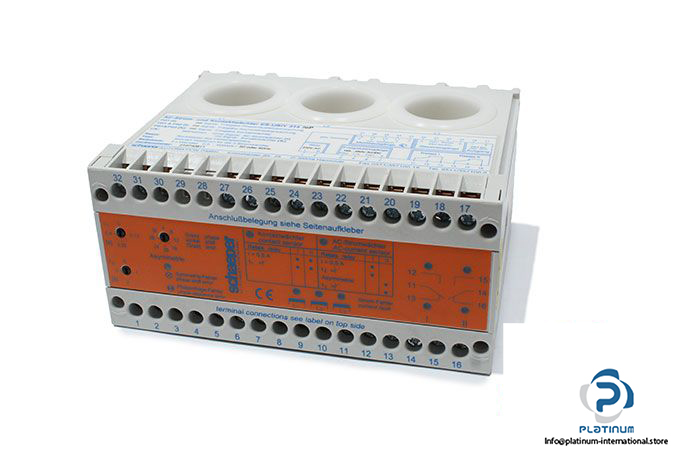

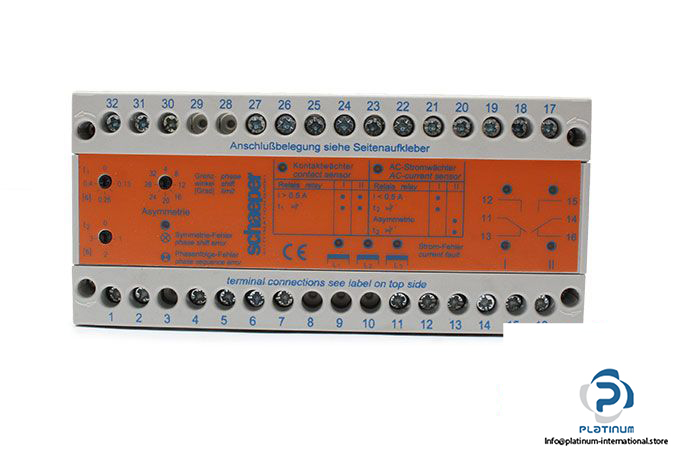

Schaeper ES-Usiy 314 AC Current AND Contact Sensor

Manufacturer: SCHAEPER

Type: Ac Current and Contact Sensor

Model: ES-USIY 314

Supply Voltage:

– 205 … 253 VAC; 50 … 60 Hz; 25 mA

– 103 … 127 VAC; 50 … 60 Hz; 50 mA

– 38 … 46 VAC; 50 … 60 Hz; 140 Ma

Current Transformer: IN = 0.5 … 600 AW, f = 35 … 500 Hz, inner dia.: 32mm

Current Asymmetry: Adjustable from 4 to 34 degrees

Relay Outputs: 1 changeover switch, 250V/5A AC, 30V/5A DC

Ambient Temperature: -10 … +50 °C

Dimensions: 152 X 118 X 73.3 mm

Weight: Approx. 1.1 Kg
