Schleicher NGZ 11 Time Relay

Schleicher NGZ11 Time Relay

The Schleicher NGZ11 Time Relay is a versatile and reliable device used for precise time delay applications in industrial automation. With a wide supply voltage range of 24 to 240 V AC/DC and an adjustable on-delay time, this relay ensures accurate time control and efficient operation in various systems.

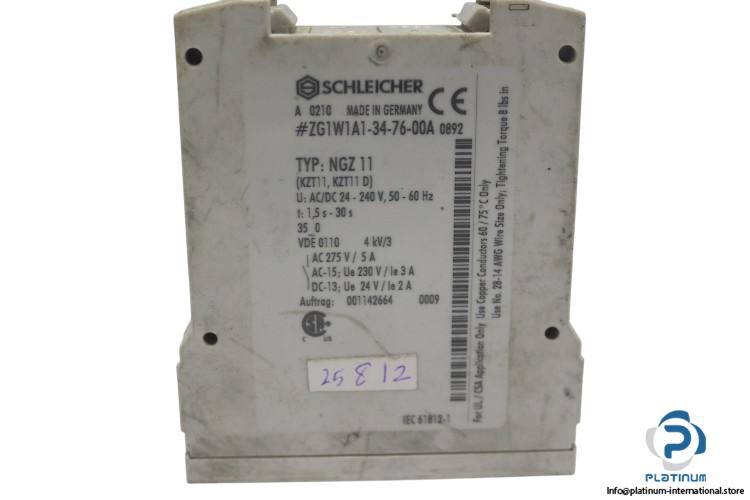

Manufacturer: SCHLEICHER

Type: Time Relay

Model: NGZ11

Part No.: ZG1W1A1-34-76-00A 0892

Ref No.: 001142664 0009

Technical Data:

• Supply Voltage: 24 / 240 V AC/DC
• Rated Frequency: 50 / 60 Hz
• Contact Assignment: 1 Change-over contact
• Contact:
  • AC-15: 230 V AC, 3 A
  • DC-13: 24 V DC, 2 A
• ON-Delay Time: 1.5 / 30 s
