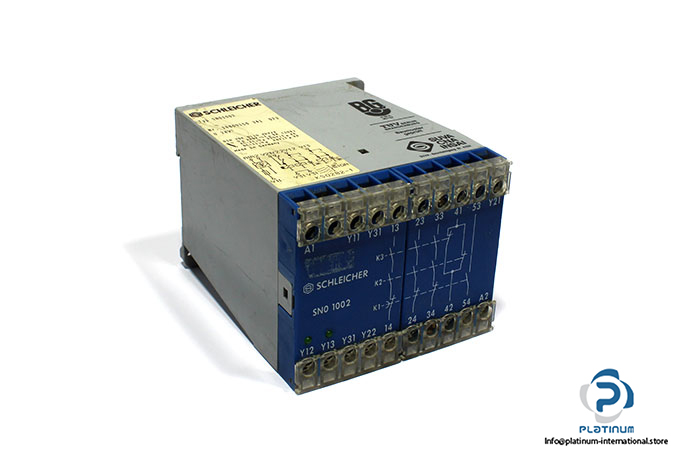

Schleicher SNO-1002 24V Emergency Stop Relay

Manufacturer: Schleicher
Type: Emergency Stop Relay
Model: SNO1002
Part No.: 18809150 341 073

Rated Voltage Ue: 24 V AC/DC
Nominal Voltage Un: 230 V AC
Nominal current In: 6 A (10 A)
Frequency: 50 … 60 Hz
Rated Impulse Withstand Voltage Uimp: 4 kV
Test Voltage Ueff: 2,21 kV
Switching Voltage:
AC 11: 230 V, 2 A
DC 11: 24 V, 2 A
Contacts: 3 Normally Open Safety Contact (NO), 1 Normally Open fleeting contact (NO), 1 Normally Close Control Contact (NC)
Protection Degree Housing/Terminals: IP 40/IP 20
Ambient Temperature: -25 … + 55 °C
Dimensions: 100 x 90 x 75 mm
