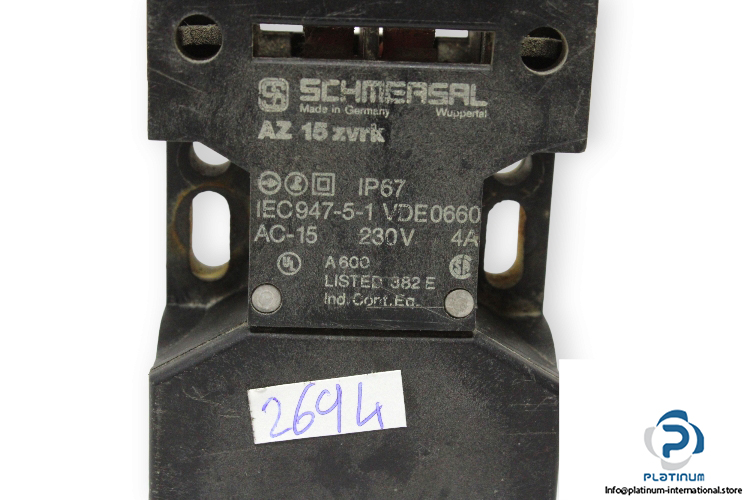

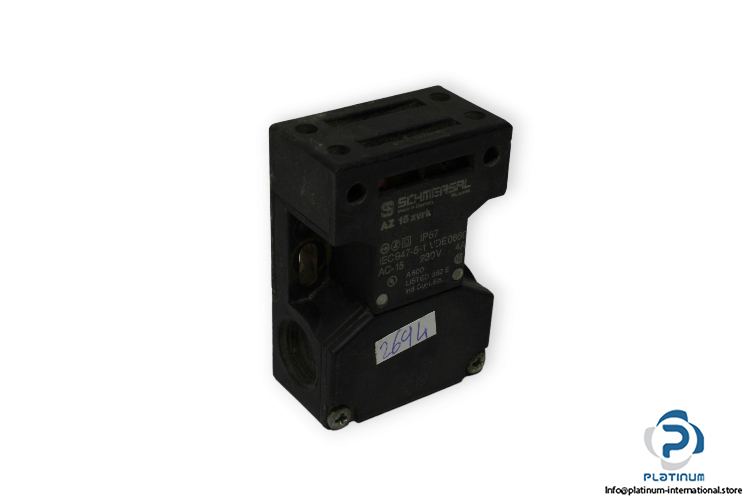

Schmersal AZ 15ZVRK Safety Switch

Manufacturer: Schmersal
Type: Safety switch
Model: AZ 15ZVRK

Rated operating voltage Ue: 230 V
Rated operating current Ie: 4 A
Rated impulse withstand voltage Uimp: 6 kV
Rated insulation voltage Ui: 500 V
Thermal test current Ith: 10 A
Latching force: 30 N
Actuator: stainless steel 1.4301
Contact type: 1 Normally closed contact
Contact material: Silver
Connection: Screw-type
Ambient temperature: -30 … +80 °C
Degree of protection: IP67
Enclosure: glass-fibre reinforced thermoplastic, self-extinguishing
Dimensions: 75 x 52 x 30 mm
