Schmersal AZ 16 ZVR Interlock Switch
Gebraucht
Auf Lager2 EinheitenVersandbereit
Interlock Switch
Industrial safety interlock switch with NO and NC contacts, IP67 protection, and robust thermoplastic housing for machine guarding applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

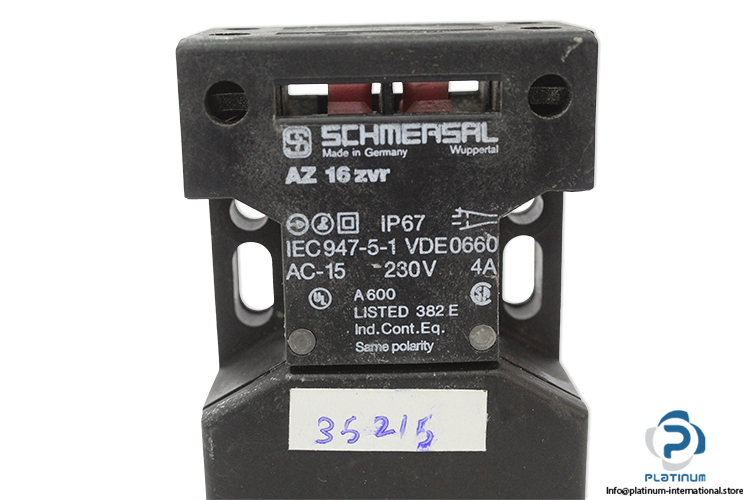

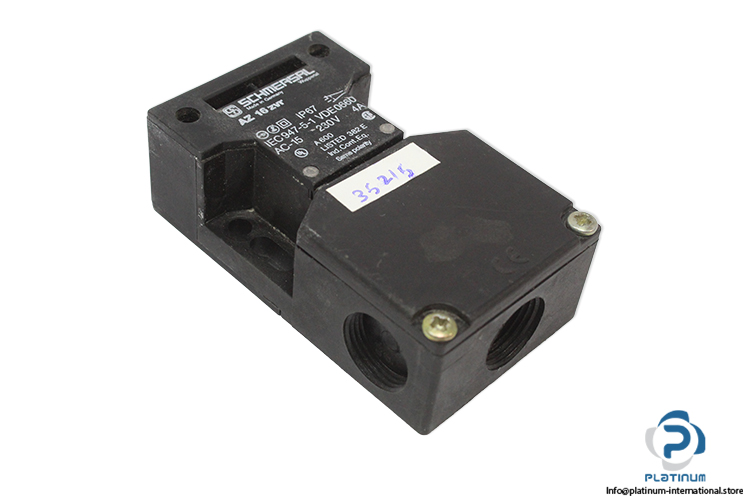

SCHMERSAL AZ 16 ZVR Interlock Switch
The SCHMERSAL AZ16ZVR interlock switch is a robust safety switching device designed for position monitoring and machine guarding applications. Built for harsh industrial environments, it provides reliable switching performance, high protection rating, and long service life.
Manufacturer: :contentReference[oaicite:0]{index=0}
Type: Interlock Switch
Model: AZ 16 ZVR
Series: AZ16
| Rated Voltage | 230 V AC |
| Current Rating | 4 A |
| Contacts | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Head Directions No. | 3 |
| Material | Glass Fiber Reinforced Thermoplastic |
| Protection Class | IP67 |
| Ambient Temperature | -30 / 80 °C |
| Dimensions | 52 x 90 x 30 mm |
