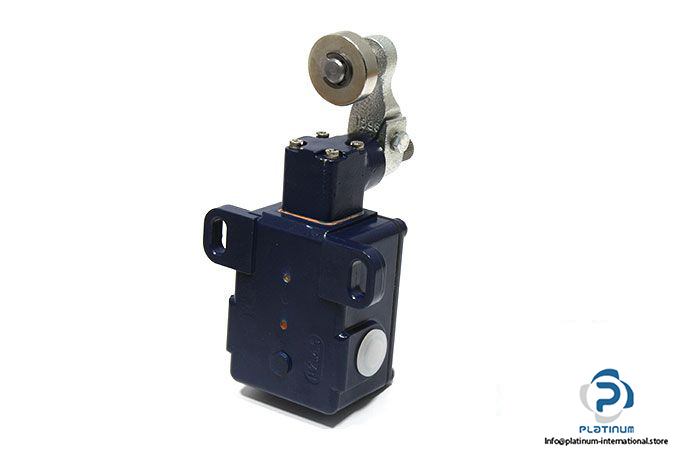

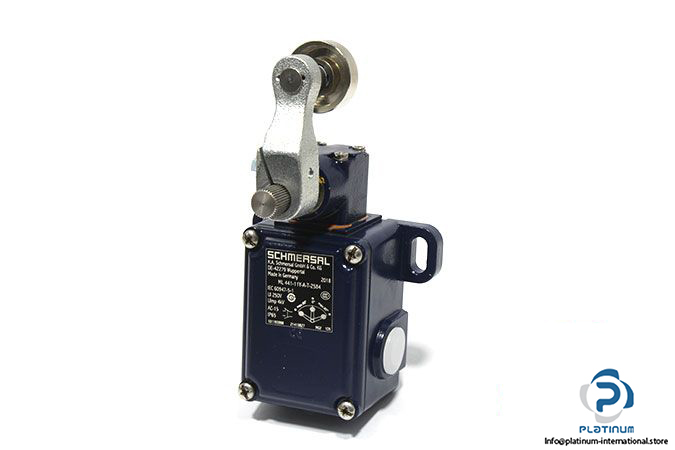

Schmersal ML 441-11Y-A-T-2584 Position Switch

Manufacturer: Schmersal ‎

Type: Position switch

Model: ML 441-11Y-A-T-2584

Part No.:  101193998

Switching Element: Normally Open/Normally Closed

Rated impulse withstand voltage: U_imp 4 kV

Rated insulation voltage: U_i 250 V

Thermal test current: I_the 16 A

Utilization category: AC-15: 250 V / 4 A

Actuating speed: 1 mm/min … 3 m/s

Active Principle: mechanical

Design of actuating element: Roller lever

Bounce duration: ≤ 5 ms

Switchover time: ≤ 35 ms

Contact opening: 2 x 2.5 mm

Roller Diameter: 36 mm

Dimensions: LxWxH 63x106x192 mm

Protection class: IP65

Suffixes:

T: Temperature-resistant and tropical version with ceramic insulation for -40°C … +200°C Rated insulation voltage Ui: 500 V (Snap action)

A: Aluminum enclosure

Weight: 1.2 kg
