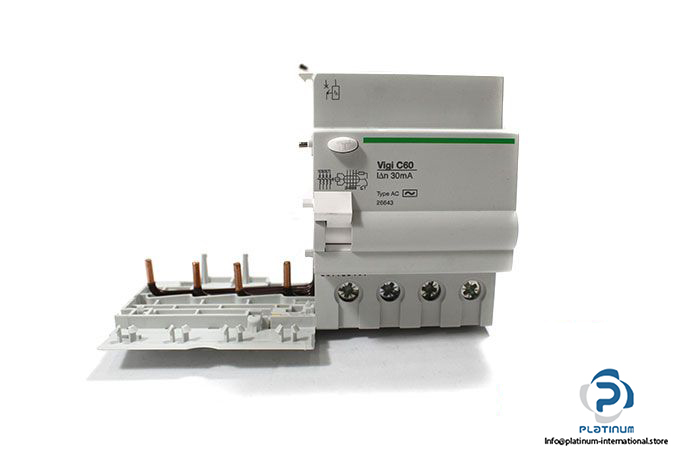

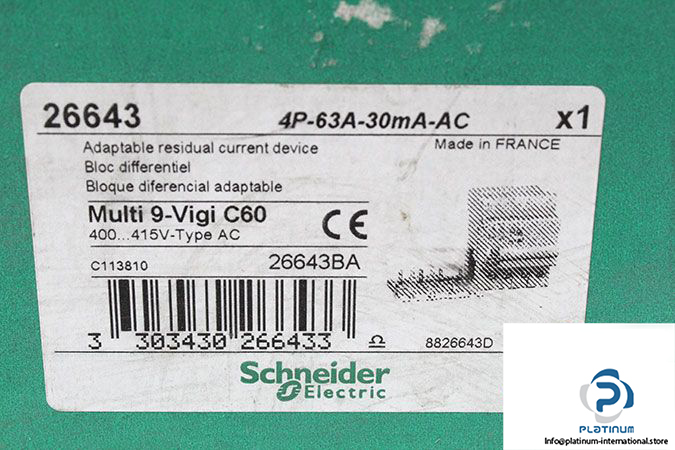

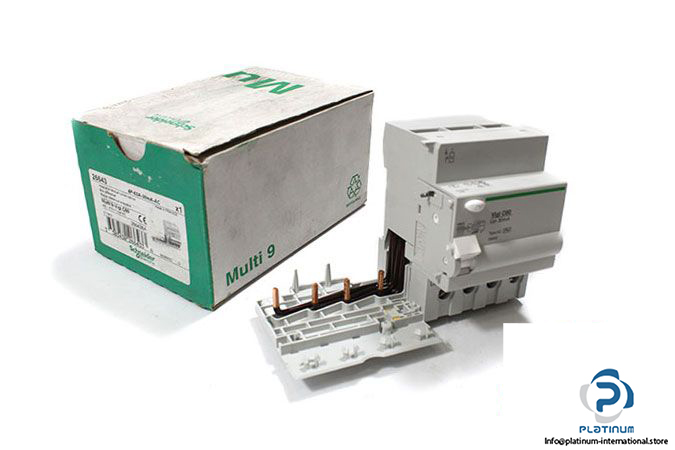

Schneider 26643 Earth Leakage ADD-ON Block

Manufacturer: SCHNEIDER ELECTRIC

Type: Earth Leakage Add-On Block

Model: 26643

Rated Operational Voltage: 220 … 415 V AC

Rated Current: 63 A

Device Short Name: Vigi C60

No of poles: 4P

Earth-Leakage Sensitivity: 30 mA

Rated Insulation Voltage: 500 V

Rated Impulse Withstand Voltage: 6 kV

Connections – Terminals:

Tunnel type terminals 0.5…25 mm² flexible

Tunnel type terminals 0.5…35 mm² rigid

Wire Stripping Length: 14 mm

Tightening torque: 3.5 N.m

Operating Altitude: 2000 m

Relative Humidity: 95 % at 55 °C

Dimensions ( height x width x depth ): 87 x 135 x 74 mm

Frequency: 50/60 Hz

Operating Temperature: -5 … 60 °C

Weight: 0.30 kg
