Schneider 845-5001-000 Electro-Mechanical Actuator
Neu
Auf Lager1 EinheitVersandbereit
Elektromechanischer Stellantrieb Schneider MZ20B-24 mit 24 VAC Versorgung, 200 N Schubkraft, 5,5 mm Hub und IP43 Schutz, ausgelegt für Floating-Steuerung mit VZ*19* Zonenventilen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

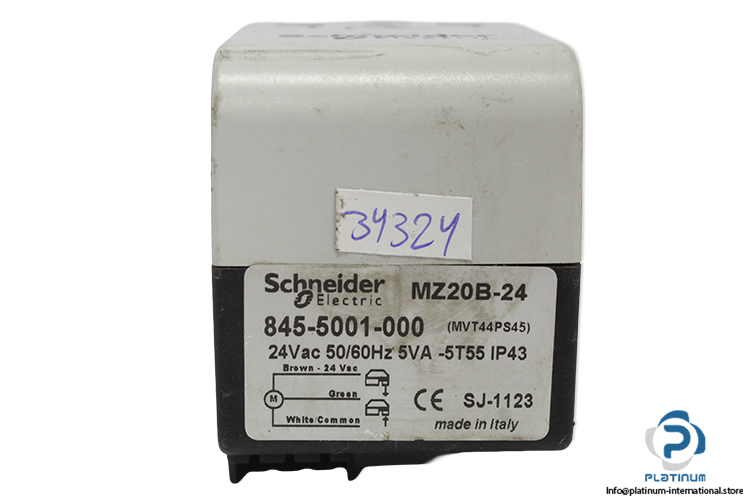

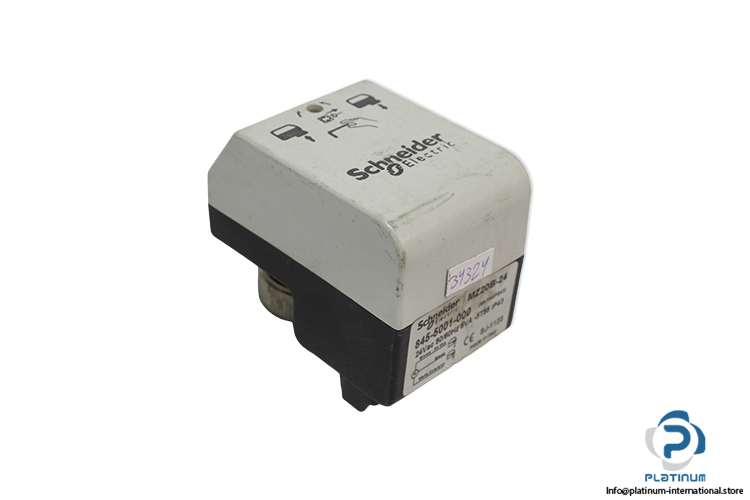

Schneider MZ20B-24 Electro-Mechanical Actuator
The Schneider MZ20B-24 is a precision electro-mechanical actuator designed to provide floating increase/decrease control in HVAC and zone valve applications. It is specifically engineered to operate together with VZ*19* zone valves, ensuring accurate positioning and reliable performance.
Manufacturer: Schneider
Type: Electro-Mechanical Actuator
Model: MZ20B-24
Part No.: 845-5001-000
Code: SJ-1123
Series: MZ20B
| Designed Function | Floating Increase / Decrease Control With VZ*19* Zone Valves |
| Input Voltage | 24 VAC 50/60 Hz |
| Power Consumption | 5 VA |
| Speed | 18 s/mm |
| Working Temperature | -5 to 55°C |
| Humidity | Max. 95% Non-Condensing |
| Stem Force | 200 N |
| Max Stroke | 5.5 mm |
| Connection Cable | 3 Wires, 1.5 m |
| Sound Power Level | 35 dBA |
| Protection Class | IP43 (For Vertical Mounting) |
| Dimensions | 76.5 x 50 x 67.5 mm |
