Schneider 9007-AW-12 Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Limit Switch
The Schneider 9007-AW-12 limit switch features a cast zinc rotary head, snap action NC-NO contacts, and is rated up to 15 A, suitable for industrial surface mounting.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

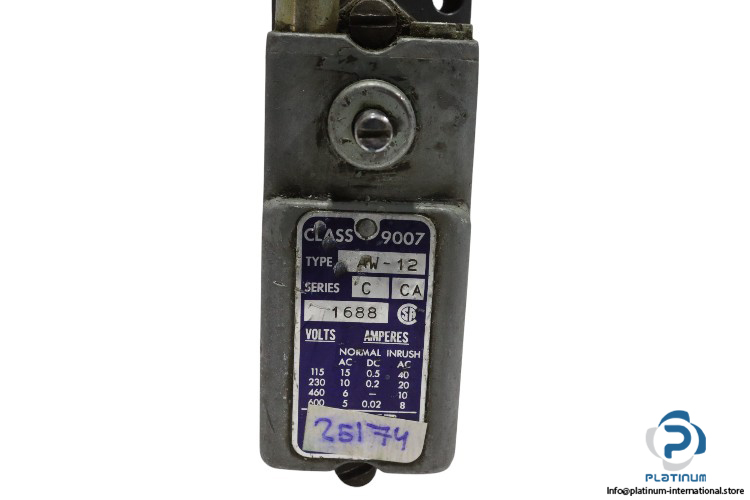

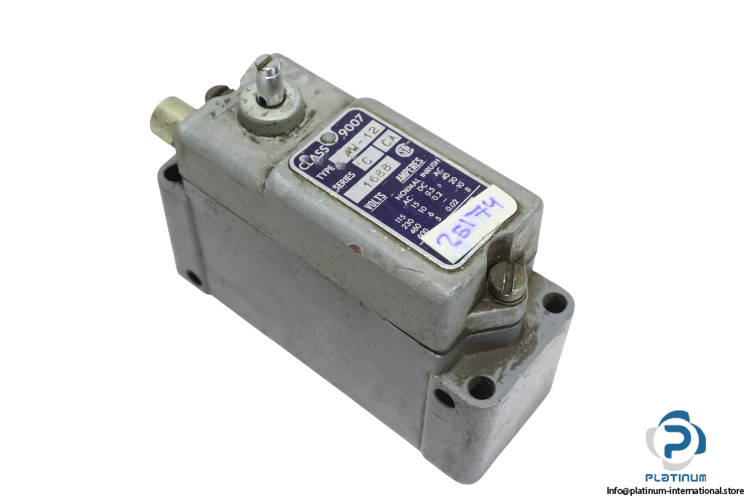

Schneider 9007-AW-12 Limit Switch
The Schneider 9007-AW-12 Limit Switch is a rugged industrial switch with snap-action contacts and a cast zinc rotary head design. Rated for both AC and DC applications, it provides reliable operation with up to 15 A thermal current and features IP65 protection for harsh environments. Ideal for surface mounting and mechanical actuation.
Manufacturer: Schneider
Type: Limit Switch
Model: 9007-AW-12
Rated Operational Current (Ie):
15 A at 120 V AC
10 A at 240 V AC
6 A at 480 V AC
5 A at 600 V AC
0.5 A at 125 V DC
0.2 A at 250 V DC
0.02 A at 600 V DC
| Thermal Current (Ithe) | 15 A |
| Mounting Mode | Surface mounting, standard box |
| Operator Profile | Rotary head |
| Body Material | Cast zinc |
| Type of Operator | Cast zinc spring return, no operating lever |
| Contact Configuration | NC-NO |
| Contact Operation | Snap action |
| Degree of Protection | IP65 |
