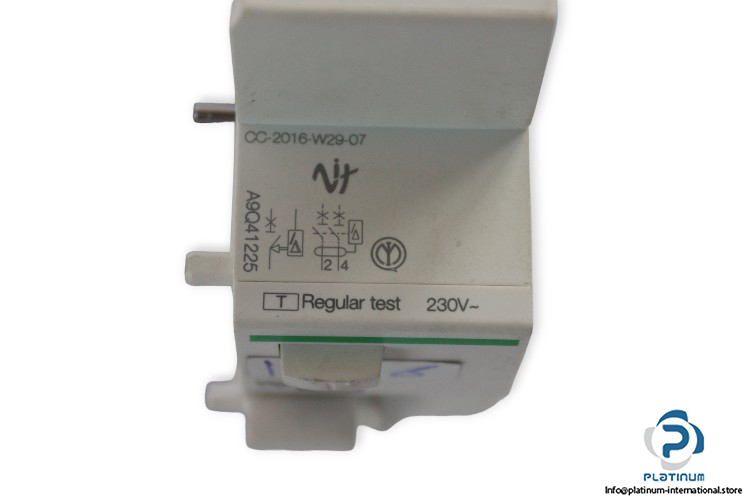

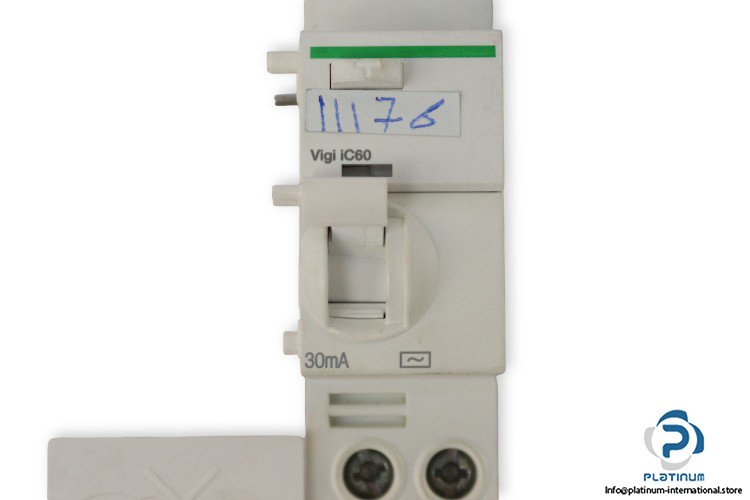

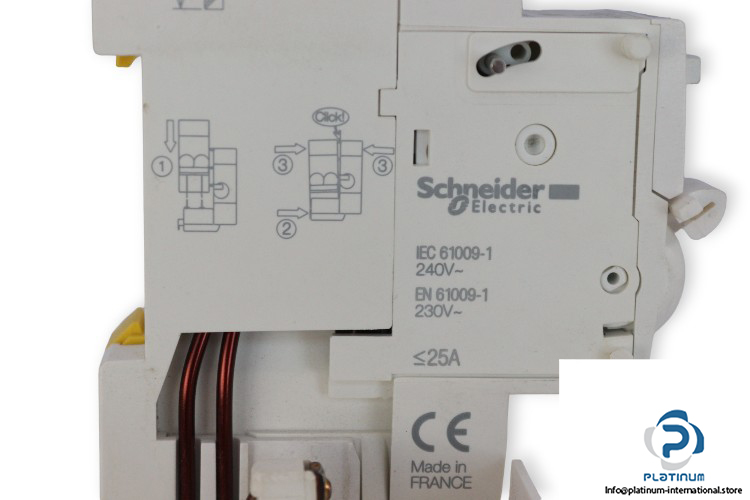

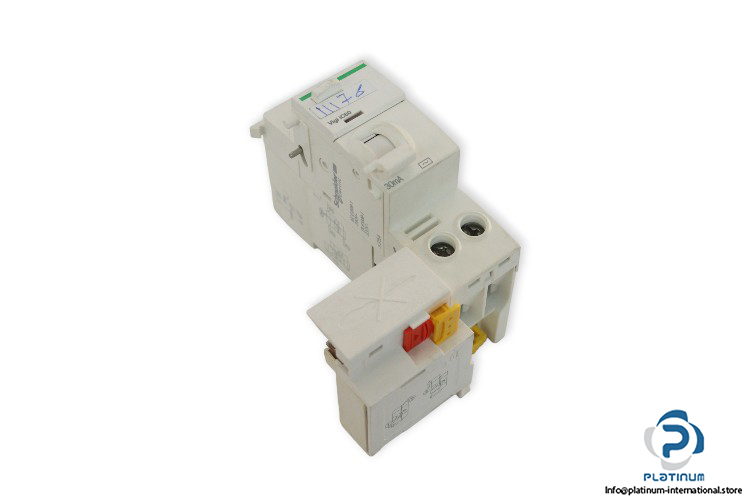

Schneider A9Q41225 Earth Leakage Module
Manufacturer: SCHNEIDER
Type: Earth Leakage Module
Model: A9Q41225
Alternative Model: CC2016W2907
Short Name: Vigi iC60
Rated Operational Voltage: 230 … 240 V AC
Rated Current: 25 A
Earth-Leakage Sensitivity: 30 mA
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 500 V AC
Poles No.: 2-Pole
Protection Class: IP20
Temperature: -25 … 60 °C
Dimensions: 91 x 27 x 73.5 mm
