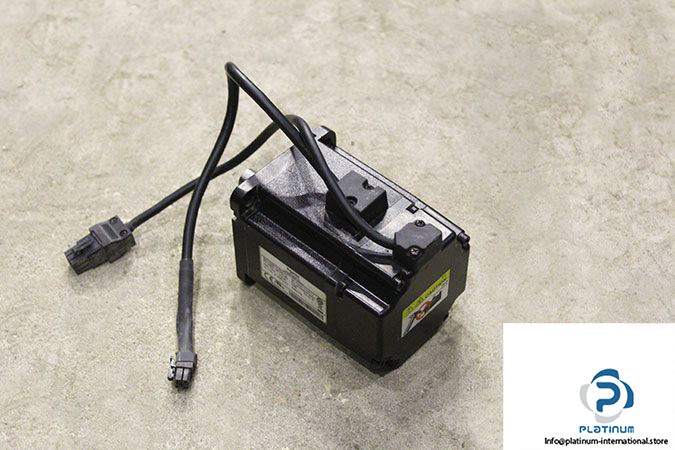

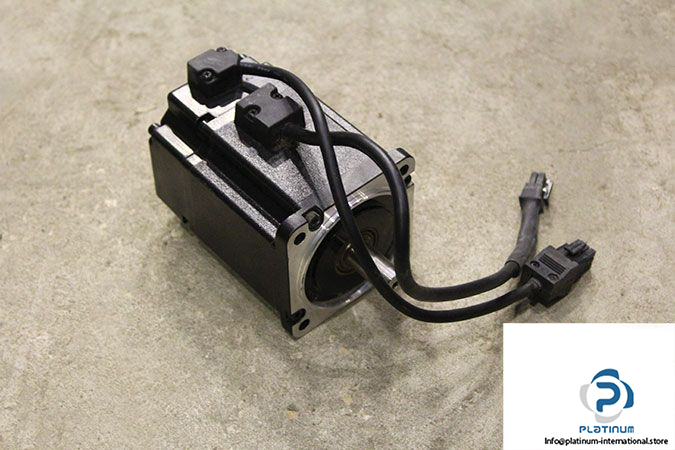

Schneider BCH0801O22A1C Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
311,11$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

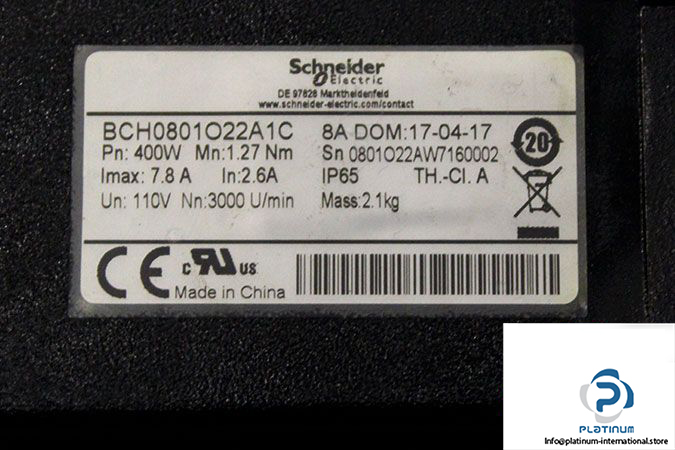

Manufacturer: Schneider Electric, Elau
Type: Servo Motors
Model: BCH0801O22A1C
Serial No.: 0801O22AW7160002
Rated Torque [Nm]: 1.27
Rated Current [A]: 2.6
Max Current [A]: 7.8
Rated Voltage [V]: 110
Rated Power [W]: 400
Torque Constant [N.m/A]: 0.49
Rated Speed [rpm]: 3000
Max Speed [rpm]: 5000
Shaft End: Smooth Shaft
Flange Size [mm]: 80
Shaft Diameter [mm]: 14
Shaft Length [mm]: 24.5
Protection Class [IP]: 65
Thermal Class: A
Weight [kg]: 2.22
